173
Adjustment Procedures
1. Screw, Skid (2)
2. Ribbon
3. White Nylon Washer
4. Screw, Retaining (2)
2
4
1
Left Ribbon Guide
Right Ribbon Guide
3
1
Early
Models
Later
Models
2
4
3

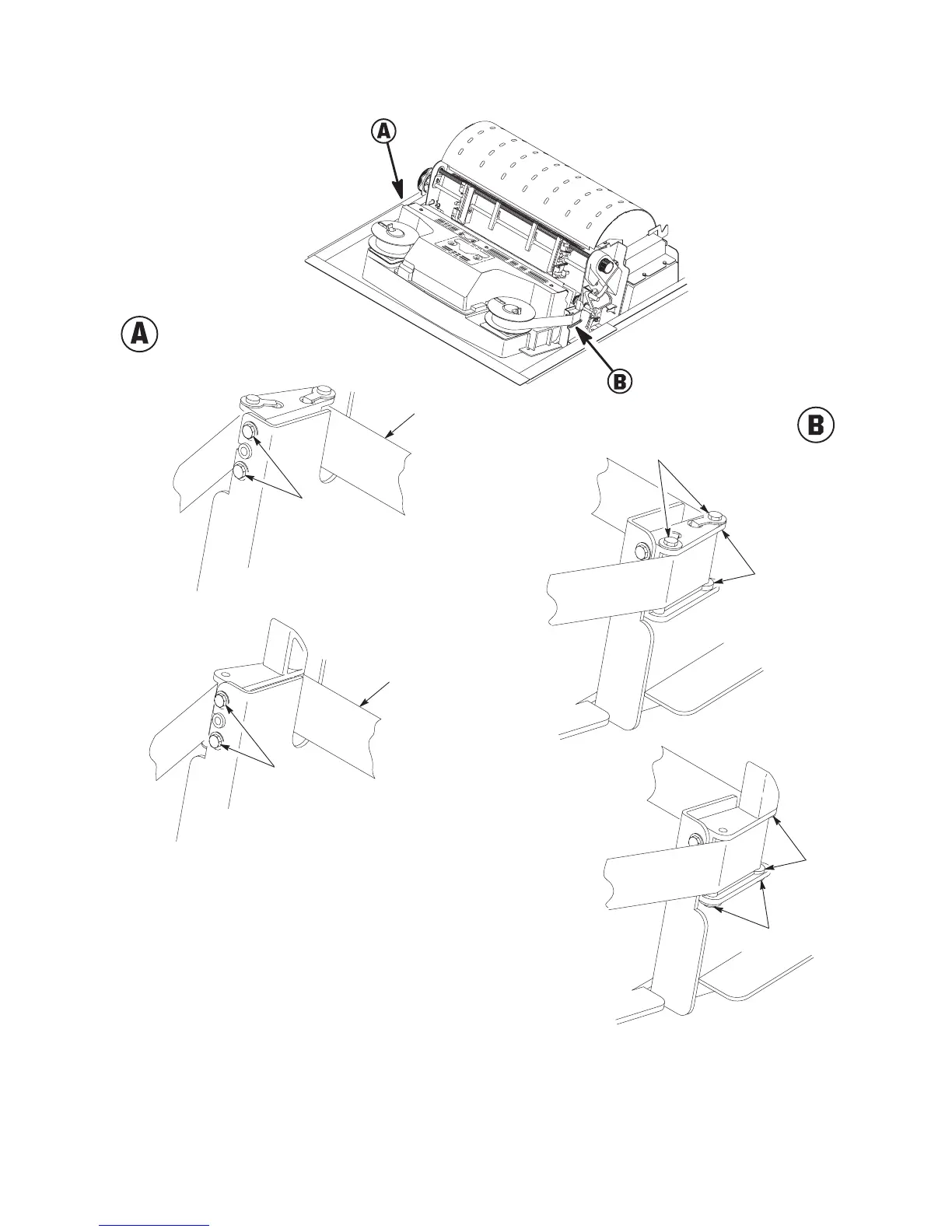

Figure 27. Ribbon Guide Alignment
