376 Noise Suppression Devices
Ferrite Core
Control Panel Cable Assembly
Parallel I/O Cable Assembly
Connector
Shielding Bead
P110
Connector
P310
Connector
J203
Connector
P112
with Clamp and
Adhesive Backing
NOTE: Two turns
around each bead.
NOTE: This core
attaches to right
rear card cage wall.

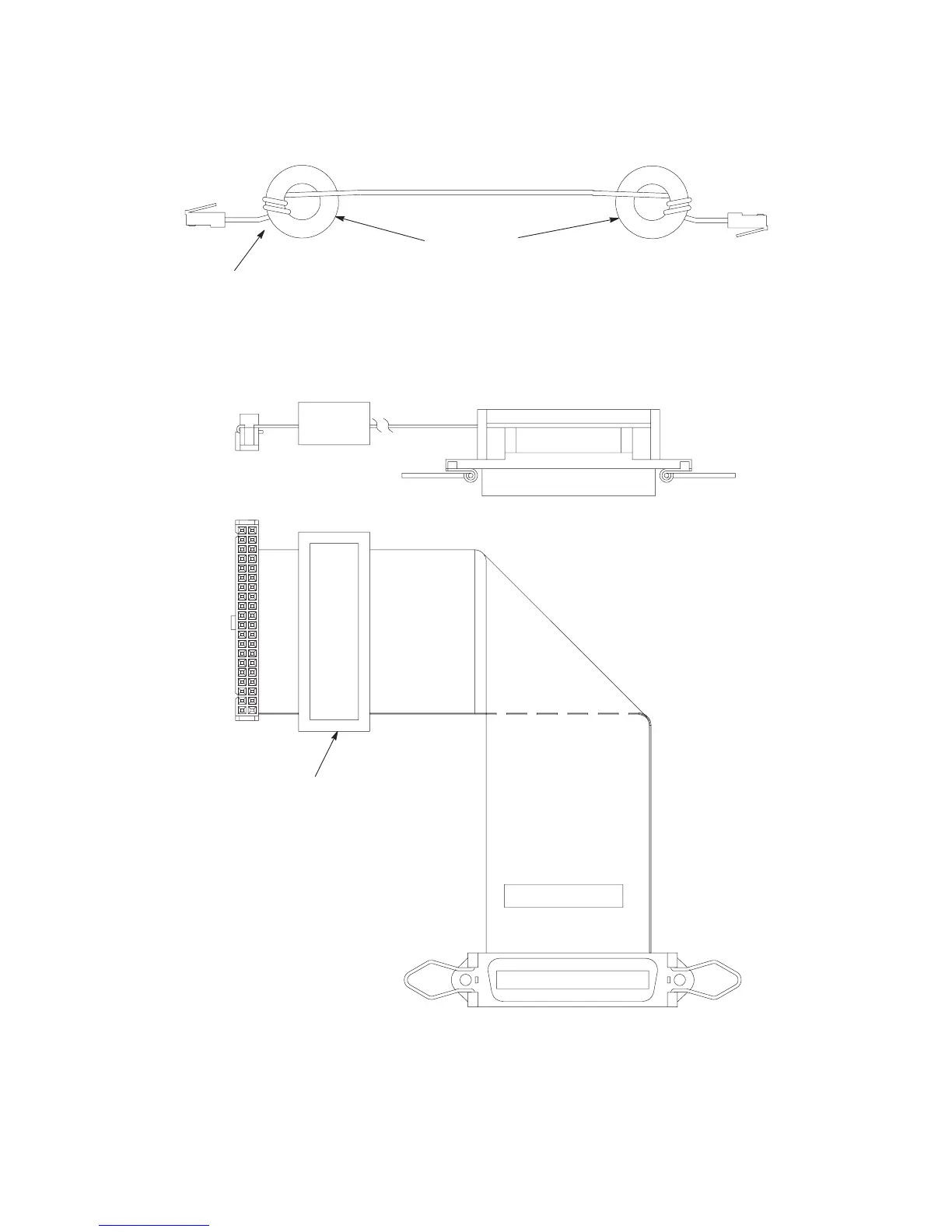

Figure 56. Ferrite Core Installation
