376 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

8.1 Advanced host administration

This section describes advanced host administration, including host modification, host

mappings, and deleting hosts. Basic host creation and mapping are described in Chapter 5,

“Host configuration” on page 199. We assume that hosts are defined and volumes are

mapped to them.

The following topics are covered in this section:

򐂰 Modifying hosts, as described in 8.1.1, “Modifying volume mappings” on page 378

򐂰 Ports by host, as described in 8.2, “Adding and deleting host ports” on page 395

򐂰 Host mappings, as described in 8.2, “Adding and deleting host ports” on page 395

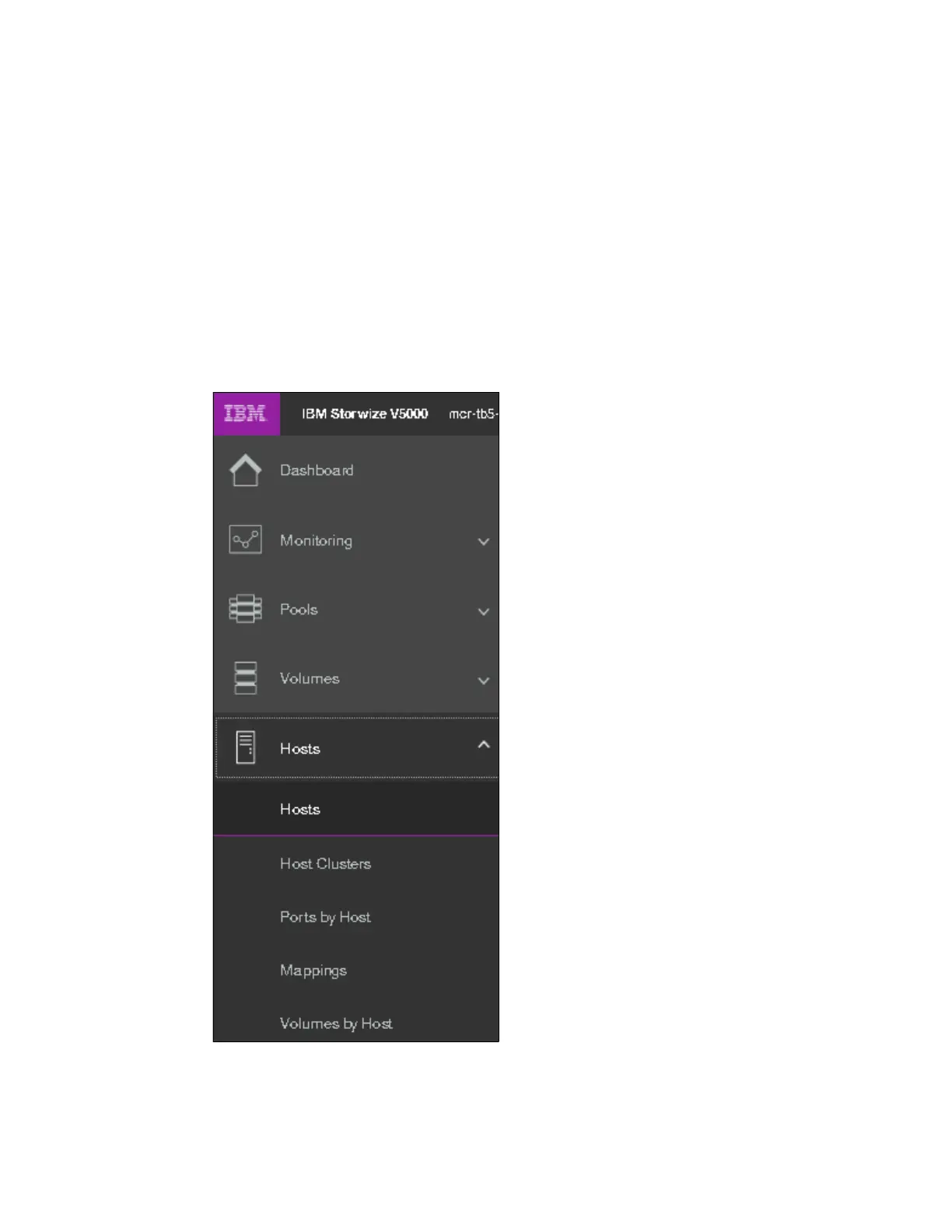

The top-level Hosts menu is shown in Figure 8-1.

Figure 8-1 Hosts menu
