Setting up the uninterruptible power supply with an extended battery
module
Note: Two sets of pedestals and two extended battery module brackets are
required for this tower configuration.
To set up the uninterruptible power supply with an extended battery module in a
tower configuration, complete the following steps:

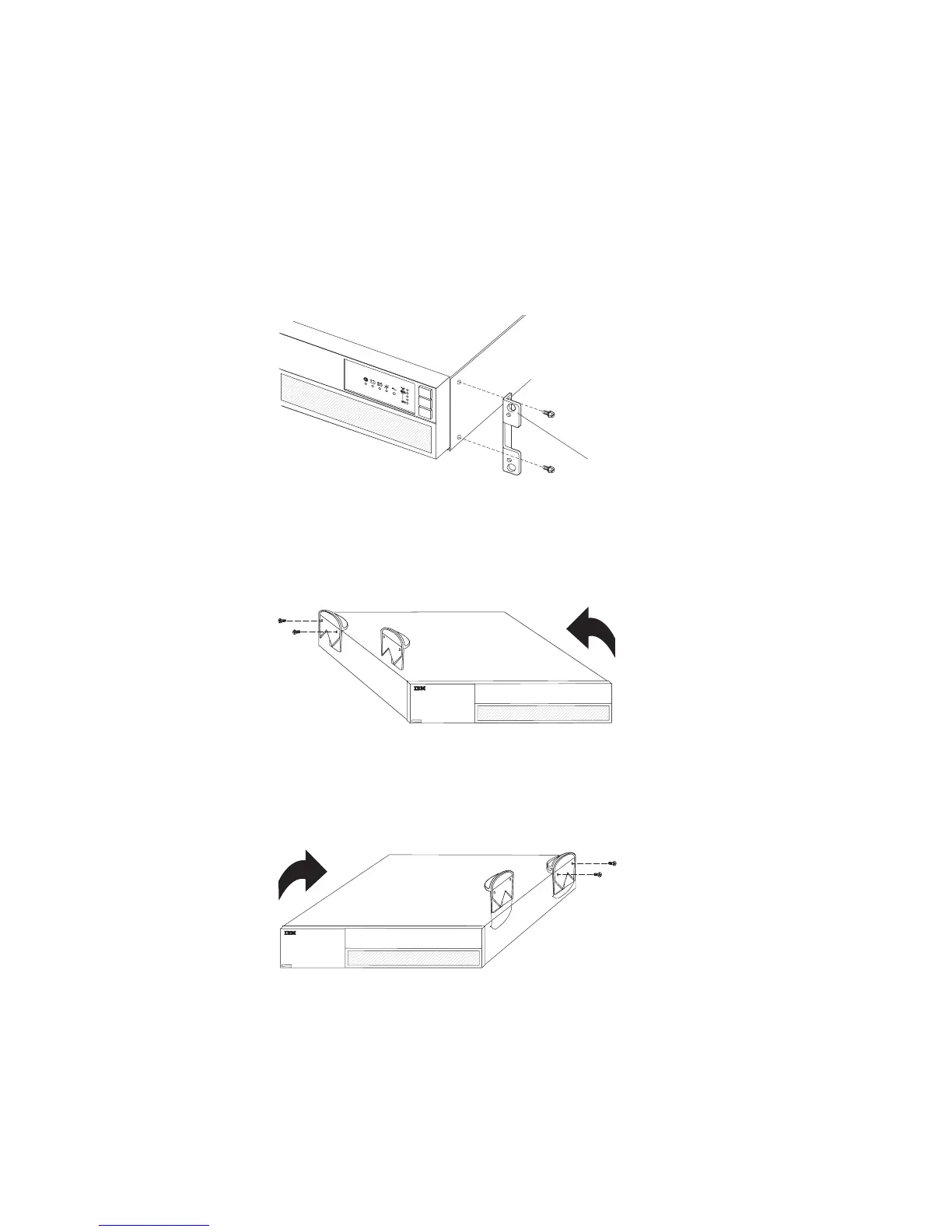

1. Unscrew and remove the mounting brackets on both sides of the uninterruptible
power supply and the extended battery module.
Mounting
bracket
2. Place the uninterruptible power supply chassis horizontally so that the left end
of the unit is accessible (see the illustration in step 3).
3. Position two of the pedestals over the edge of the chassis so that the weight of
the unit is evenly distributed. Secure the pedestals with the 6-32 x 3/8” flat-head
screws that come in the accessory kit.
4. Place the extended battery module chassis upside down so that the right side of
the unit is accessible (see the illustration in step 5).
5. Position two of the pedestals over the edge of each chassis so that the weight
of the unit is evenly distributed. Secure the pedestals with the 6-32 x 3/8-inch
flat-head screws that come in the accessory kit.
8 UPS 3000 LV and UPS3000 HV: Installation and Maintenance Guide
