To set up the uninterruptible power supply with two or more extended battery
modules in a tower configuration, complete the following steps:

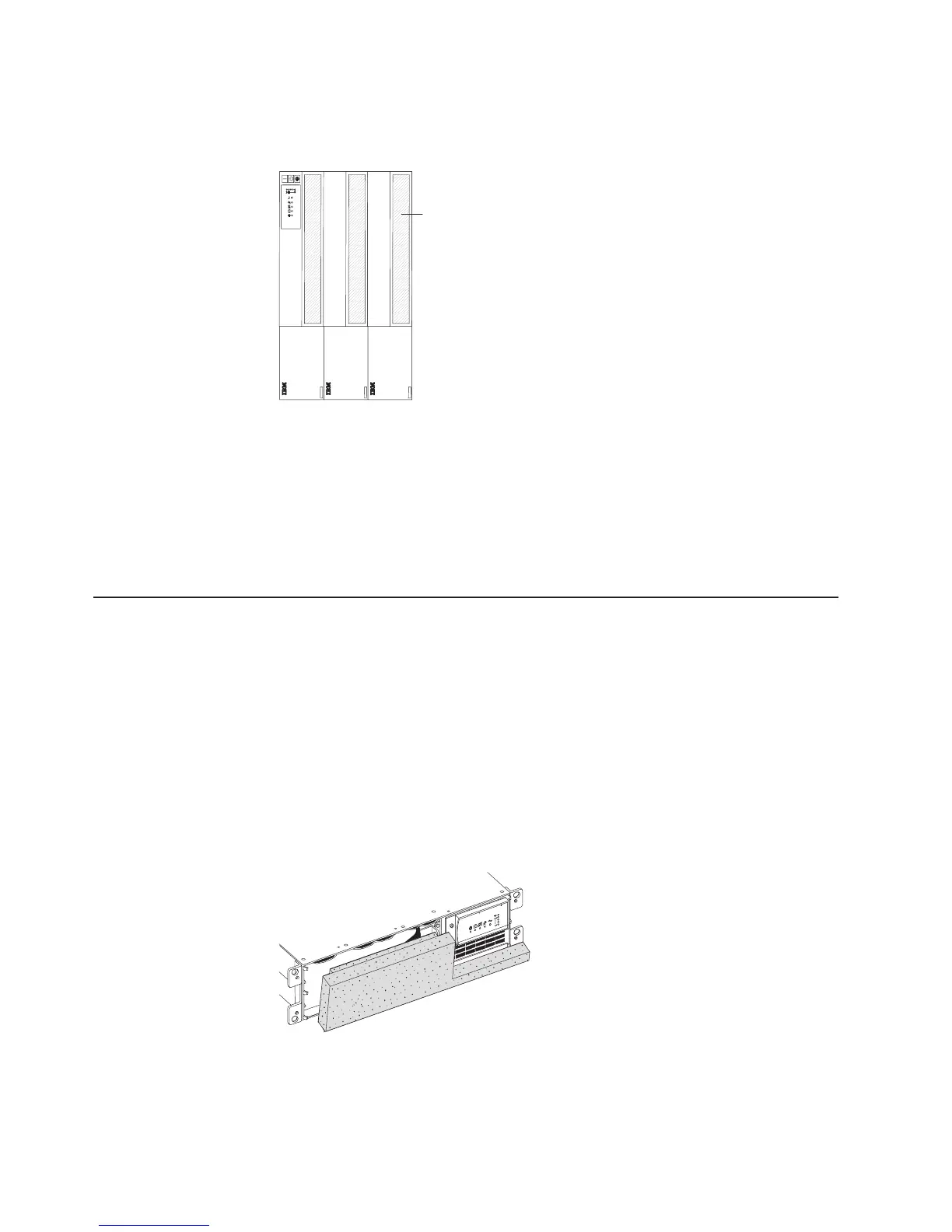

1. Carefully position the chassis upright so that the air vents are at the top.
Air vents
2. Attach the extended battery module brackets to the top of the uninterruptible
power supply and extended battery modules:
a. Align each extended battery module bracket with the adjacent corner screw
holes in the uninterruptible power supply and extended battery module.
b. Install the other extended battery module brackets so that each extended
battery module is connected together.
c. Secure the brackets with the screws that come with the extended battery
module.
Connecting the internal battery
Important:
v Check the battery recharge date on the shipping carton label. If the date has
expired and the batteries were never recharged, do not use the uninterruptible
power supply. Contact your service representative.
v Connect the internal battery after you install the uninterruptible power supply in a
rack cabinet or in a tower configuration.
To
connect the internal battery, complete the following steps:
1. Make sure that the uninterruptible power supply is turned off and the power
cords are disconnected.
2. Remove the packing material from the front of the uninterruptible power supply.
10 UPS 3000 LV and UPS3000 HV: Installation and Maintenance Guide
