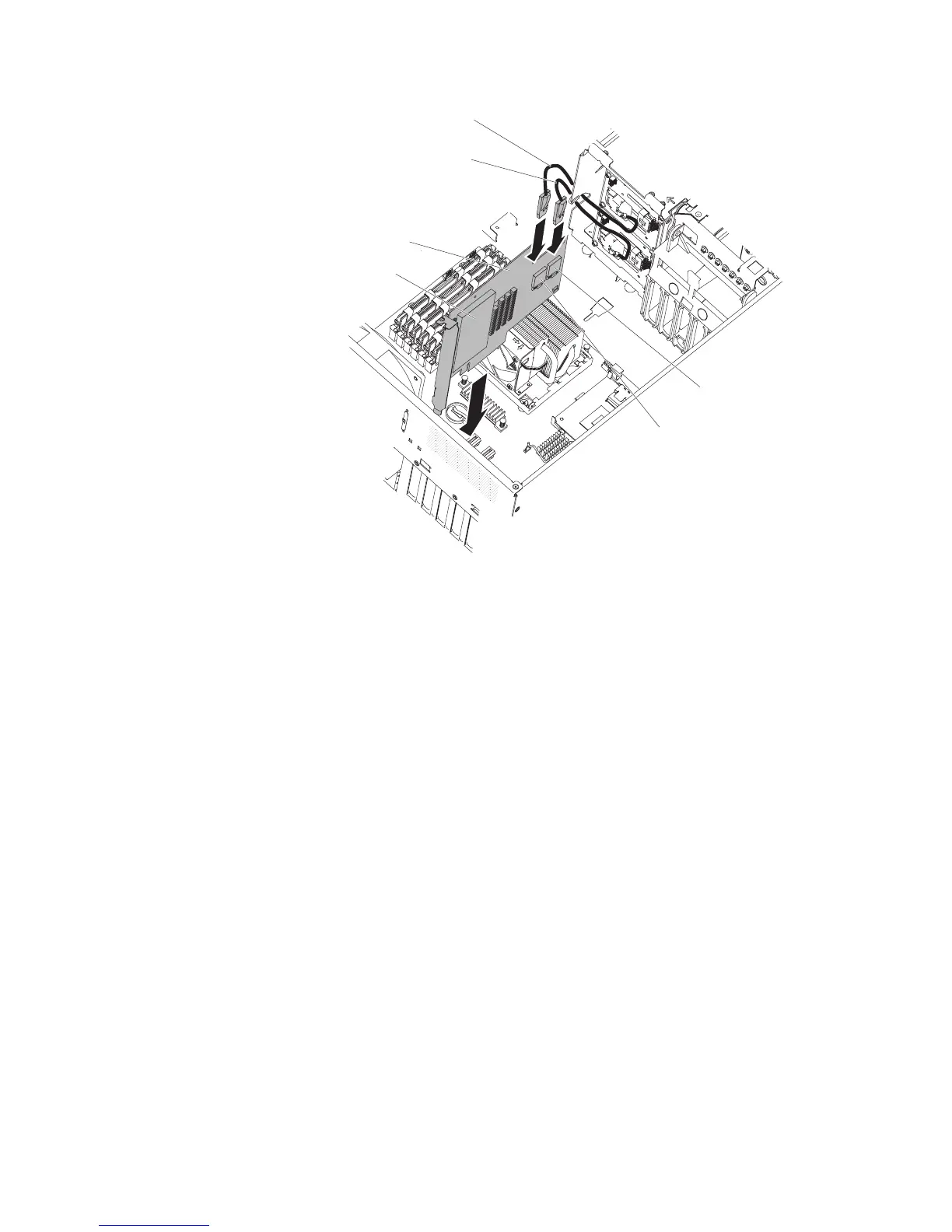

Hard disk drive cable 0 - 3
Hard disk drive
cable connector 0 - 3
Hard disk drive cable 4 - 7
Hard disk drive
cable connector 4 - 7
Battery
ServeRAID-MR10i
SAS/SATA controller
Removing an optional ServeRAID-MR10is VAULT SAS/SATA controller
To remove a ServeRAID-MR10is SAS/SATA adapter, complete the following steps:
1. Read the safety information beginning on page vii, and “Installation guidelines”
on page 141.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external cables. Remove the side cover (see “Removing the side cover” on
page 145).
3. Rotate the rear adapter-retention bracket to the open (unlocked) position.
4. Open the rear retention bracket.
5. Disconnect any cables connected to the adapter.
Attention: To avoid breaking the retaining clips or damaging the
ServeRAID-MR10is adapter connector, open and close the clips gently.
6. Carefully grasp the end of the ServeRAID adapter and pull it out of the
connector.
7. If you are instructed to return the adapter, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Installing an optional ServeRAID-MR10is VAULT SAS/SATA Controller
The optional IBM ServeRAID-MR10is VAULT SAS/SATA controller can be installed
in either PCI slot 1 or slot 2 on the system board. The ServeRAID-MR10is adapter
is supported on hot-swap server models only. The IBM ServeRAID-MR10is
SAS/SATA adapter with an encryption 1078 DE chip set enables integrated RAID
levels 0, 1, 5, 6, and 10 support capability on hot-swap hard disk drives. For
configuration information, see the documentation on the ServeRAID CD that comes
with the adapter.
Chapter 5. Removing and replacing server components 177
