System-board LEDs

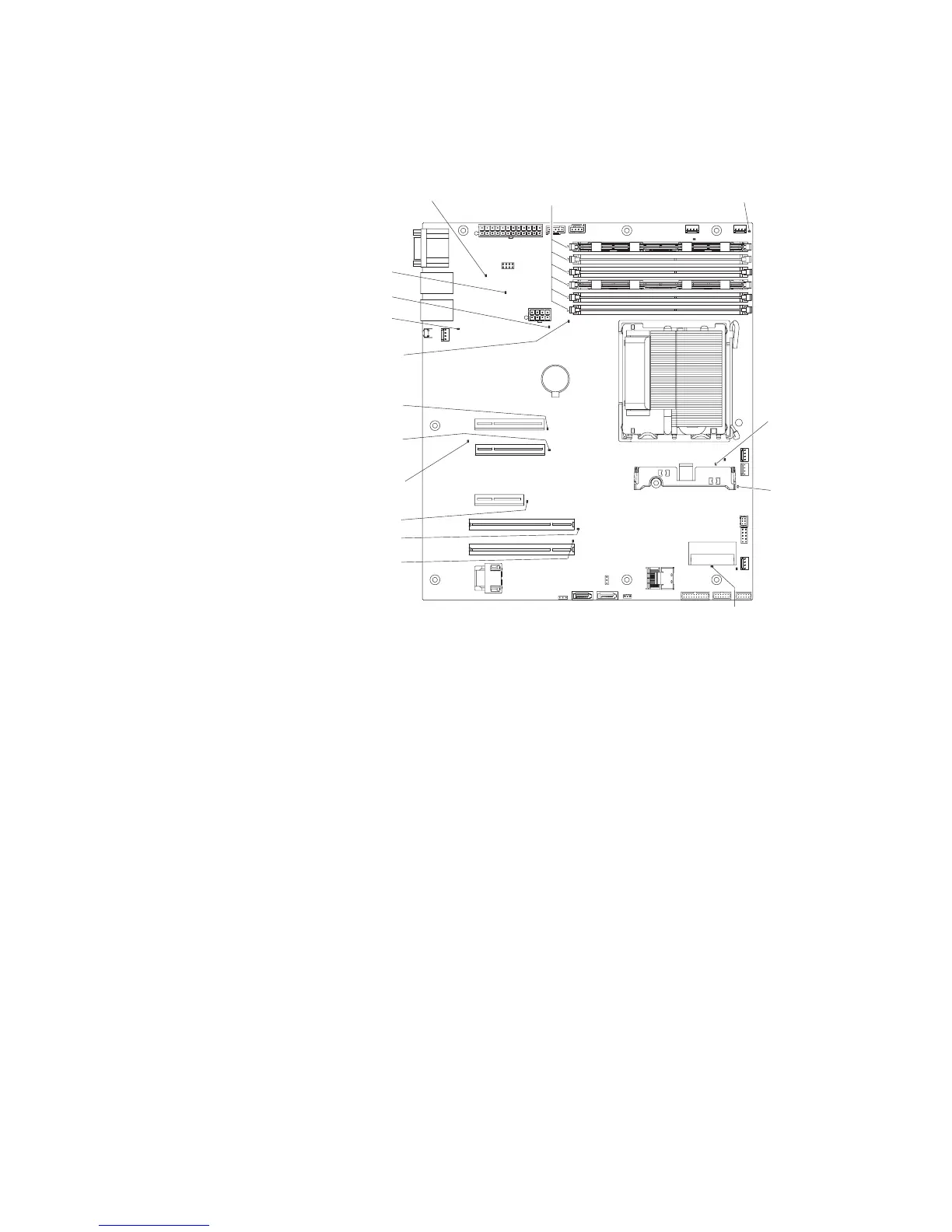

The following illustration shows the LEDs on the system board.
H8 Heartbeat
LED
Microprocessor
fan error LED
SAS/SATA Controller
error LED
PCI Express
slot 2 error LED
CPU error
LED
DIMM 1 - 6
error LEDs
System board
error LED
Standby
power LED
HDD fan
error LED
IMM heart
beat LED
PCI Express
slot 1 error LED
Battery error LED
Slot 3 error LED
Slot 4 error LED
Slot 5 error LED
System fan error LED
Chapter 2. Introduction 19
