ACCESSORIES AND INSTALLATION
11

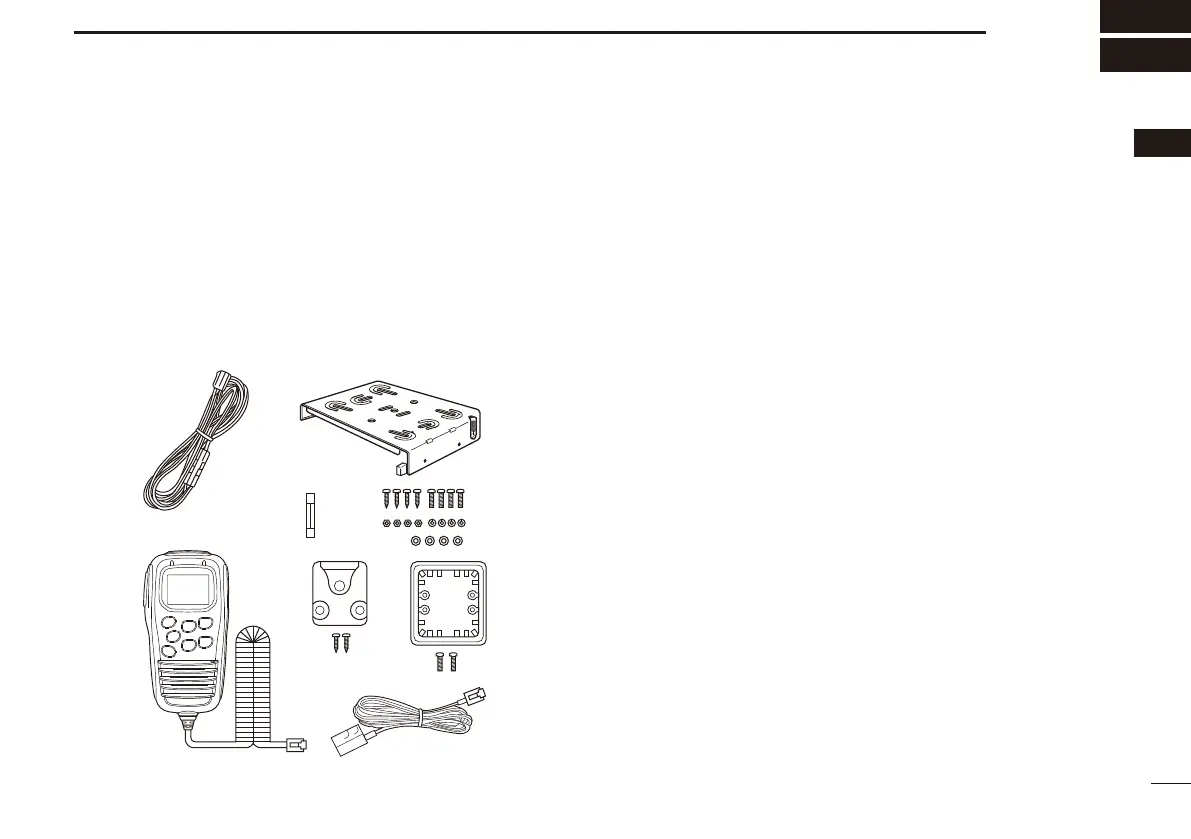

Supplied accessories ■
q DC power cable (3 m) ····················································· 1
w Mounting bracket ···························································· 1
e Microphone (HM-182) ····················································· 1
r Fuse (FGB 10 A) ····························································· 1
t Mounting screws, nuts and washers ························· 1 set
y Microphone hanger set ··················································· 1
u Microphone hanger attachment plate ····························· 1
i OPC-647 extension cable (2.5 m) ··································· 1
qw
e
r
y
u
i
t
Installation and Connection ■
Location D
Select a location which can support the weight of the trans-
ceiver and does not interfere by driving. We recommend the
locations shown in the diagram on page 2.
NEVER place the transceiver or microphone where normal
operation of the vehicle may be hindered or where it could
cause bodily injury.
NEVER place the transceiver or microphone where air bag
deployment may be obstructed.
DO NOT place the transceiver or microphone where hot or
cold air blows directly onto it.
DO NOT place the transceiver or microphone in direct sun
light.
To Next Page
