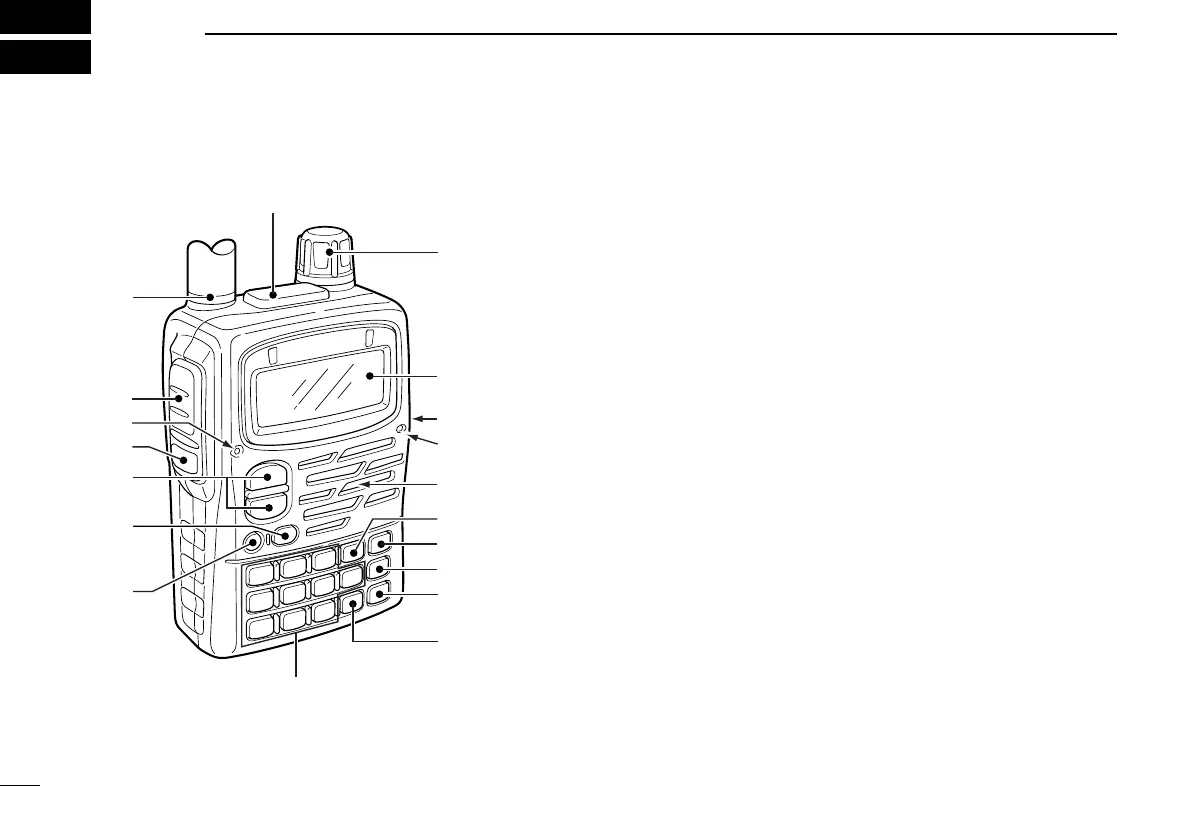

■ Panel description
q POWER SWITCH [PWR]
Push for 1 sec. to turn the transceiver power ON and OFF.
w BAND SWITCH [BAND]
➥ Push to select the operating band (50MHz, Air, VHF,
UHF, etc.). (p. 21)
➥ Push to select the memory bank or push to proceed the
memory name cursor while programming the memory
option. (pgs. 39, 41)
➥ Push for 1 sec. for morse code synthesizer announce-
ment. (p. 75)
➥ While pushing [PTT], this key sends a DTMF “D”.
e UP/DOWN SWITCHES [Y]/[Z]
➥ Push to adjust the audio level by default. (p. 17)
➥ Push to adjust the frequency when [Y]/[Z] and [DIAL]
are exchanged by pushing [1 V↔D] for 1 sec. (p. 23)
r MONITOR SWITCH [SQL] (p. 22)
➥ Push and hold to temporarily open the squelch and
monitor the operating frequency.
➥ While pushing, rotate the tuning dial to set the squelch
threshold level.
t TRANSMIT/RECEIVE INDICATOR
➥ Lights green while receiving a signal or when the
squelch is open; lights red while transmitting.
➥ Flashes green for 5 sec. when the scan stop LED func-
tion is in use and a scan is stopped. (pgs. 49, 62)
