Inovance MD310 T2.2B User Manual

2 Wiring
- 7 -

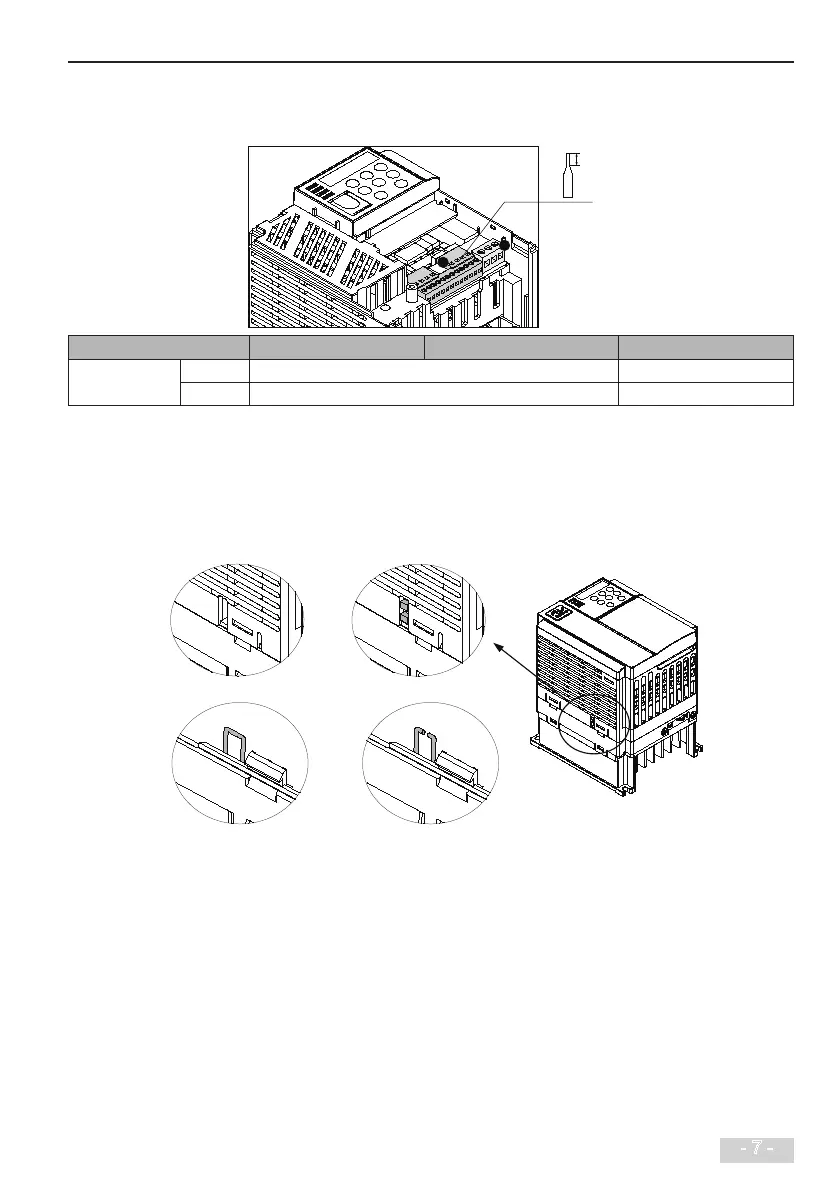

2.3 Control Circuit Wire Size and Torque Specication
Please use a ferrule-type terminal with insulated sleeves� Prepare wire ends with insulated sleeves before connecting to the drive� See
the following gure for ferrule dimensions.
1
2
5 mm
Terminal Block Single Wire (AWG/mm
2
) Twisted Wire (AWG/mm
2
) Tightening Torque (N·m)
Control circuit 1 AWG 24 to 18 (0�2 to 0�75 mm
2
) 0�2
2 AWG 24 to 18 (0�2 to 0�75 mm
2
) 0�51
2�4 EMC Jumper/Screw
The AC drive has built-in safety capacitor� If the leakage current of the entire system is too large at power-on and the RCD acts, you can
cut the EMC jumper or remove the EMC screw to reduce leakage current to ground�
The position and cutting method of the EMC jumper is shown in the following gure.
Figure 2-1 EMC jumper position and cutting method of MD310T0�4B to MD310T5�5B
1� Snip off the two protective caps on the housing by using a cutting plier�
1
2
3
4
2� Then cut the exposed metal jumper�

Inovance MD310 T2.2B Specifications

General

Rated Power	2.2 kW
Control Mode	V/F control, Sensorless vector control (SVC)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short circuit
Communication Interface	Modbus RTU
Humidity	5% to 95% (non-condensing)
Altitude	Below 1000m (derating above 1000m)
Operating Temperature	-10°C to +40°C (derating above 40°C)
