Inovance MD310 T2.2B User Manual

2 Wiring
- 8 -
For the MD310T7.5B to MD310T18.5B, remove the No.2 EMC screw, as shown in the following gure.

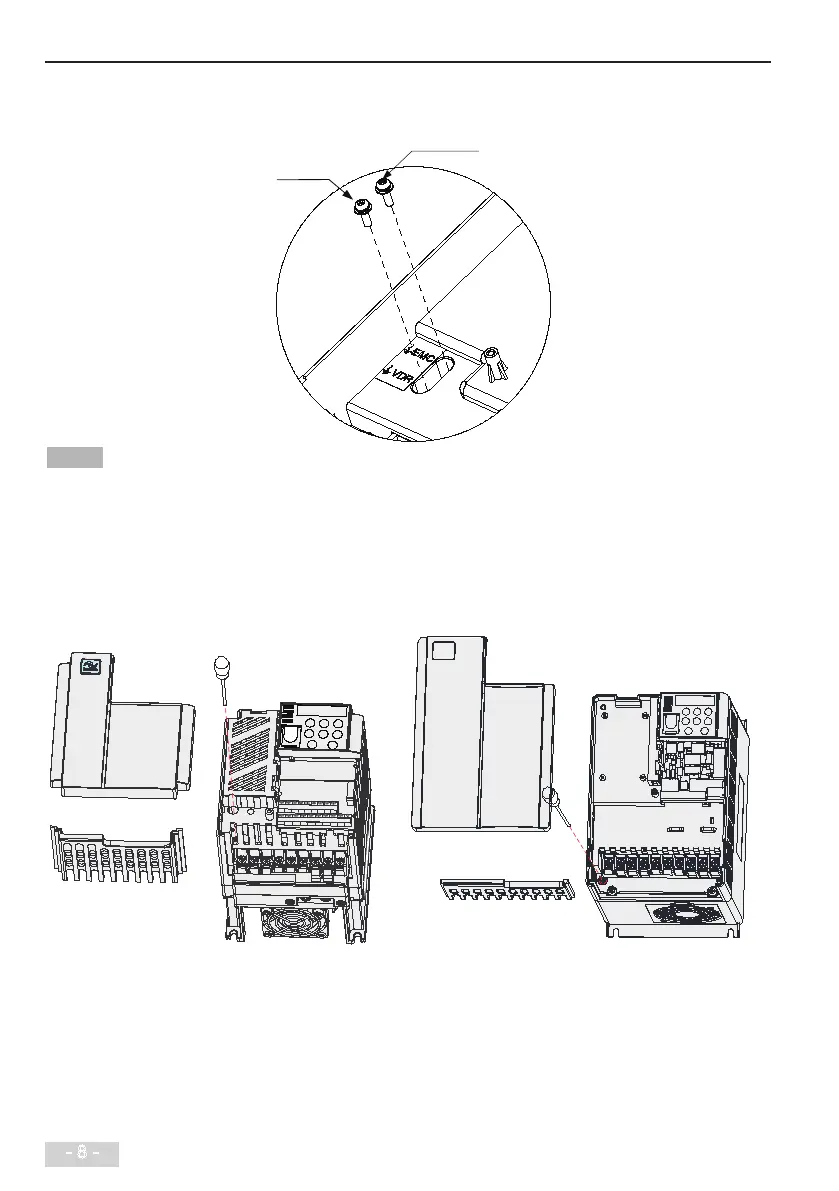

Figure 2-2 EMC screw position
VDR screw
EMC screw
1
2
Note
The screw is connected by default�
The screw cannot be re-connected once it is cut� This will result in an increase in leakage current to ground during drive running� Take
full consideration before cutting the jumper�
2�5 Grid System Requirement
The drive is applicable to system with neutral point grounded� If the drive is used in an IT power system (neutral point not grounded),
remove both VDR and EMC screws for the MD310T0�4B to MD310T5�5B�
MD310T0�4 B to MD310T2�2B
MD310
T3�7B and MD310T5�5B
For the MD310T7�5B to MD310T18�5B, it is necessary to remove the VDR and EMC screws, that is, No�1 screw and No�2 screw, as
shown in Figure 2-2� Filter cannot be installed� Otherwise, personal injury and damage to AC drive may result�

Inovance MD310 T2.2B Specifications

General

Rated Power	2.2 kW
Control Mode	V/F control, Sensorless vector control (SVC)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short circuit
Communication Interface	Modbus RTU
Humidity	5% to 95% (non-condensing)
Altitude	Below 1000m (derating above 1000m)
Operating Temperature	-10°C to +40°C (derating above 40°C)
