Installing Above Deck Unit (ADU)

Option 2. When Installing Cable on Outside of Mast

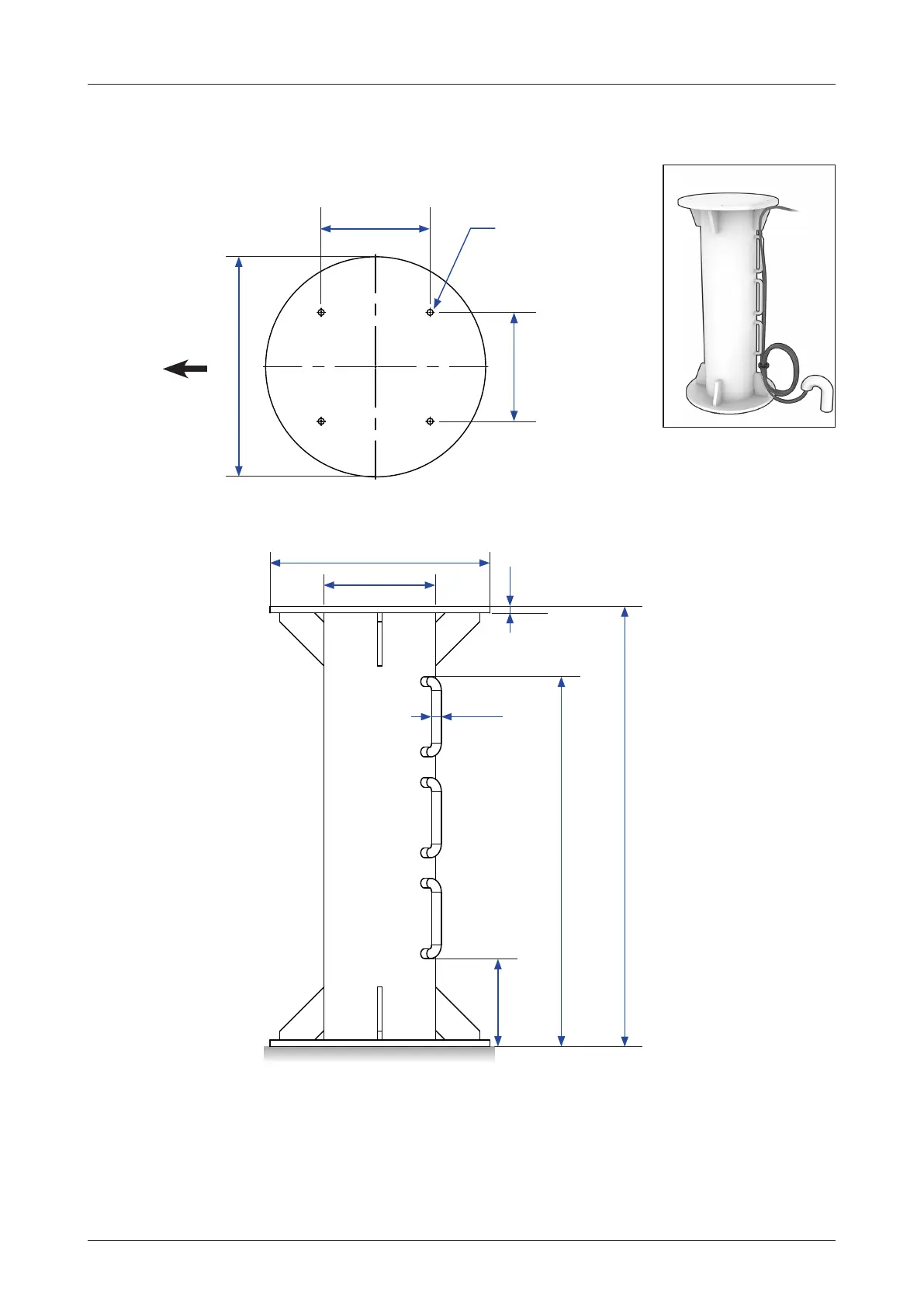

Figure 10: Recommended Size of Mast (Option 2)

BOW

Unit: mm (inch)

247.5 (9.74)

4 - Ø15.0 (0.59) Hole

Ø445.0 (17.52)

Ø22.0

(0.87)

Ø200.0 (7.87)

840.0 (33.07)

200.0 (7.87)

1000.0 (39.37)

Plate Thickness

Min. 10.0 (0.39)

Max. 15.0 (0.59)

Ø445.0 (17.52)

Default Chapter3
- Table of Contents3
Chapter 1. Precautions7
Warnings, Cautions, and Notes7
General Precautions7
Chapter 2. Certifications8
Chapter 3. Introduction10
Intellian V60E Introduction10
Intellian V60E Features10
Chapter 4. Planning Installation11
Selecting Installation Site11
- Minimizing Satellite Blockage11
- Figure 1: Elevation Limit of Obstacles11
- Avoiding RF Interference12
- RF Hazard Precautions12
- Figure 2: Potential RF Interference12
- Figure 3: RF Hazard Precautions12
System Package13
- Above Deck Unit (ADU)13
- Antenna Control Unit (ACU)13
- Figure 4: Radome and Pedestal13
- Figure 5: Front Panel of ACU13
- Figure 6: Back Panel of ACU13
- Packing List14
System Cables (Customer Supplied)15
- Antenna RF Cable (Customer Supplied)15
- Gyrocompass Cable (Customer Furnished)15
Unpacking System Package16
Chapter 5. Installing above Deck Unit (ADU)17
Antenna Dimensions17
- Figure 7: Antenna Dimensions17
Antenna Mounting Hole Pattern18
- Figure 8: Antenna Mounting Hole Template18
Designing Mast19
- Figure 9: Recommended Size of Mast (Option 1)20
- Figure 10: Recommended Size of Mast (Option 2)21
Routing RF Cable on Mast23
- Figure 11: Routing Cable through Inside of Mast23
- Figure 12: Routing Cable on Outside of Mast23
Removing Antenna from Wooden Pallet24
Placing Antenna above Mast25
Inserting Waterproof Foam26
Mounting Antenna on Mast27
- Figure 13: Installing Sequence of Bolts27
- Figure 14: Installing Bolts for Antenna-Mast Assembly27
Connecting RF Cable to Antenna28
Chapter 6. Installing below Deck Unit (BDU)30
Selecting BDU Installation Site30
ACU Dimensions30
- Figure 15: ACU Dimensions30
Mounting ACU on 19-Inch Rack31
- Figure 16: 19-Inch Rack Mount ACU31
Antenna System Configuration32
- Single Antenna System Configuration32
- Figure 17: Antenna System Configuration32
ACU Cable Connection33
- ACU Back Panel Connectors33
- ACU Connector Pinout Guide33
- Figure 18: ACU Back Panel Connectors33
- Connecting Power to ACU37
- Connecting ACU to Antenna37
- Figure 19: Connecting Power to ACU37
- Figure 20: ACU to Antenna Cable Connection37
- Connecting ACU to Modem38
- Figure 21: ACU to Modem Cable Connection38
- Connecting ACU to Ship Gyrocompass39
- Figure 22: ACU to Ship Gyrocompass Cable Connection39
- Figure 23: NMEA 0183 Gyrocompass Cable Connection39
ACU to PC Communication Setup40
- TCP/IP Connection40
- USB Connection40
- Figure 24: Front Panel Management LAN Port Connection40
- Figure 25: Front Panel USB Port Connection40
Chapter 7. Operating Install Wizard41
Turning on System41
Accessing Aptusnx41
- Figure 26: Front Panel Management LAN Port Connection41
Modem Configuration42
Starting Install Wizard44
Chapter 8. Operating ACU52
ACU Front Panel View52
- Figure 27: ACU Front Panel View52
Chapter 9. Using Aptusnx53
Introduction53
Accessing Aptusnx for ACU53
Main Page (Page Login)54
Top Menus55
Account Menu56
- Account56
- Registration57
- System58
- User Manager59
Dashboard60
- How to Add & Remove Panels (Dashboard Setting)60
- How to Arrange Dashboard Layout61
- How to Use Shortcut Settings62
Install Wizard62
System Tools63
- Firmware Upgrade63
- Iarm Upgrade65
- Iarm Save & Reboot67
- Satellite Library68
- Graph69
System Troubleshooting70
- Diagnosis70
- Antenna Log72
- Antenna Event Log73
- Support73
System Setting74
- Ship Setting74
- Antenna Setting76
- Tracking Satellite Setting79
- Network Configuration80
- Modem Setting82
- Backup & Restore85
Chapter 10. Specification86
Technical Specification86
Environmental Specification87
Chapter 11. Warranty88
Chapter 12. Appendix89
Appendix A. Tightening Torque Specification89
