v60E - Maritime VSAT Antenna System

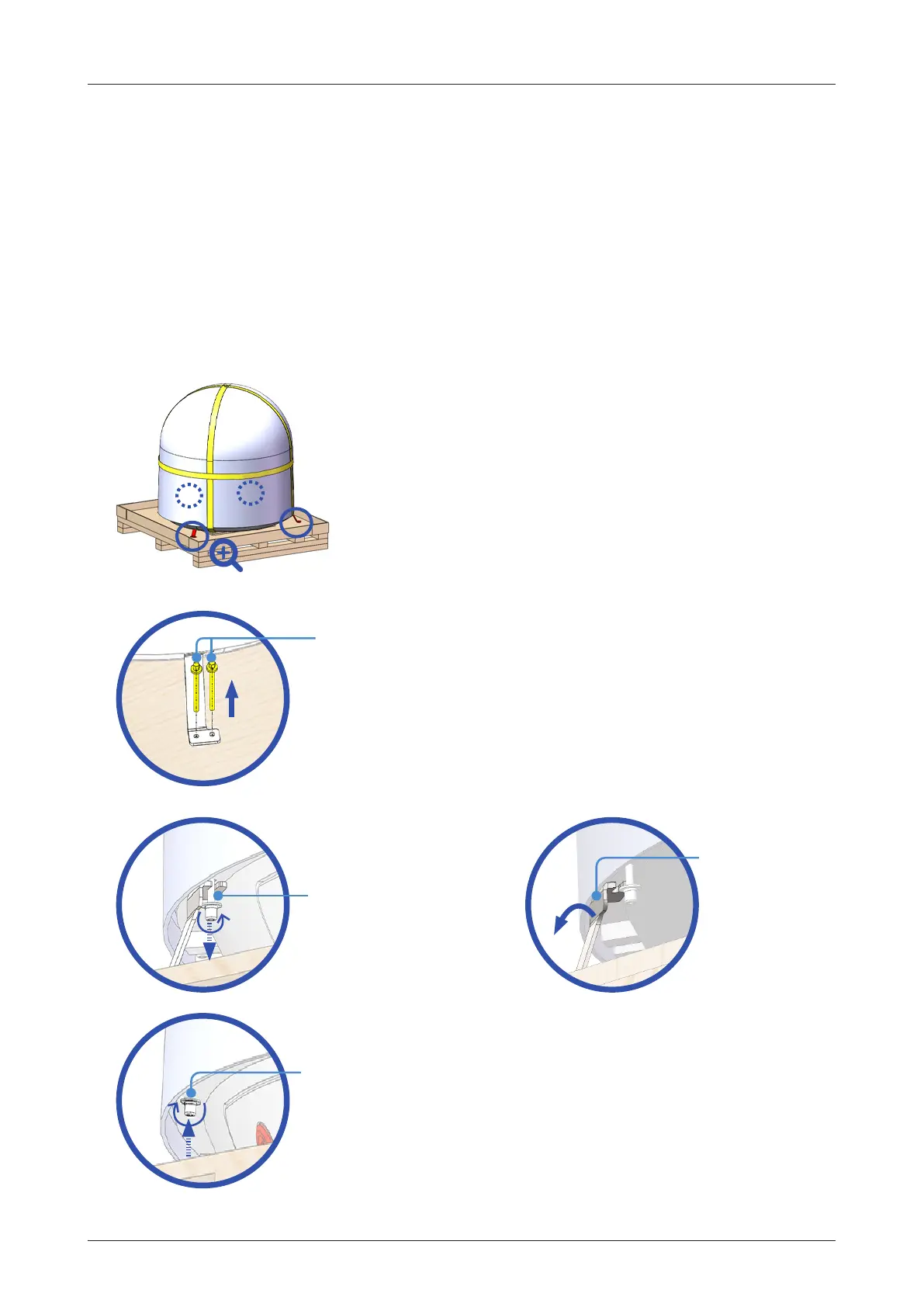

Four radome brackets secure the antenna to the pallet. To remove the radome bracket, follow the procedure
below.
1. Remove the xing bolts (2 ea) on the radome bracket that secures the antenna to the pallet using a
wrench.
2. Remove the radome bolt (1 ea) that secures the radome bracket on the radome with a wrench. Then
detach the radome bracket from the radome.
3. After removing radome bracket, install the radome bolt (1 ea) back into the radome using a wrench. To
fasten the bolt rmly, apply Loctite #243 to bolt threads before installing.
4. Repeat the procedure to remove all four radome brackets.
Remove the xing screws (2 ea).
1
3
Install the radome bolt
back into the radome bolt
and washers.
2-1
Remove the radome bolt
and washers.
2-2
Remove the
radome bracket.
5.5 Removing Antenna from Wooden Pallet
