Intellian v60E User Manual

55
Using AptusNX

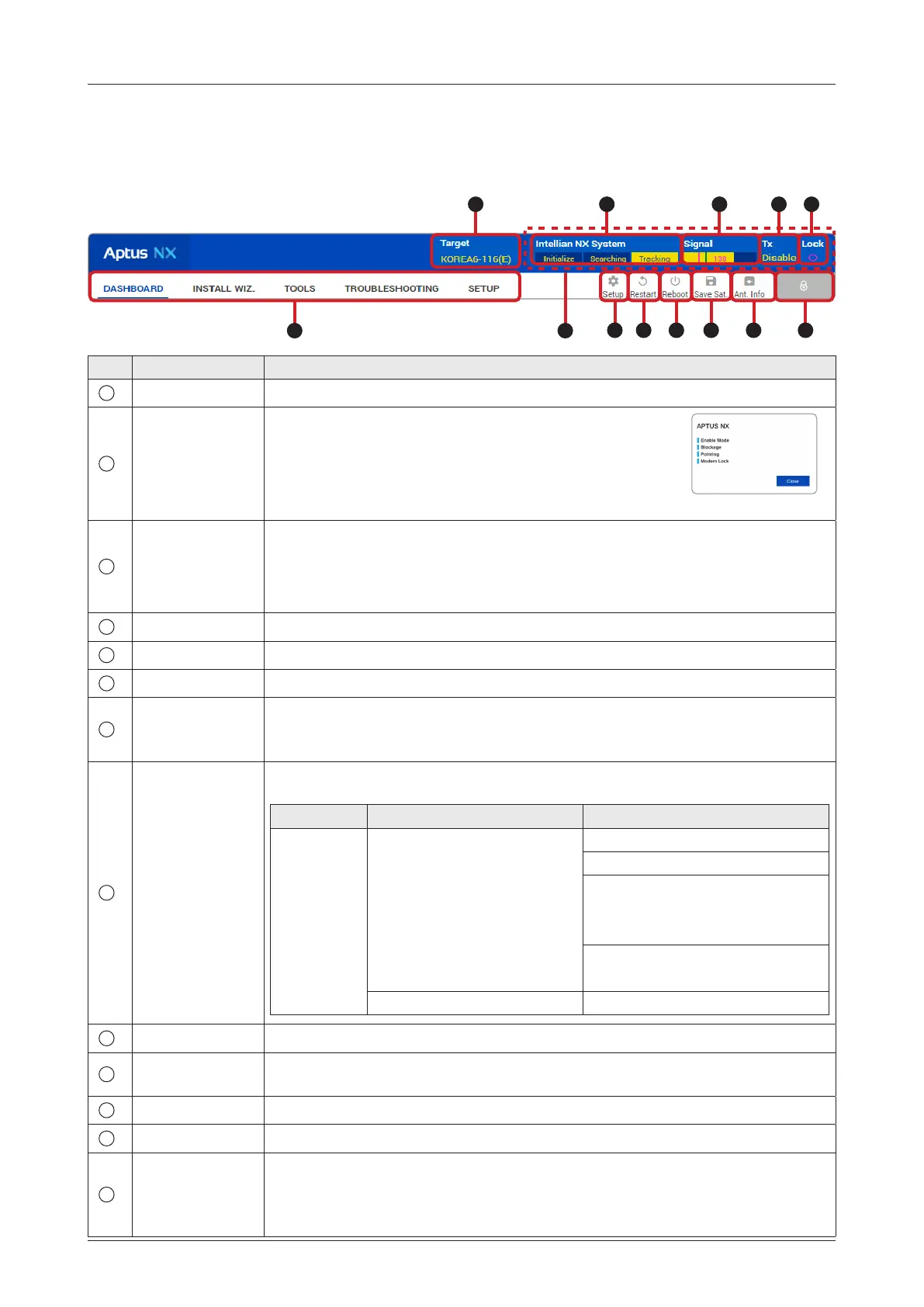

9.4 Top Menus
Once you log in, the following information and menus are displayed.
No. Item Description
1
Target Satellite Displays the name of the targeted satellite.
2
Quick Status
Screen Area
When clicking this top menu area (marked as red dots),
the Quick Status Screen appears. You can quickly
monitor each status of the ve items (Enable Mode,
Blockage, Pointing, Modem Lock) through the screen
(Blue: enable, Black: disable).
<Quick Status Screen>
3
Antenna Status
Info
Displays the antenna status through a yellow indicator in the SETUP mode.
• Initialize: the antenna system is initialized.
• Searching: the antenna is searching the target satellite.
• Tracking: the antenna is tracking the target satellite.
4
Signal Level Displays the current signal level.
5
Tx Status Displays whether the antenna is able to transmit data or not.
6
Lock Displays whether the satellite is locked or not.
7
Main Menu
Selects the Main Menu (DASHBOARD, INSTALL WIZ, TOOLS,
TROUBLESHOOTING, SETUP). Each main menu offers side menus on the left of
the screen.
8
Setup
Enters the setup mode to modify settings. The following functions are available
only in setup mode.
Main Menu Side Menu Function
SETUP Antenna Antenna Angle
Dish Scan Range Check
Sensor Calibration
• Tilt Sensor Bias
• Rate Sensor Bias
Antenna Mode
• Sets Idle Mode
Backup & Restore Setting Antenna Restore
9
Restart Restarts the antenna system.
10
Reboot
Reboots the antenna system to become the normal mode when operating in
Setup mode.
11
Save Sat. Saves bow offset.
12
Ant. Info Obtains current antenna information.
13
Account Button
Select the Account button and enter the user management menu. The Account
and the Logout menu will appear. Select the Account menu to manage your
account details and select the Logout menu to log out of the AptusNX web
page.
1 3
2
5 6
7
8 9 1110 12 13
4
