Installing Above Deck Unit (ADU)
5.6 Placing Antenna Above Mast
The Intellian antenna comes with the lifting straps pre-mounted
from the factory. Check the condition of the lifting strap and ensure
the shackle is tightened up. Lift the antenna above the mast using
a crane and carefully lower down the antenna toward the mast.
Maintain sufcient space (at least 150 mm) between the bottom of
radome and the mast for cabling work.
WARNING
When moving the antenna, it may sway by windy. Be
careful when handling the antenna.
WARNING
Make sure to remove the radome brackets that secure the radome to the pallet before lifting the
antenna using the lifting straps.

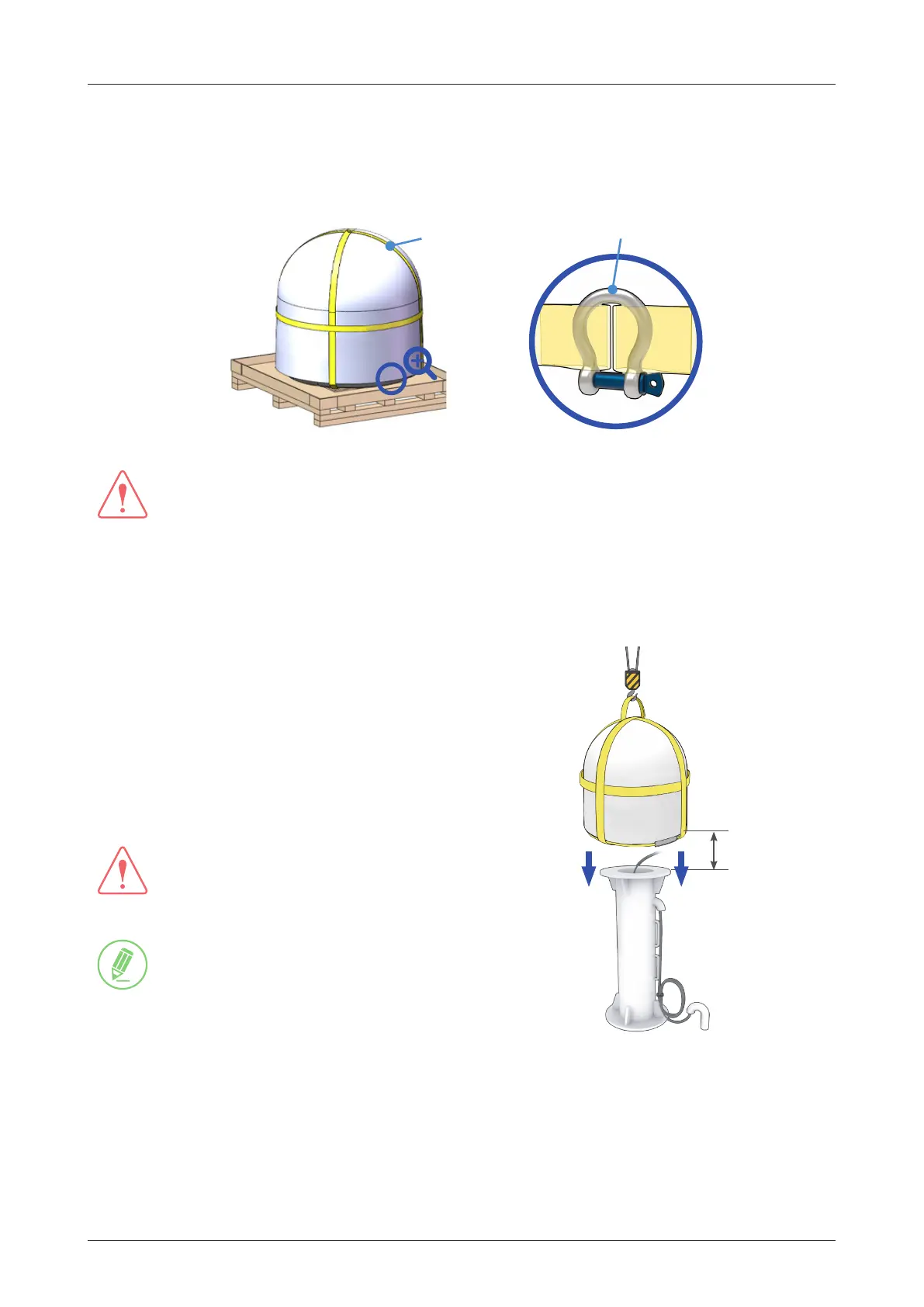

5. Check the condition of lifting strap to make sure the shackle (1 ea) is tightened. Re-wrap the shackle
with the existing protection to avoid radome damage.
Shackle (1 ea)
Lifting Strap
NOTE
Position the antenna with the BOW direction parallel
to the center line of the ship.
Sufcient Space
(at least 150 mm)
To Next Page
