Installing Below Deck Unit (BDU)
6.5 ACU Cable Connection
6.5.1 ACU Back Panel Connectors

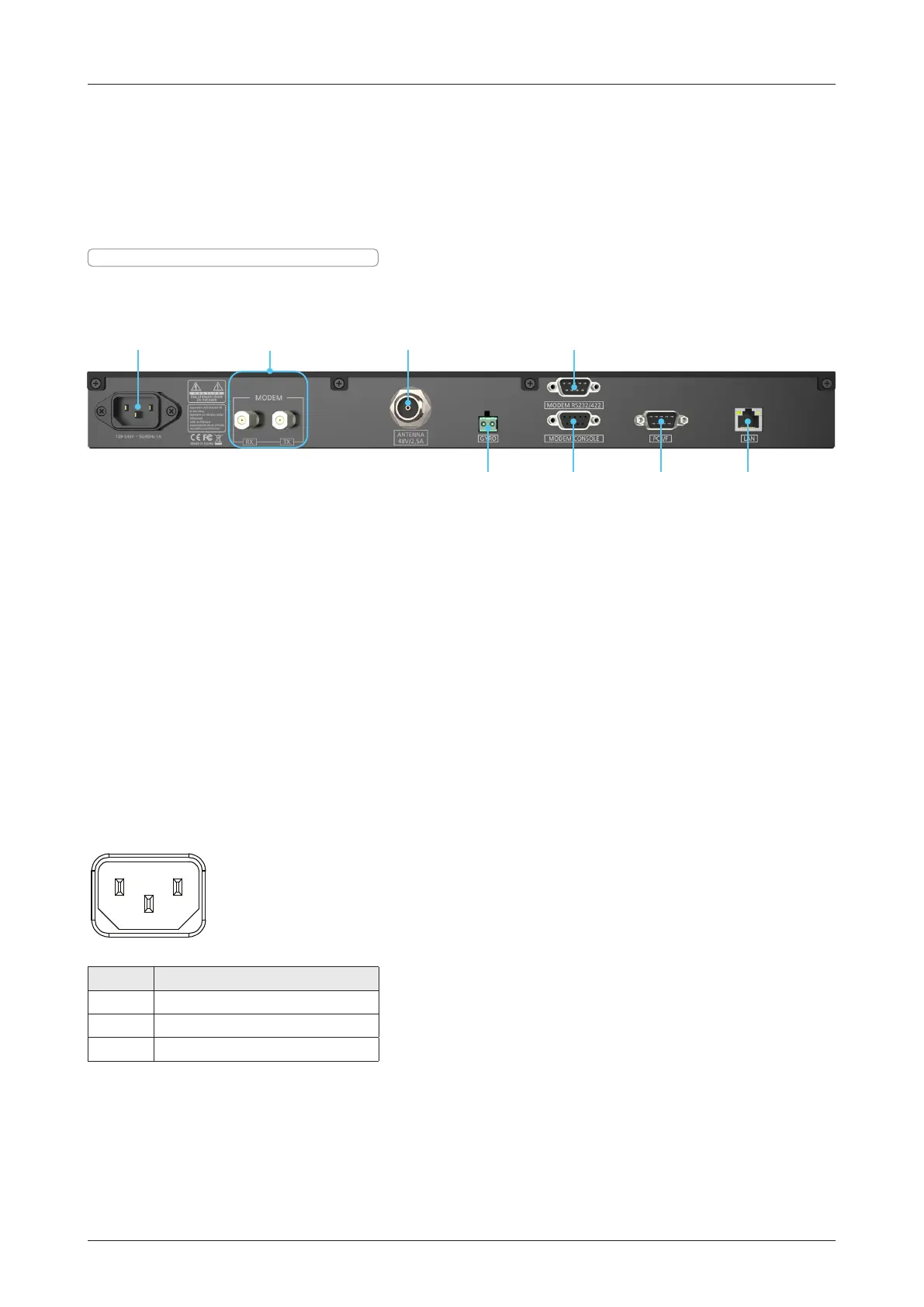

The following gure shows the ACU back panel.
Figure 18: ACU Back Panel Connectors
Antenna Control Unit (ACU)
NMEA 0183
(GYRO) Input
Modem
Interface
Console
PC
Interface
Antenna
Modem Interface
RS232/422
LAN
Modem
Rx/Tx
Power
6.5.2 ACU Connector Pinout Guide
Check the following connector pinout information applied to the connection ports of the ACU.
• Power Connector
IEC 320 C14 Plug Male
1
2
3
Pin Signal
1 NEUTRAL
2 GND
3 LIVE
