Chapter 6. Installing Below Deck Unit (BDU)
6.1 Selecting BDU Installation Site
The ACU should be installed below the deck in a location that is dry, cool and ventilated. The front panel of
ACU should be easily accessible to users.

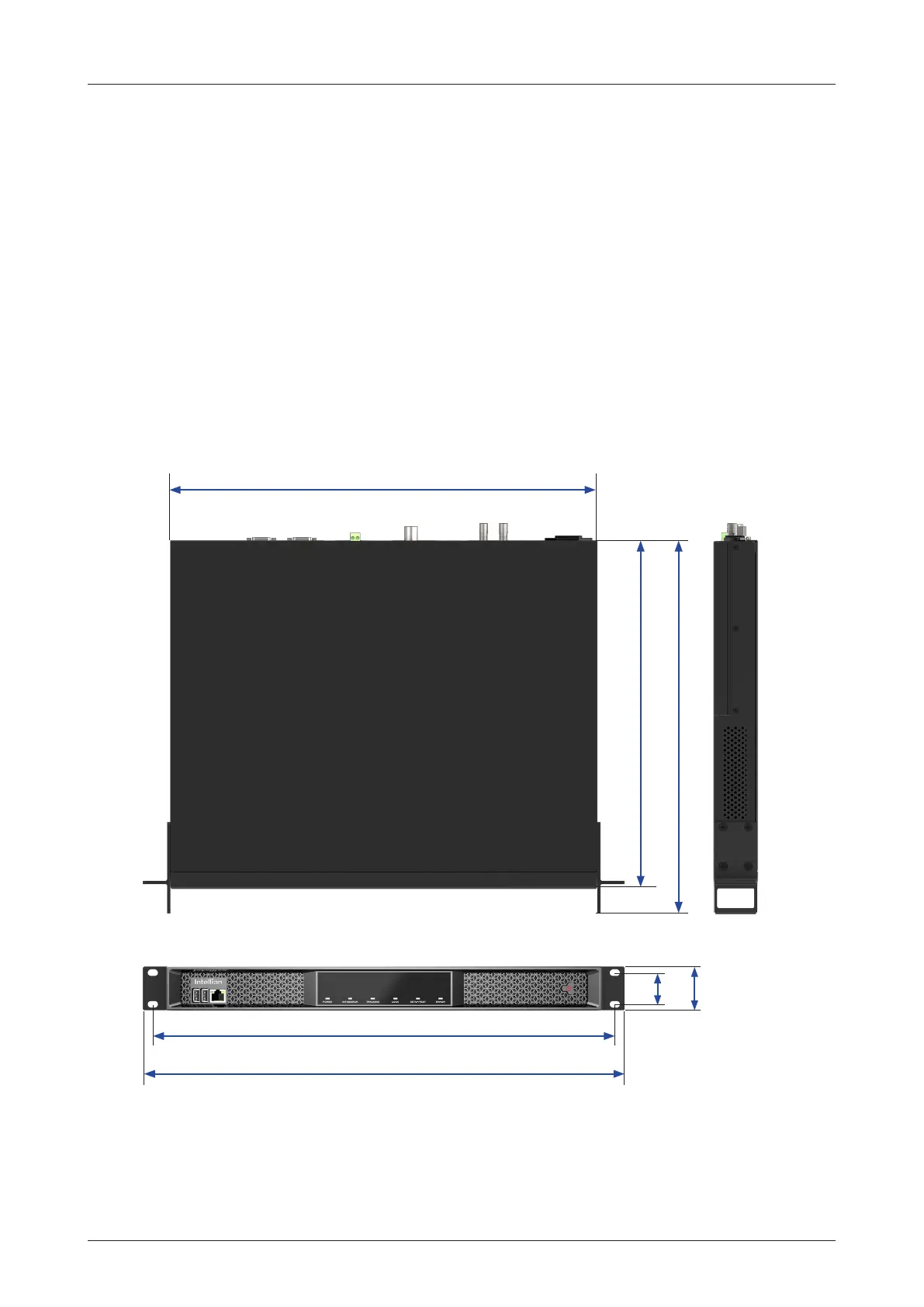

Figure 15: ACU Dimensions
6.2 ACU Dimensions
Conrm the dimension of the ACU before installing it.
32
(1.25)
44.3
(1.74)
350 (13.77)
376 (14.80)
466 (18.34)
431 (16.96)
485 (19.09)
Unit: mm (inch)
