104 xGen Installation & Programming Guide
Notice that Channel 4 is not selected in the Channel Group. The xGen will still
deliver to these destinations if Channel 1 cannot be reached. If Channel 4 were
included in the Channel Group then it is likely the control room will receive
unwanted duplicate messages.
Next
• Program your Partitions and Zones
Programming Instructions for Zone Reporting
Goal
Direct event messages (e.g. alarm, bypass, tamper) from zones to specific
destinations
Pre-conditions

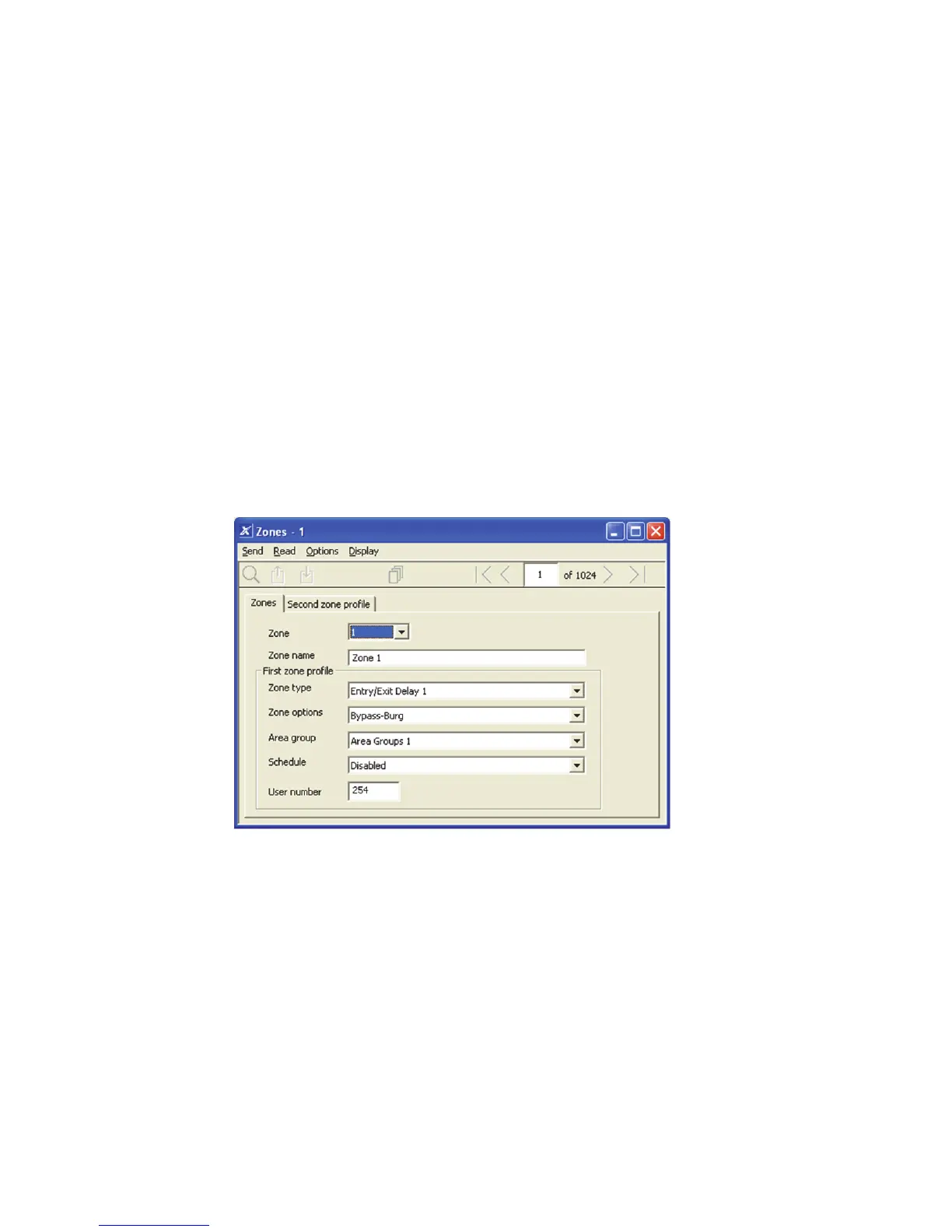

• The zone must have valid zone options programmed (see Zone
Programming), by default you should not need to modify these
• The zone must be allocated a valid Partition Group (see Zone Programming)
• Channels and Channel Groups must be programmed (see Channel
Programming)
Notes
Each zone may be allocated to multiple Partitions through a Partition
Group.
Events will be sent to the lowest numbered Partition in the Partition Group.
A zone may have a Second Zone Profile, when this becomes active all
events will be sent to the Partition Group programmed in the second
profile.
To Next Page
