JUKI KE-1070 User Manual

Maintenance Guide
1-13

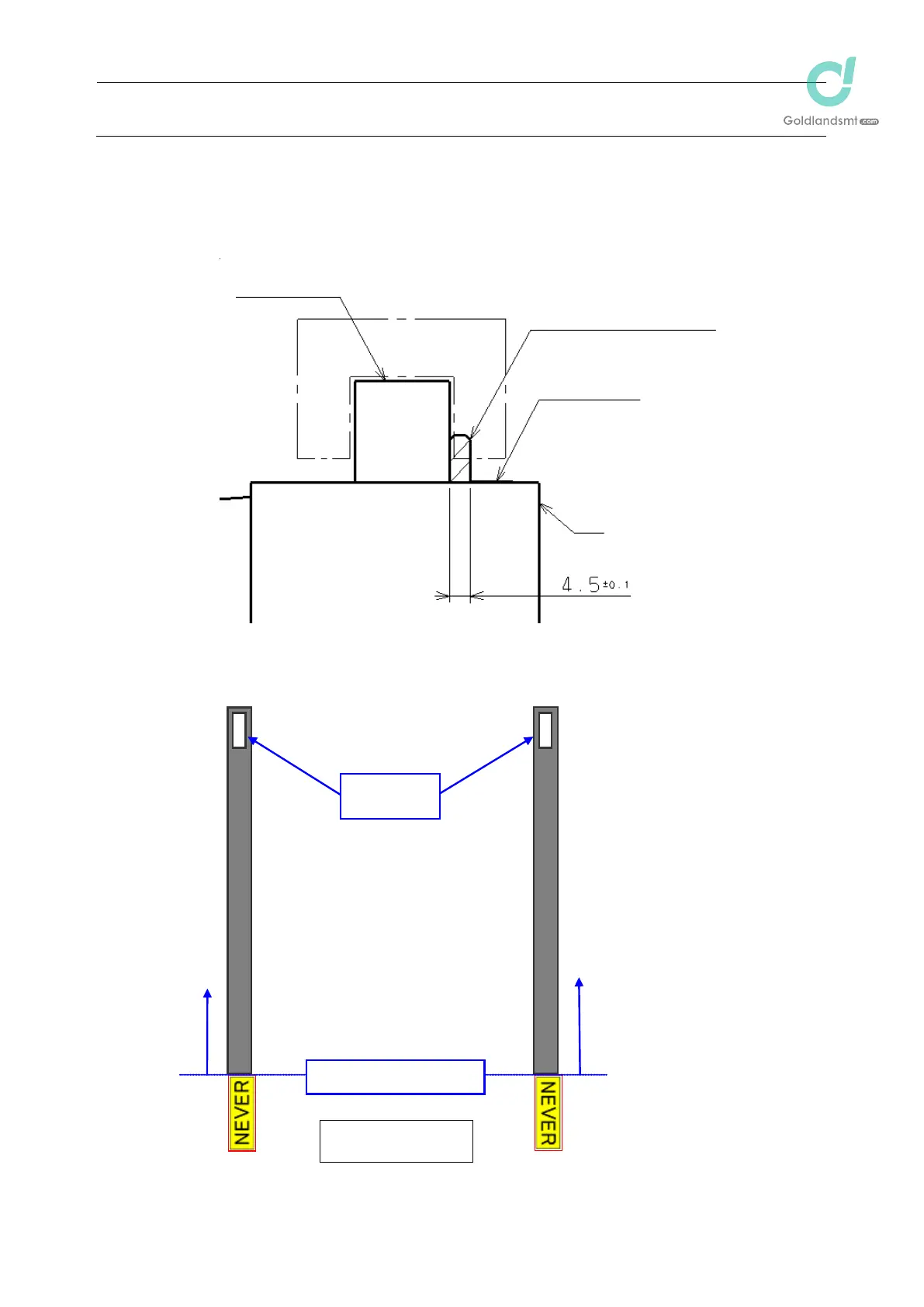

x Y-axis magnescale affixing procedure
(1) With the Y-axis affixing jig (part No. 40008105) made in contact with the side of the Linear
way Y and the top of the Y-axis, make the magnescale in contact with the Y-axis affixing
jig to affix the magnescale.
Magnescale affixing position (deviation in the horizontal direction):
Specification value
r 0.1 mm
Linear way Y
Y-axis magnescale affixing jig
Magnescale
Y-axis
Serial No.
Front of machine
Y-axis (left)
Y-axis (right)
Magnescale affixing position and direction
Affixing start position
