Maintenance
Guide
1-
40
(3)

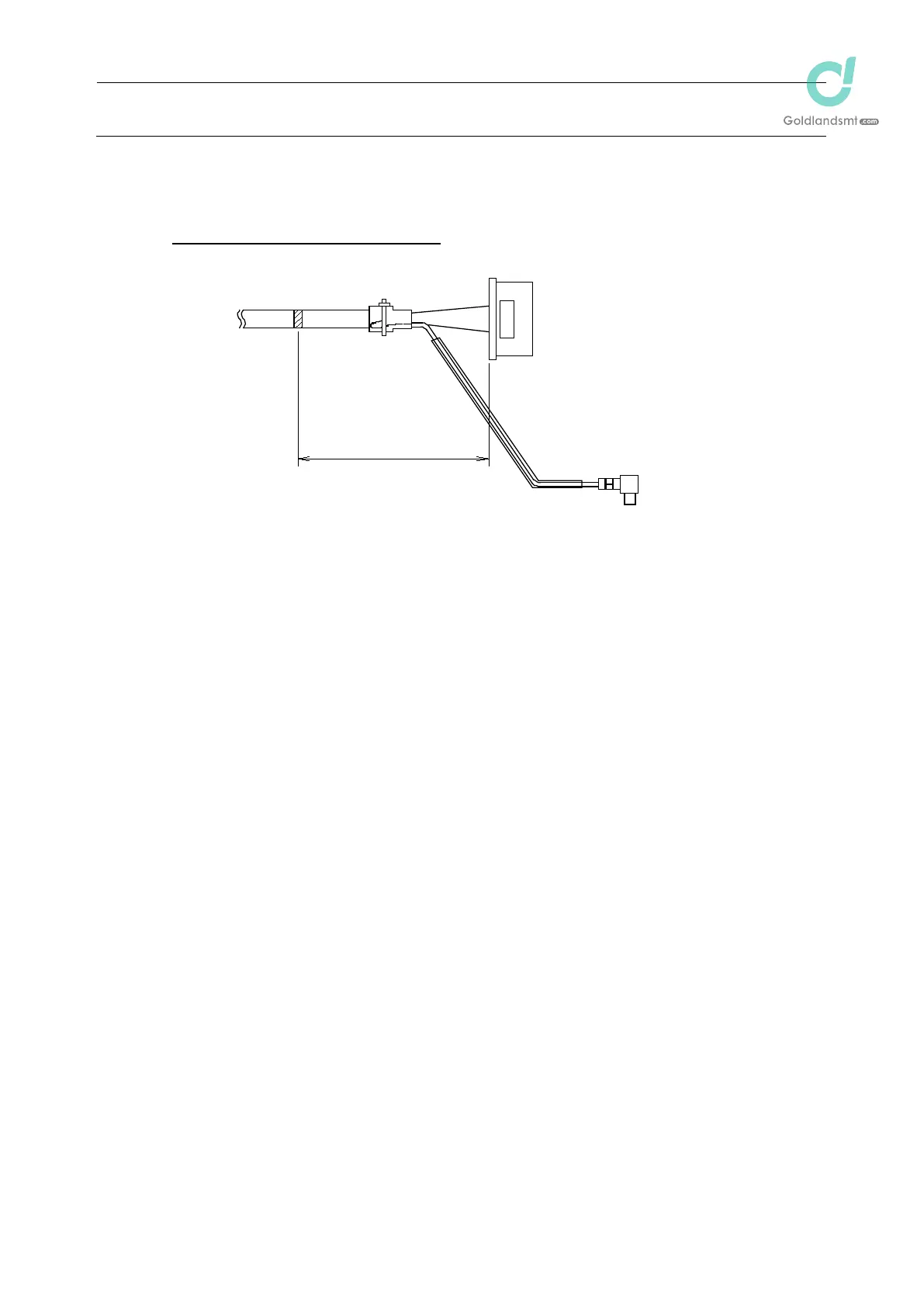

Check the marking position o
f the LA sensor
veyor
-cable
(400
80206
).
(Place the mar
ks at a position
700
mm fr
om the
ZTD
-
CN5
connec
to
r end
.)
For the machine w
ith the extra speci
fications, the
fo
llow
ing
cable is
used.
LA sensor
veyor
-cable
(E) 4
008021
4
This instruction also app
lies to the
followin
g pages.
700
FMLA
ZTD-CN5
49
51
Table of Contents
Table of Contents
3
X-Y Unit
11
Replacing the Timing Belt and Adjusting the Belt Tension
11
Timing Belt XM
11
Timing Belt XB
13
Timing Belt YM
16
Timing Belt YB
17
Replacing the Pulleys
20
Replacing the Pulley XA
20
Replacing the Pulley XM (X-Motor Assembly)
20
Replacing the Pulley YA
20
Replacing the Pulley YM (Y-Motor Assembly)
20
Replacing the Pulley YB
20
Replacing the Servomotors
21
Replacing the X-Motor
21
Replacing the Y-Motor
21
Replacing the Magnescale
22
Magnescale Affixing Position
22
Clearance of the Magnescale
24
Clearance between the Sensor Head and the Y-Axis Linear Way (for Y-Axis Only)
26
Replacing the Limit Sensor and the X-Axis Home Proximity Sensor
27
Replacing the X-Axis Limit Sensor and the X-Axis Home Proximity Sensor
27
Replacing the Y-Axis Limit Sensor and the Y-Axis Home Proximity Sensor
28
Replacing the Home Position Sensor
30
X-Axis
30
Y-Axis
30
Replacing the Plastic Rail
31
Replacing the Cables in the X/Y Veyor-Cable
33
Removing the X Cable
33
Checking the Cable Marking (X)
35
Assembling the Cable
36
Separating the Fusion-Bonded Parts of the Cables
38
Removing the y Veyor-Cable
39
Placing Marks on the y Veyor-Cable
39
Assembling the Cables
40
Replacing the Cables in the X/Y Veyor-Cable (KE-2080R)
46
Removing the X Cable
46
Checking the Cable Marking (X)
49
Assembling the Cable
51
Separating the Fusion-Bonded Parts of the Cables
53
Removing the y Veyor-Cable
54
Placing Marks on the y Veyor-Cable
54
Assembling the Cables
55
Wiring Around the Head
60
Head Unit
61
Replacing and Adjusting the Head
61
LNC Head
61
IC Head (KE-1080/2080)
63
IC Head (KE-2080R)
64
Replacing the Motor
65
Z-Motor (LNC Head)
65
Motor (LNC Head)
67
Z-Motor (IC Head)
68
Motor (IC Head: KE-1080/2080)
70
Motor (IC Head: KE-2080R)
71
Replacing the Z-Sensor
72
LNC Head
72
IC Head
73
Replacing the T-Sensor (KE-2080R)
74
Replacing the Laser Sensor
75
Replacing the LNC
75
Replacing the Point Sensor (KE-1080/2080)
76
Replacing the FMLA (KE-2080R)
78
Replacing the Head up Cylinder
80
Replacing the Belts
81
LNC Head
81
IC Head
82
Replacing the Z-Slide Shaft
84
List of Readjustment Items after Replacement
85
Parts Around the Head
86
Replacing the Ejector Unit
86
Replacing the Bad Mark Sensor
87
Sensor Assembly
87
Adjusting the Sensor Height
87
Amplifier
88
Assembling the Fiber Unit to the Amplifier (F10R Amplifier)
88
Setting the Switches on the Bad Mark Sensor Assembly (F10R Amplifier)
89
Assembling and Setting the F70R Fiber Sensor Amplifier
89
Manual Setting Method for the F70R Fiber Sensor Amplifier
92
Replacing the HMS
93
Replacing the HMS Head
93
Replacing the Amplifier
93
Sticking the Label
94
Adjusting the HMS Height
94
Replacing the Head Board
95
Replacing the Head Main Board
95
Occ Assembly
97
Replacing the OCC Assembly
97
Replacing the CCD Camera and Lens
98
Replacing the OCC Front/Angle Light Board Assembly
99
Replacing the Lens Filter
100
