Maintenance Guide
1-42
(3) For the head side of the cable, align the marking positions of the cables with the upper end
of the FC support and secure them.

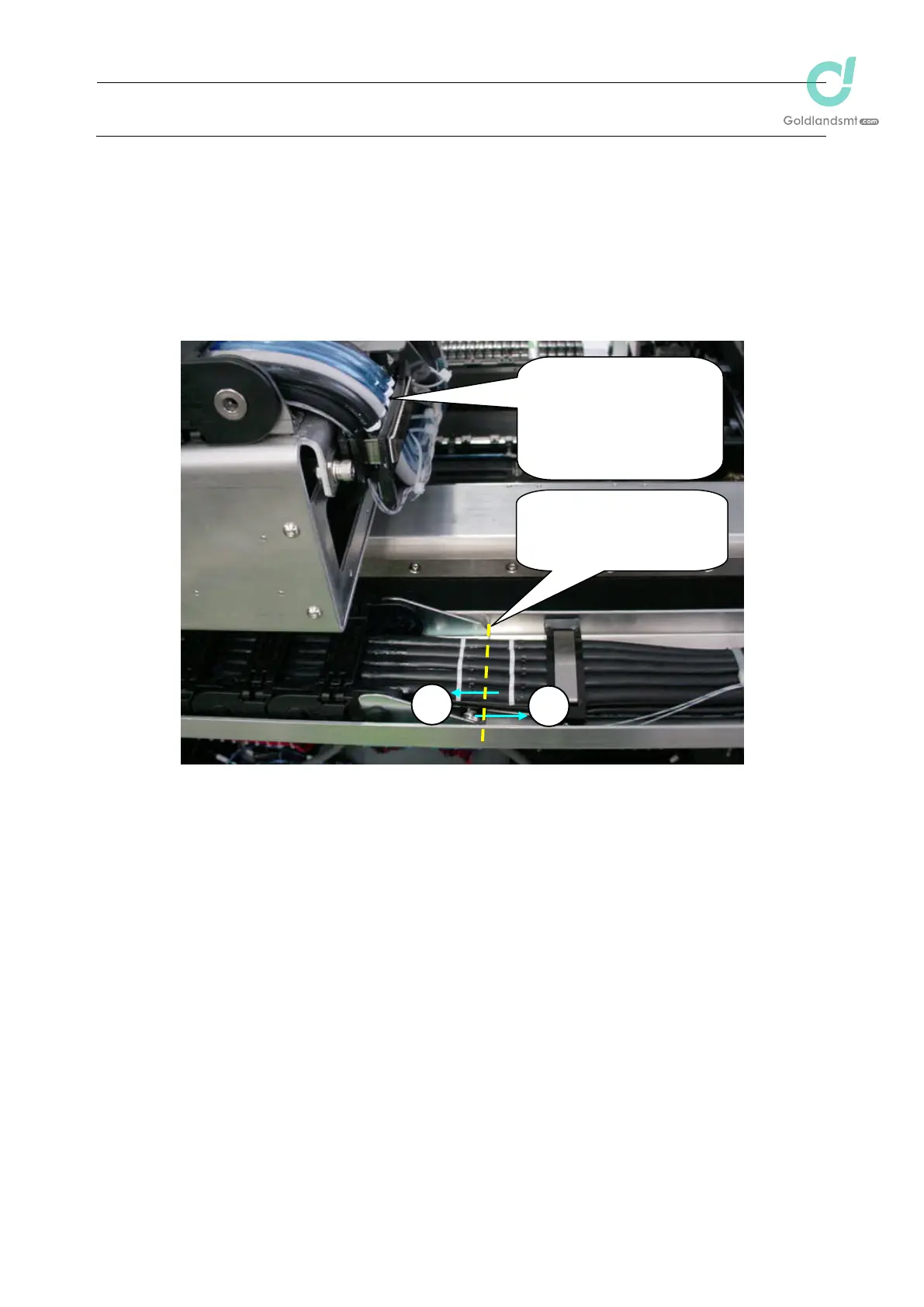

(4) For the opposite side, place a mark at the top end of the mounting fixture with the cable
pulled in the direction c shown in the figure below. In the same manner, place a mark with
the cable pushed in the direction d. (For details, see the figure below.)
(5) Hold the cables with the cable clamp X at a position where the center position between two
mark positions meets the top end of the mounting fixture to secure them.
Figure 1-9-3-3
(6) Cable check inside the plastic rail:
Press in the cables inside the plastic rail by hand and check to make sure that they yield.
40058385 (350mm)
40044517 (1150mm)
40048070 (290mm)
40080206 (700mm)
Secure each cable at
relevant marking position.
1
2
Make the center position
between the marks
matched with the top end of
the mounting fixture.
To Next Page
