– 7 –
Brown
Brown
Light blue
Light blue
Light blue
Green/Yellow
– GND
Green/
Yellow
Plug
Power source cord
Power switch
• Connecting single phase 200V to 240V
White
AC200 to AC240 V
• Connecting three phase 200V to 240V
Red White
Black
Table
Control box
Black
Red
Green/
Yellow
Brown
Green/Yellow
– GND
Red
Green
PlugControl box
Green/
Yellow
Black
White
Power switch
Table
Never use the machine unless the voltage specications described on the power indicator label
are satised.

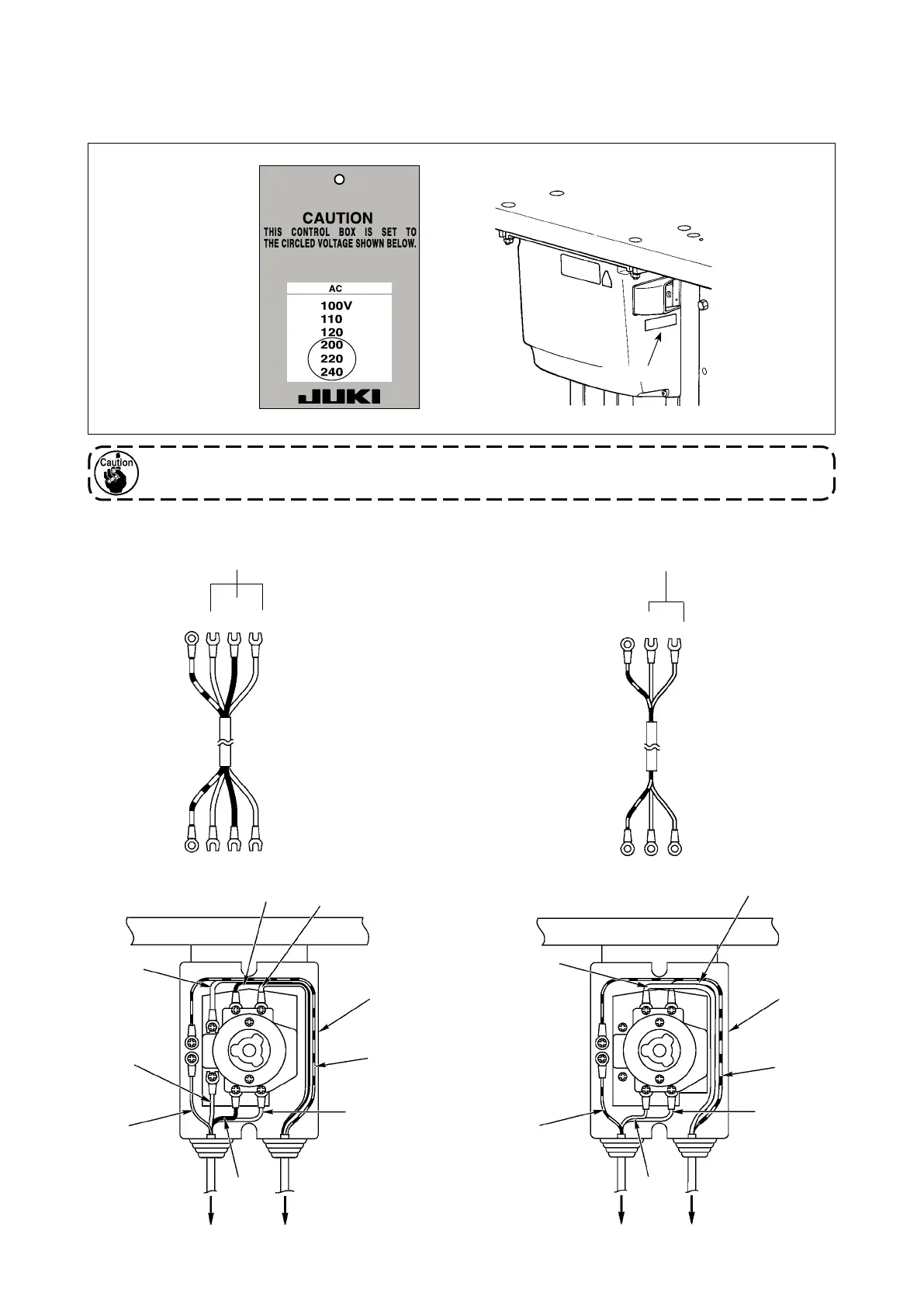

2) Connecting the power cable
Power source cord
Power switch side
Plug side
Power switch side
Plug side
Rating plate
Voltage specications are shown on the power indication tag attached on the power cable and on the rating
plate adhered on the power box. Connect the cable which matches the specications.
Power indication tag
(For example: In the case of 200V)
AC200 to AC240 V
