– 10 –

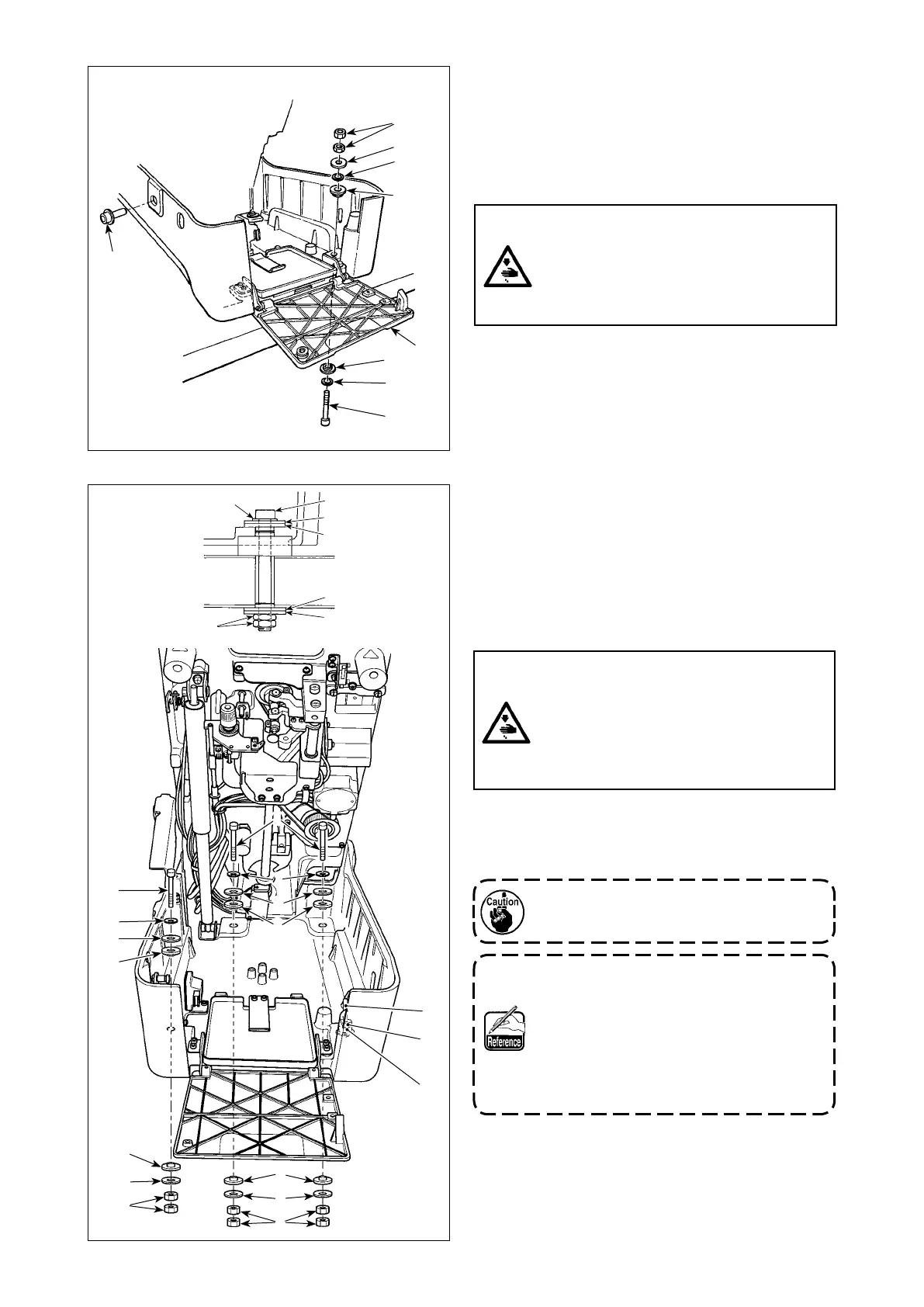

6) Remove machine head xing bolts ❽. Raise the
sewing machine to the 1st step of the hinge stop-
per.
When raising the sewing machine, refer to "3-6.
Raising and returning the sewing machine" p.
16.
WARNING :
Do not raise the sewing machine above
the 1st step of the hinge stopper.
If it is raised above the 1st step, the sew-
ing machine can fall, resulting in personal
injury or sewing machine breakage.
7) Open front cover ❷. Insert a bolt ❸, a washer ❹
and a bolt rubber ❺ from the right front side of the
sewing machine, and temporarily x them with a
bolt rubber ❺ a washer ❹, a packing ❼ and two
nuts ❻.
8) Be sure to raise the sewing machine to the fourth
step of the hinge stopper.
Fix the sewing machine with remaining three bolts
❸, six washers ❹, six bolt rubbers ❺, three pack-
ings ❼ and six nuts ❻.
9) Remove bolt ❸ and two nuts ❻ which have been
used for temporarily xing.
WARNING :
If your body comes in contact with the
corner section of connector cover ❾ of
the lateral-direction motor during work,
unexpected injury can be caused. Be sure
to keep away from the corner section of
the connector cover.
10) Attach bolt ❸ and two nuts ❻ removed in the
above step of procedure in the reverse direction
and x them.
Fix bolt ❸ and nuts ❻ in such a state that
bolt rubber ❺ is slightly squeezed.
1. Keep machine head xing bolt ❽ since
it is necessary when moving the sewing
machine. Whenever you move the sew-
ing machine, be sure to install the head
xing bolt in place.
2. Bolt ❸ is an M8 hexagon socket head
bolt (length: 85 mm). Nut ❻ is an M8 one.
6), 7)
8) to 10)
❽
❺
❹
❼
❹
❺
❻
❸
❷
❸
❼
❹
❺
❻
❺
❹
❼
❻
❹
❻
❹
❺
❸
❹
❺
❺
❹
❸
❻
❻
❼
❺
❸
