8 Display instrument (CANDIS) (o) pre-10.2006

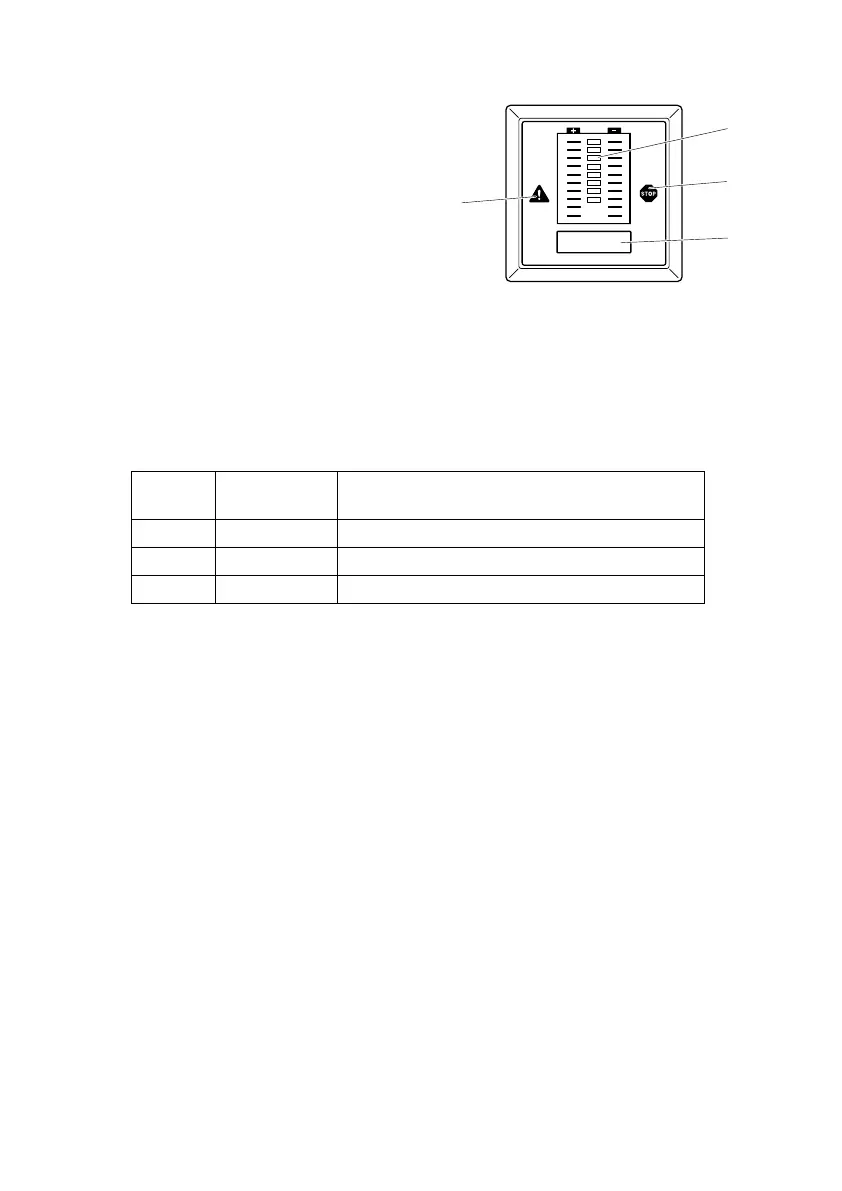

The instrument indicates:
– Residual battery charge
(LED bars (28)),
– Service hours
(LCD display (30)).
It also displays error messages for the
electronic components and parameter
changes.
Discharge status display
When the truck has been released via the key switch or CANCODE, the battery
charge status is displayed.
The “Warning” LED (27) (yellow) and the “Stop” LED (29) (red) represent the
following conditions:
When a battery has been discharged to its minimum level, the battery symbol is
displayed empty.
Z
When a battery has been discharged to its minimum level, both LEDs are lit and load
lifting is inhibited. Lifting is only released when the battery connected is at least 70 %
charged.
LED
yellow
LED red Meaning
Off Off Battery is charged
On Off Last 10% available capacity has been reached
On On Below battery residual capacity minimum level
