Jungheinrich ECE 220 User Manual

1007.GB
E 32

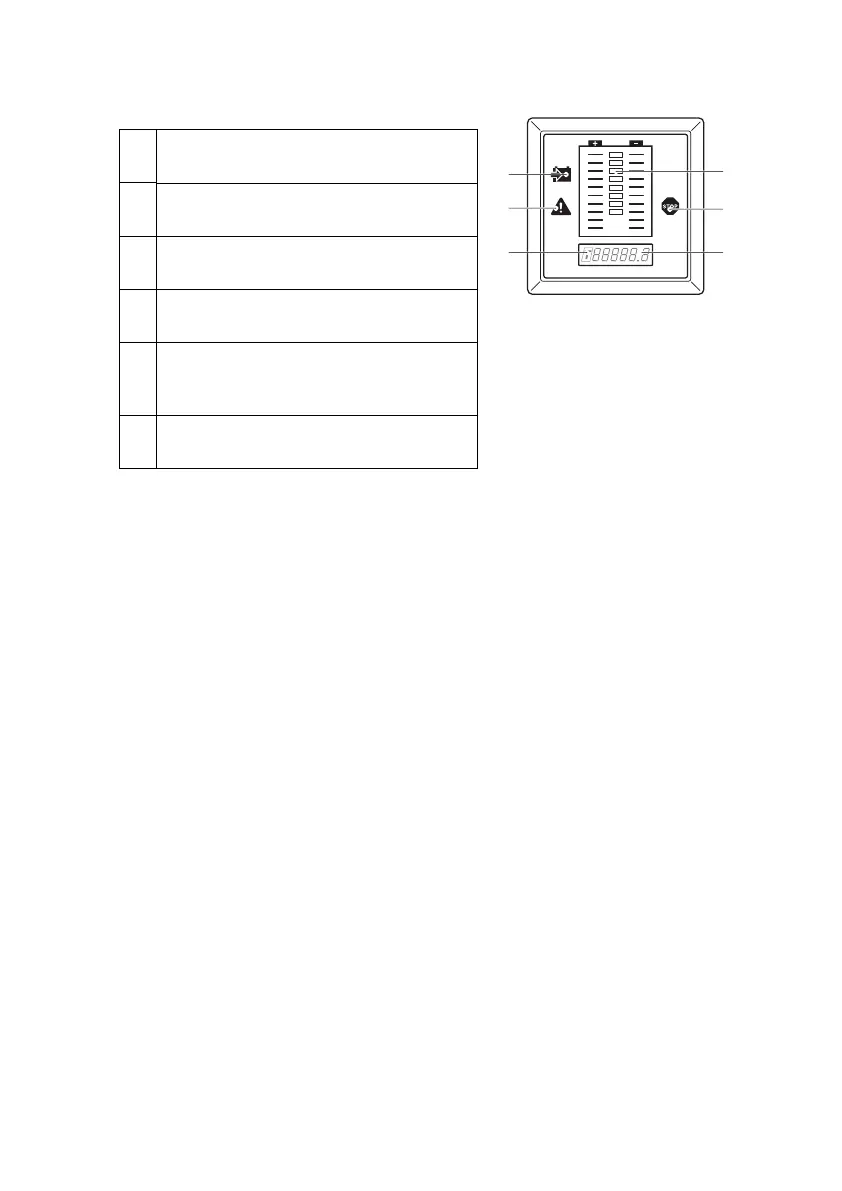

9 Display instrument (CANDIS) (o) post-10.2006
The instrument indicates:
In addition, service messages for the electronic components and parameter changes
are displayed.
Discharge status display
Setting limits for the additional "Warning" (27) and "Stop" (29) displays will depend on
the battery type set.
The available capacity is shown via 8 LED bars. The two bottom bars are always off.
The current battery capacity is shown by the illuminated LED bars.
8 bars correspond to full battery capacity, 1 bar corresponds to the minimum available
capacity.
If only one LED bar is lit, the battery capacity is almost depleted and the "Warning"
indicator (27) is lit. The battery must be charged immediately.
If no more LED bars are illuminated, the "Stop" indicator (29) lights up. Lifting is now
inhibited. The battery must be charged.
27 Attention pre-warning symbol,
battery charge required
28 Capacity display bars
Battery residual charge status
29 Stop symbol; lift cutout,
battery charge required
30 6 digit LCD display; hourmeter;
entry display; error display
31 T symbol appears during operation when
the discharge indicator is set to
maintenance-free battery
32 Battery charge display
(on board charger only)
27
31
32
28
29
30
1007.GB
E 32
9 Display instrument (CANDIS) (o) post-10.2006
The instrument indicates:
In addition, service messages for the electronic components and parameter changes
are displayed.
Discharge status display
Setting limits for the additional "Warning" (27) and "Stop" (29) displays will depend on
the battery type set.
The available capacity is shown via 8 LED bars. The two bottom bars are always off.
The current battery capacity is shown by the illuminated LED bars.
8 bars correspond to full battery capacity, 1 bar corresponds to the minimum available
capacity.
If only one LED bar is lit, the battery capacity is almost depleted and the "Warning"
indicator (27) is lit. The battery must be charged immediately.
If no more LED bars are illuminated, the "Stop" indicator (29) lights up. Lifting is now
inhibited. The battery must be charged.
27 Attention pre-warning symbol,
battery charge required
28 Capacity display bars
Battery residual charge status
29 Stop symbol; lift cutout,
battery charge required
30 6 digit LCD display; hourmeter;
entry display; error display
31 T symbol appears during operation when
the discharge indicator is set to
maintenance-free battery
32 Battery charge display
(on board charger only)
27
31
32
28
29
30
