Jungheinrich ECE 220 User Manual

0708.GB
F 10

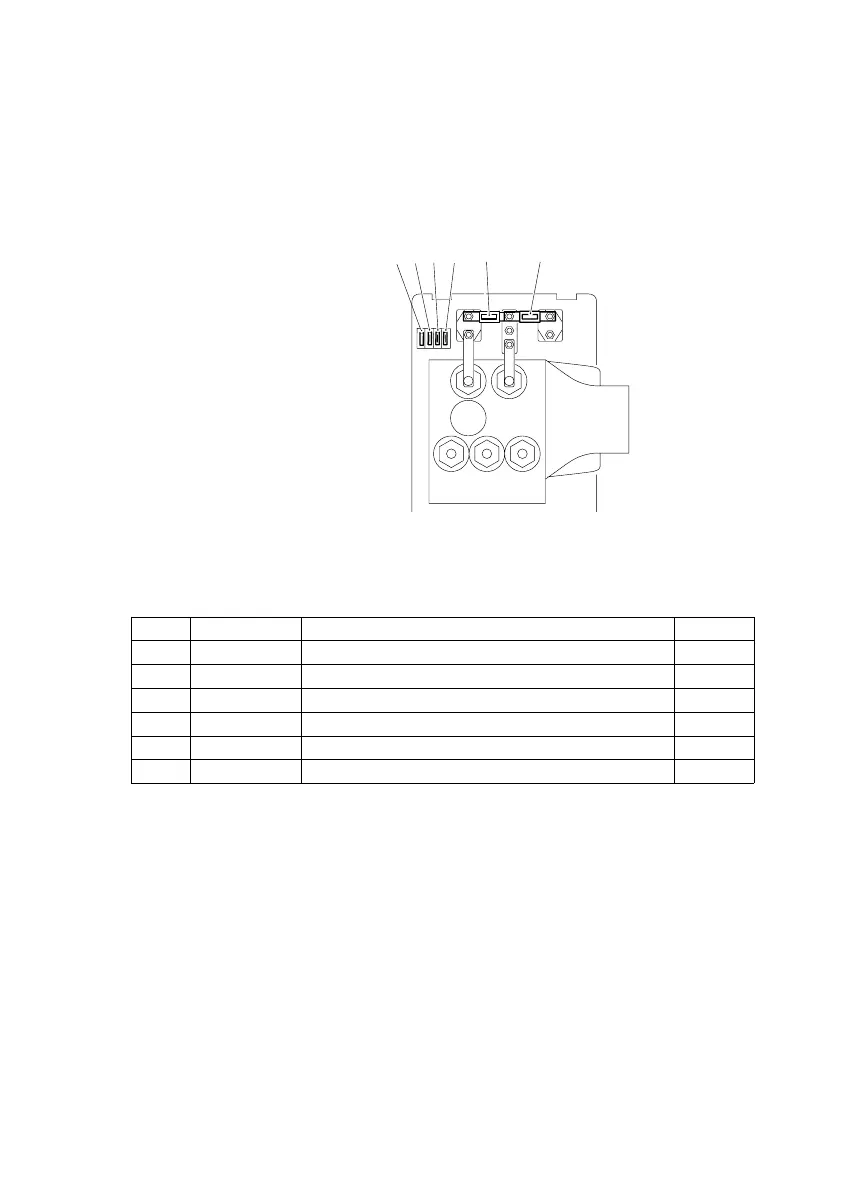

6.4 Checking electrical fuses
– Prepare the truck for maintenance and repairs
(see Chapter 6.1).
– Remove the front panel (see Section 6.3).
– Referring to the table, check all fuses for correct rating and damage; replace fuses
where required.
– Refit front panel
Item Model To protect: Rating
6 F17 Radio terminal (o)10A
7 3F1 Electric steering control fuse 30 A
8 F1 Overall control circuit fuse 10 A
9 6F1 Battery discharge indicator / battery hourmeter 2 A
10 1F1 Drive motor 300 A
11 2F1 Pump motor 150 A
67 89 10 11
0708.GB
F 10
6.4 Checking electrical fuses
– Prepare the truck for maintenance and repairs
(see Chapter 6.1).
– Remove the front panel (see Section 6.3).
– Referring to the table, check all fuses for correct rating and damage; replace fuses
where required.
– Refit front panel
Item Model To protect: Rating
6 F17 Radio terminal (o)10A
7 3F1 Electric steering control fuse 30 A
8 F1 Overall control circuit fuse 10 A
9 6F1 Battery discharge indicator / battery hourmeter 2 A
10 1F1 Drive motor 300 A
11 2F1 Pump motor 150 A
67 89 10 11
