F 9
0708.GB
6.3

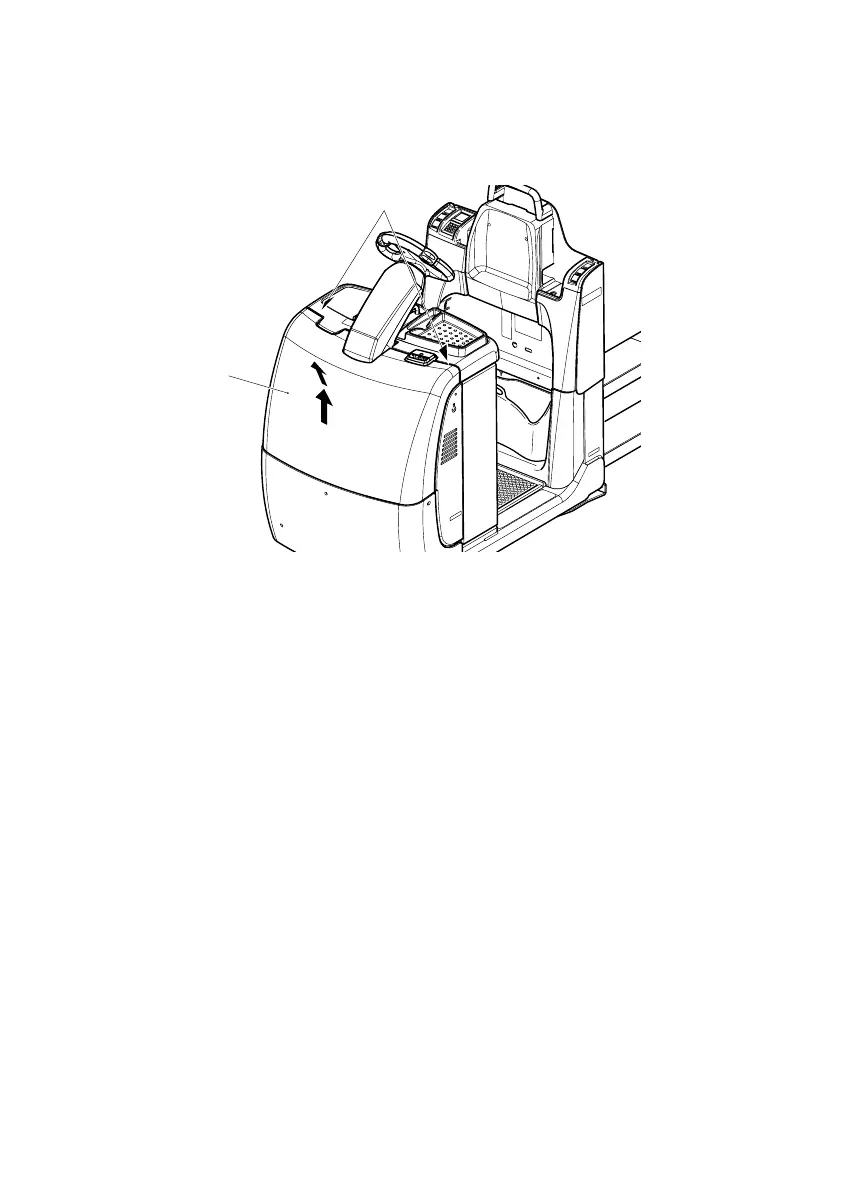

Remove the front pan
el
–
Open battery panel (see chapter D).
–
Remove the screws (5).
–
Lift up the front panel (4
) and put it to one side.
Z
Installation is th
e reverse order.
F
Do not drive the truck
unless the panels are clos
ed and properly locked.
4
5
F 9
0
708
.GB
6.3
R
emove the front pan
e
l
–
O
pen battery panel
(see chapter D).
–
R
emove the screws (5).
–
L
ift up the front panel (4
) and put it to one side.
Z
Installation is th
e reverse order.
F
Do not drive the truck
unless the panels are clos
ed and properly locked.
4
5
69
71
Table of Contents
Table of Contents
4
A Correct Application
10
B Truck Description
12
Application
12
Assemblies
13
Standard Version Specifications
14
Performance Data
14
Dimensions
15
Norms
17
Conditions of Use
17
Identification Points and Data Plates
18
Truck Data Plate
18
C Transport and Commissioning
20
Lifting by Crane
20
Securing the Truck During Transport
21
Using the Truck for the First Time
22
Operating the Truck Without Its Own Drive System
23
D Battery Maintenance, Charging & Replacement
24
Safety Regulations for Handling Acid Batteries
24
Battery Types
25
Exposing the Battery
25
Charging the Battery
26
Battery Removal and Installation
27
Safety Regulations for the Operation of Forklift Trucks
28
Controls and Displays
29
Starting up the Truck
33
Industrial Truck Operation
34
Safety Regulations for Truck Operation
34
Travel, Steering, Braking
35
Pedestrian Operation (O)
39
Lifting and Depositing Loads
40
2Nd Level Stockpicking (O)
42
Seat O (XL Only)
43
Parking the Truck Securely
43
Keypad (CANCODE) (O)
44
Code Lock
44
Travel Programs
46
Parameters
46
Parameter Settings
47
Travel Parameters
52
ISM (O)
56
Battery Discharge Indicator
57
Battery Discharge Indicator (T)
57
Display Instrument (CANDIS) (O) Pre-10.2006
58
Display Instrument (CANDIS) (O) Post-10.2006
59
Operating Hours Display
60
Power up Test
60
Troubleshooting
61
F Industrial Truck Maintenance
62
Operational Safety and Environmental Protection
62
Maintenance Safety Regulations
62
Servicing and Inspection
64
Maintenance Checklist
65
Lubrication Schedule
67
Consumables
68
Maintenance Instructions
69
Preparing the Truck for Maintenance and Repairs
69
Tightening the Wheel Nuts
69
Remove the Front Panel
70
Checking Electrical Fuses
71
Recommissioning
72
Decommissioning the Industrial Truck
72
Prior to Decommissioning
72
During Decommissioning
72
Returning the Truck to Operation after Decommissioning
73
Safety Checks to be Performed at Regular Intervals and Following any Unusual Incidents
73
Final De-Commissioning, Disposal
73
Jungheinrich Traction Battery
75
With Positive Tubular Plates Type Epzs and Epzb
75
7. Type Plate, Jungheinrich Traction Battery
80
Aquamatic/Bfs III Water Refilling System
81
Jungheinrich Traction Battery
86
And Epzv-BS
86
7. Type Plate, Jungheinrich Traction Battery
90
