E 13
1113.GB

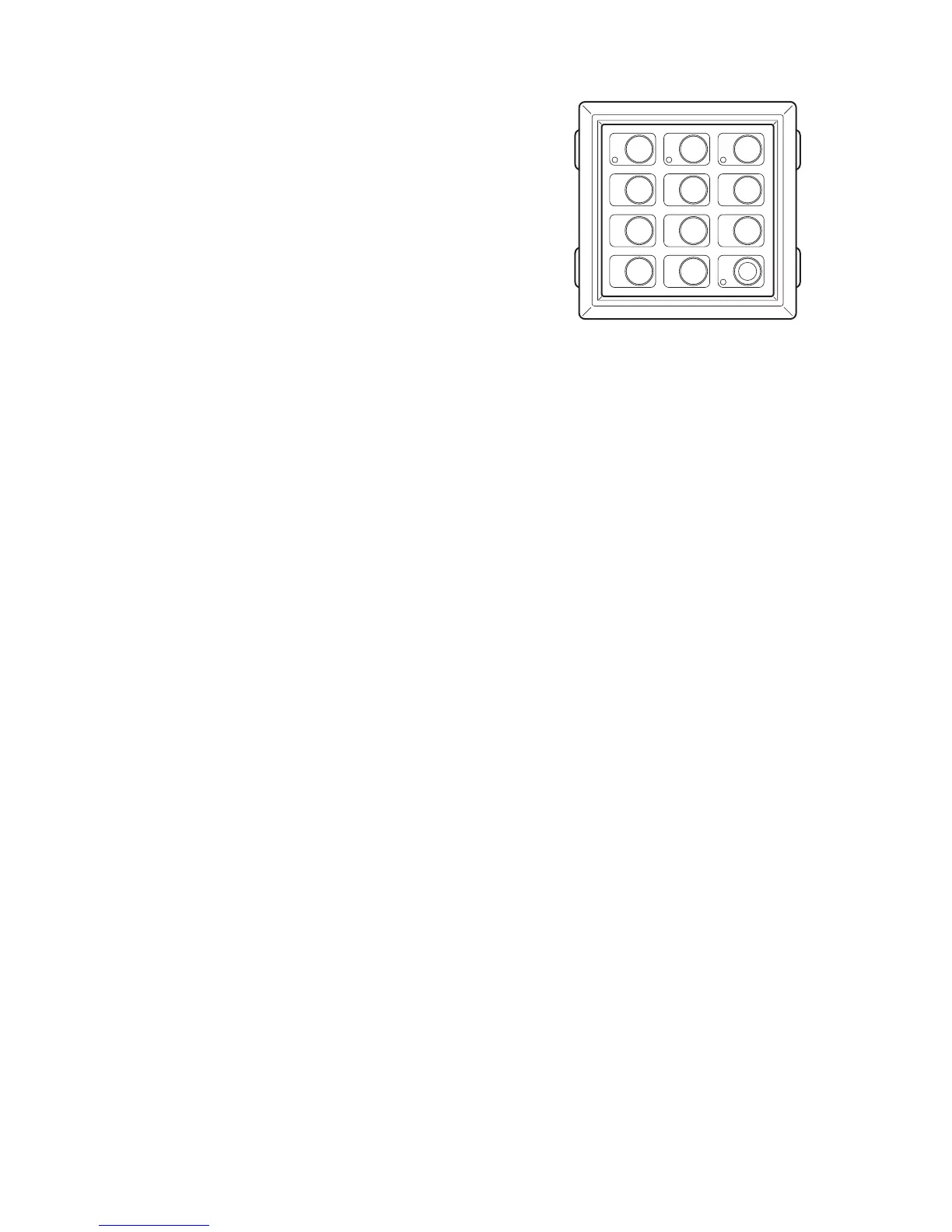

5 Keypad (CanCode) (o)
The keypad consists of 10 digit keys, a Set key
and a o key.
Activation of the travel programs via switches
1,2,3 is indicated by green LEDs.
The o key indicates operating statuses via a red/
green LED.
It contains the following functions:
– Code lock function (commissioning the truck).
– Travel program selection.
– Setting the travel and battery parameters, only
in conjunction with the display instrument
(CanDis (o)).
The o switch has top priority and resets the truck from any condition to its default
condition without modifying any settings.
5.1 Code Lock
When the correct code has been entered, the machine is ready for use. You can
allocate an individual code to each truck, driver or group of drivers.
Z
When delivered from the factory, the operator code (factory setting 2-5-8-0) is
indicated on a removable sticker.
M
When starting the truck for the first time, change the master and operating codes.
(refer to section 5.4)
123
456
789
0
Set
E 13
1113.GB
5 Keypad (CanCode) (o)
The keypad consists of 10 digit keys, a Set key
and a o key.
Activation of the travel programs via switches
1,2,3 is indicated by green LEDs.
The o key indicates operating statuses via a red/
green LED.
It contains the following functions:
– Code lock function (commissioning the truck).
– Travel program selection.
– Setting the travel and battery parameters, only
in conjunction with the display instrument
(CanDis (o)).
The o switch has top priority and resets the truck from any condition to its default
condition without modifying any settings.
5.1 Code Lock
When the correct code has been entered, the machine is ready for use. You can
allocate an individual code to each truck, driver or group of drivers.
Z
When delivered from the factory, the operator code (factory setting 2-5-8-0) is
indicated on a removable sticker.
M
When starting the truck for the first time, change the master and operating codes.
(refer to section 5.4)
123
456
789
0
Set
