E 25

1113.GB

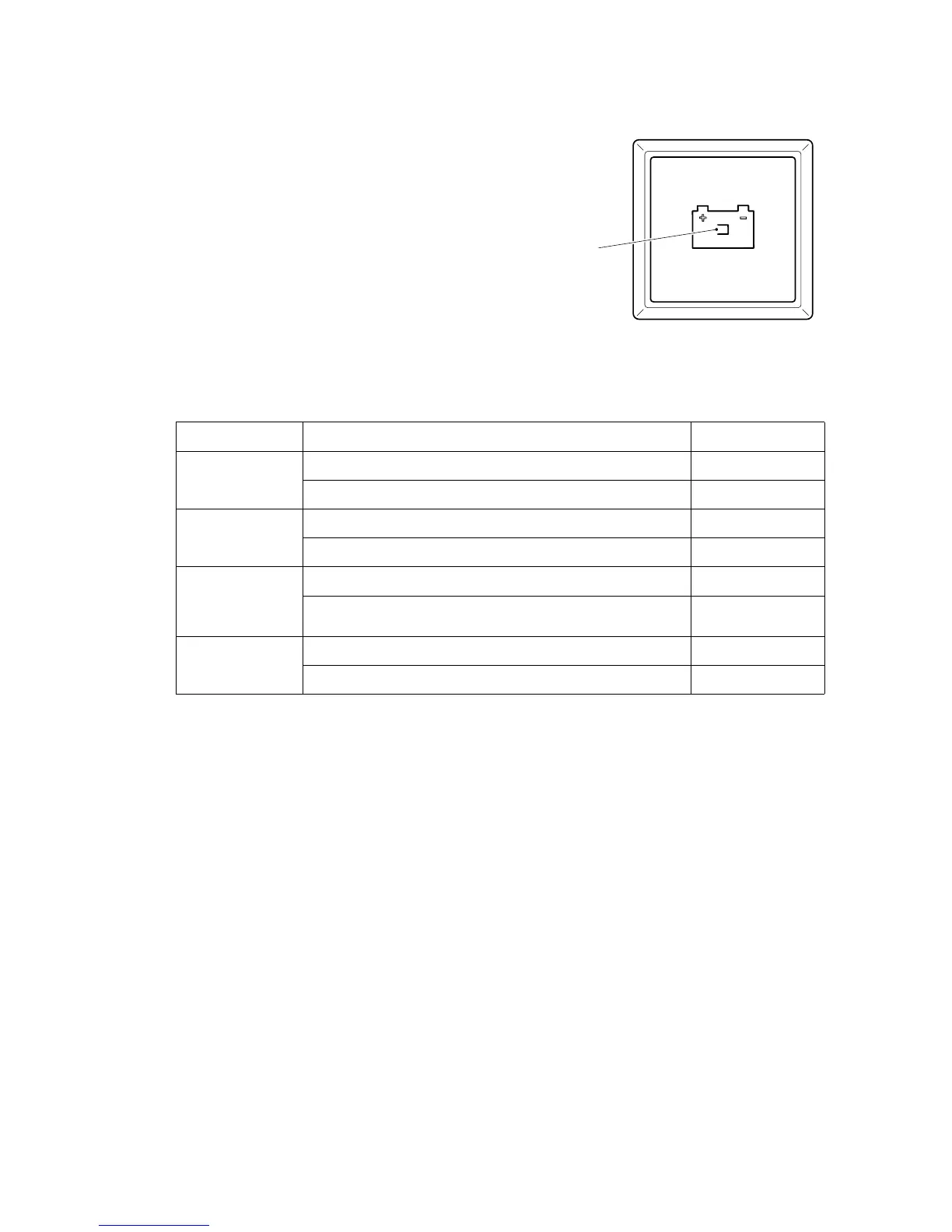

6 Battery Discharge Indicator (t)

When the truck has been released via the key

switch or CanCode, the battery charge status is

displayed.

The colours of the LEDs (9) represent the following conditions:

If the LED is red, load units can no longer be lifted. Lifting is only released when the

battery connected is at least 70 % charged.

If the charge status calculated when the truck is switched on is at least 70% of that of

a fully charged battery, the display is reset to 100%. The display reduces in

increments of 10% depending on the charge status. The displayed status is reduced

to a maximum of 10% within 3 minutes.

The displayed status cannot rise again during the present operation.

The status display is reset to 100% when the battery type is adjusted.

If the LED flashes red and the truck is not ready for operation, inform the

manufacturer's service department. Red flashing is a fault code of the truck controller.

The flashing sequence indicates the type of fault.

LED colour Rating

Green Standard battery residual capacity 40 - 100 %

Maintenance free battery residual capacity 60 - 100 %

Orange Standard battery residual capacity 30 - 40 %

Maintenance free battery residual capacity 50 - 60 %

Flashing

green/orange

1Hz

Standard battery residual capacity 20 - 30 %

Maintenance free battery residual capacity 40 - 50 %

Red Standard battery residual capacity 0 - 20 %

Maintenance free battery residual capacity 0 - 40 %
