7 Display instrument (CanDis) (o)
The instrument indicates:
In addition, service messages for the electronic components and parameter changes
are displayed.
Discharge status display
Setting limits for the additional “Warning” (26) and “Stop” (23) displays will depend on
the battery type.
The available capacity is shown via 8 LED bars.
The current battery capacity is shown by the illuminated LED bars. 8 bars correspond
to full battery capacity, 1 bar corresponds to the minimum available capacity.
If only one LED bar is lit, the battery capacity is almost depleted and the “Warning”
indicator (26) is lit.
If no more LED bars are illuminated, the “Stop” indicator (23) lights up. Lifting is now
inhibited. The battery must be charged.

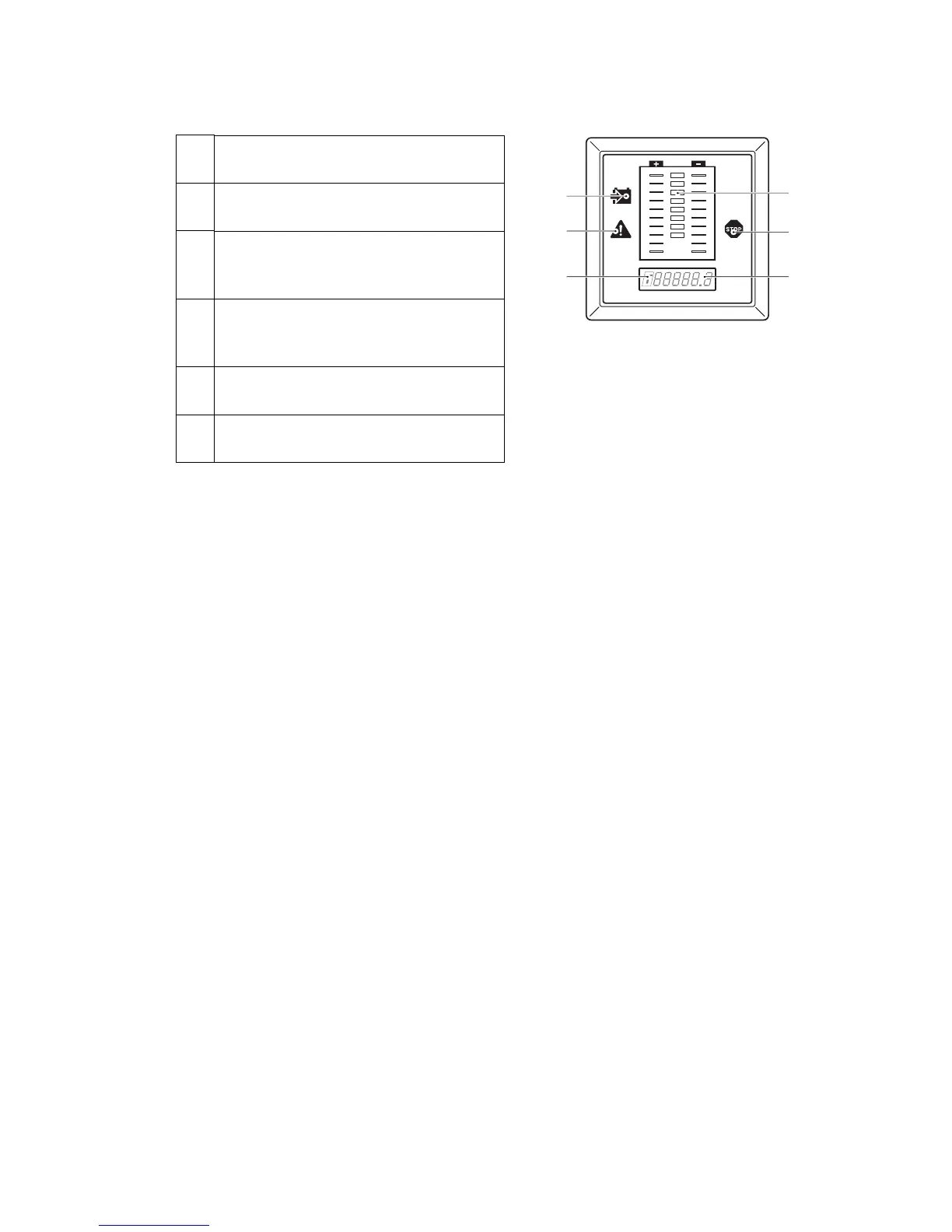

22 Capacity display bars
Battery residual charge
23 Stop symbol; lift cutout,
battery charge required
24 6 digit LCD display;
hourmeter; entry display;
error display
25 T symbol appears during operation
when the discharge indicator is set to
maintenance-free battery
26 Attention pre-warning symbol,
battery charge required
27 Battery charge display
(on board charger only)
26
25
27
22
23
24
