JVC CA-MXG9BK User Manual

i
{
{
|
{
RX-MXG9BK
i
You can use Dolby Pro Logic mode or 3ch Logic mode. You can use these two modes either with or without a single center speaker. When using
without a center speaker, you can change the panoramic shifting speakers inside the cabinet to function like the center speaker. The speakers shift
according to the respective DAP program.
Changing the Speaker Angle

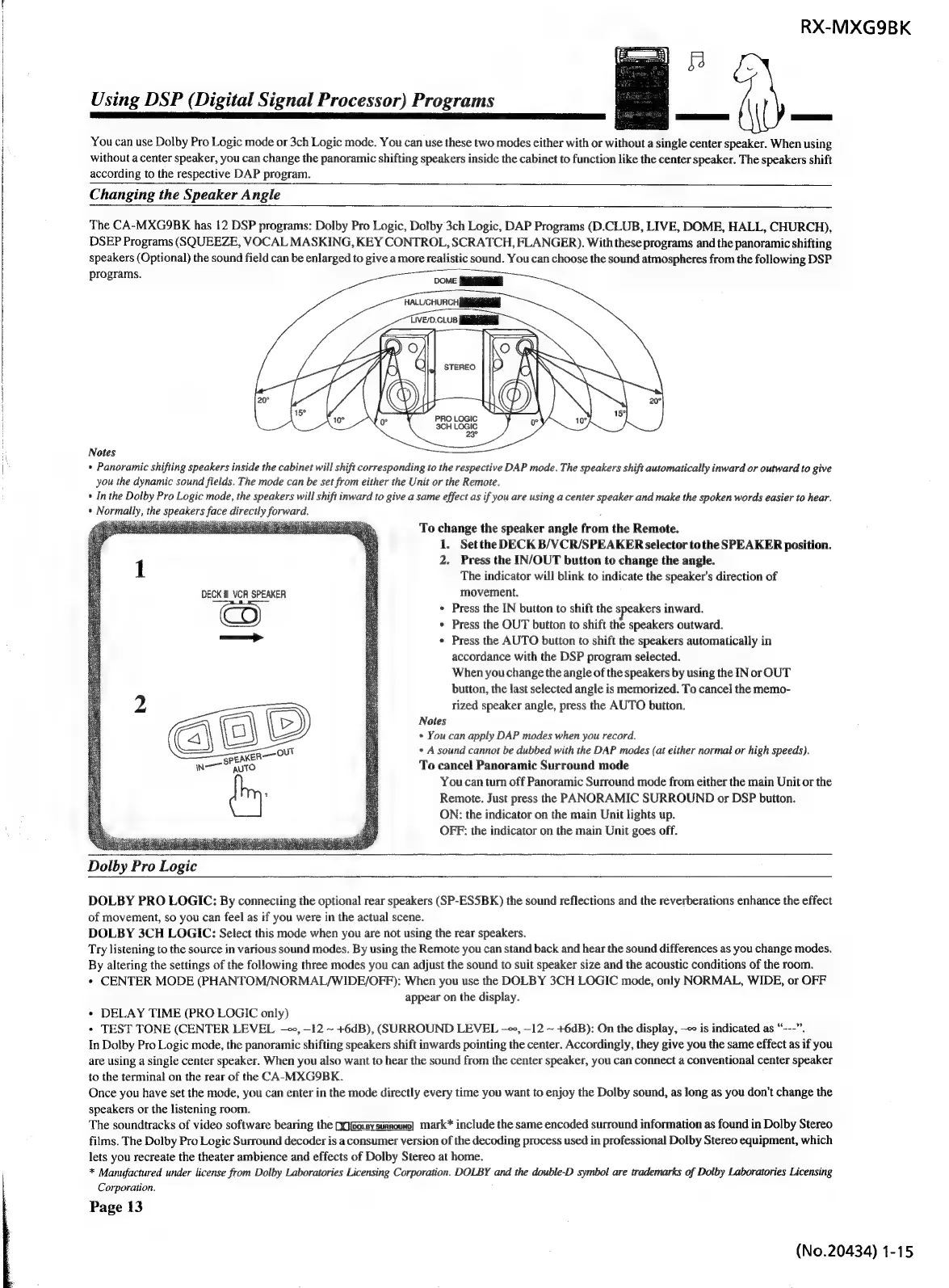

Using DSP (Digital Signal Processor) Programs
The CA-MXG9BK has 12 DSP programs: Dolby Pro Logic, Dolby 3ch Logic, DAP Programs (D.CLUB, LIVE, DOME, HALL, CHURCH),
DSEP Programs (SQUEEZE, VOCAL MASKING, KEY CONTROL, SCRATCH, FLANGER). With these programs and the panoramic shifting
speakers (Optional) the sound field can be enlarged to give a more realistic sound. You can choose the sound atmospheres from the following DSP
programs.
PRO LOGIC
3CH LOGIC
23°
Notes
+ Panoramic shifting speakers inside the cabinet will shift corresponding to the respective DAP mode. The speakers shift automatically inward or outward to give
you the dynamic sound fields. The mode can be set from either the Unit or the Remote.
* In the Dolby Pro Logic mode, the speakers will shift inward to give a same effect as if you are using a center speaker and make the spoken words easier to hear.
* Normally, the speakers face directly forward
To change the speaker angle from the Remote.
1. Setthe DECK B/VCR/SPEAKER selector tothe SPEAKER position.
2. Press the IN/OUT button to change the angle.
The indicator will blink to indicate the speaker's direction of
DECK B VCR SPEAKER movement.
Press the IN button to shift the speakers inward.
Press the OUT button to shift the speakers outward.
¢ Press the AUTO button to shift the speakers automatically in
accordance with the DSP program selected.
When you change the angle of the speakers by using the IN orOUT
button, the last selected angle is memorized. To cancel the memo-
rized speaker angle, press the AUTO button.
Notes
* You can apply DAP modes when you record.
« A sound cannot be dubbed with the DAP modes (at either normal or high speeds).
To cancel Panoramic Surround mode
You can turn off Panoramic Surround mode from either the main Unit or the
Remote. Just press the PANORAMIC SURROUND or DSP button.
ON: the indicator on the main Unit lights up.
OFF: the indicator on the main Unit goes off.
e
Dolby Pro Logic
DOLBY PRO LOGIC: By connecting the optional rear speakers (SP-ESSBK) the sound reflections and the reverberations enhance the effect
of movement, so you can feel as if you were in the actual scene.
DOLBY 3CH LOGIC: Select this mode when you are not using the rear speakers.
Try listening to the source in various sound modes. By using the Remote you can stand back and hear the sound differences as you change modes.
By altering the settings of the following three modes you can adjust the sound to suit speaker size and the acoustic conditions of the room.
* CENTER MODE (PHANTOM/NORMAL/WIDE/OFF): When you use the DOLBY 3CH LOGIC mode, only NORMAL, WIDE, or OFF
appear on the display.
*« DELAY TIME (PRO LOGIC only)
« TEST TONE (CENTER LEVEL -e, —-12 ~ +6dB), (SURROUND LEVEL -», —12 ~ +6dB): On the display, —<e is indicated as “---”.
In Dolby Pro Logic mode, the panoramic shifting speakers shift inwards pointing the center. Accordingly, they give you the same effect as if you
are using a single center speaker. When you also want to hear the sound from the center speaker, you can connect a conventional center speaker
to the terminal on the rear of the CA-MXG9BK.
Once you have set the mode, you can enter in the mode directly every time you want to enjoy the Dolby sound, as long as you don’t change the
speakers or the listening room.
The soundtracks of video software bearing the Q{j{Gaeysunnou] mark* include the same encoded surround information as found in Dolby Stereo
films. The Dolby Pro Logic Surround decoder is a consumer version of the decoding process used in professional Dolby Stereo equipment, which
lets you recreate the theater ambience and effects of Dolby Stereo at home.
* Manufactured under license from Dolby Laboratories Licensing Corporation. DOLBY and the double-D symbol are trademarks of Dolby Laboratories Licensing
Corporation.
Page 13
(No.20434) 1-15
