RX-MXG9BK

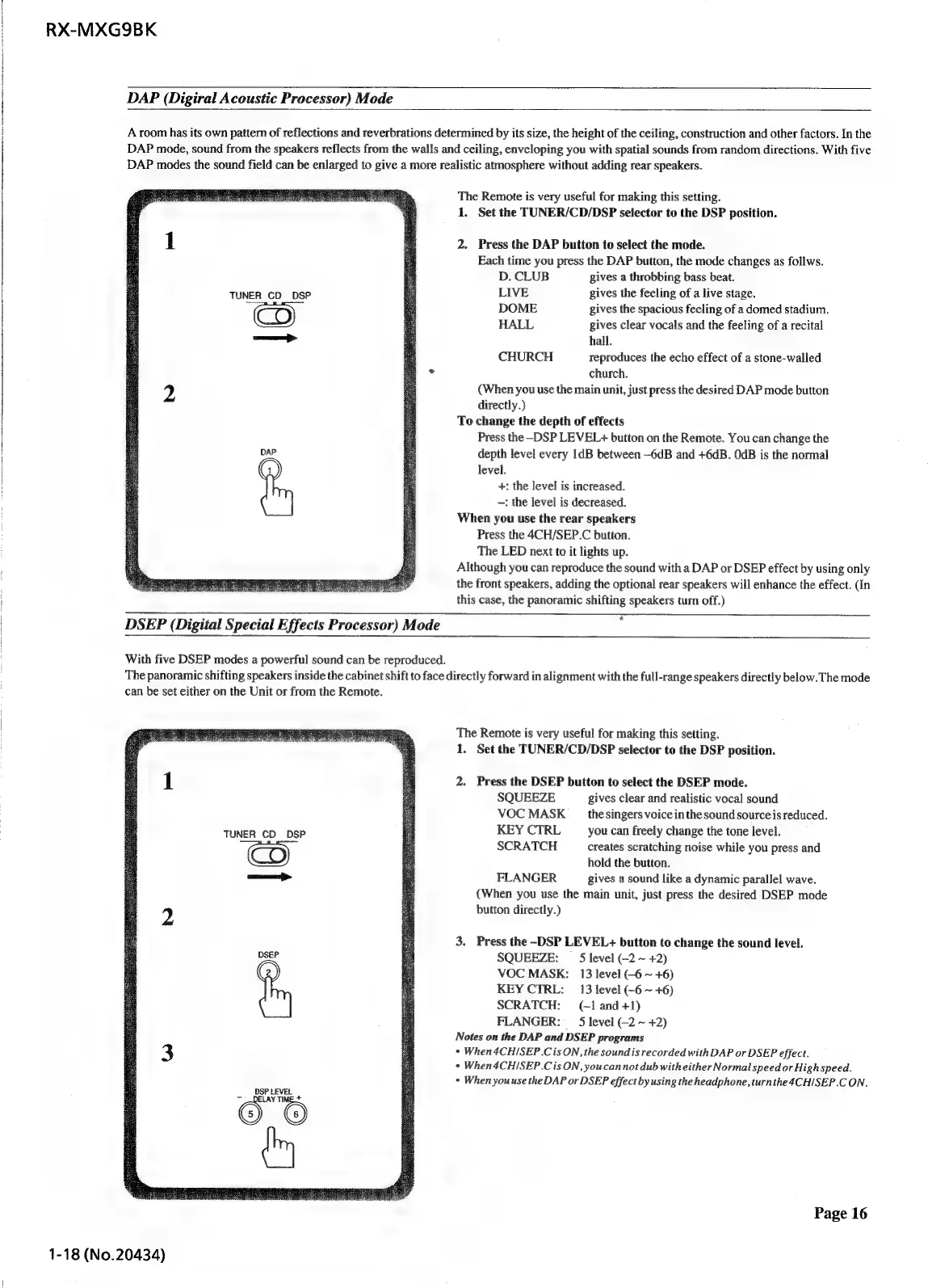

DAP (Digiral Acoustic Processor) Mode
A room has its own pattern of reflections and reverbrations determined by its size, the height of the ceiling, construction and other factors. In the
DAP mode, sound from the speakers reflects from the walls and ceiling, enveloping you with spatial sounds from random directions. With five
DAP modes the sound field can be enlarged to give a more realistic atmosphere without adding rear speakers.
TUNER CD DSP
DSEP (Digital Special Effects Processor) Mode
With five DSEP modes a powerful sound can be reproduced.
The Remote is very useful for making this setting.
1. Set the TUNER/CD/DSP selector to the DSP position.
2. Press the DAP button to select the mode.
Each time you press the DAP button, the mode changes as follws.
D. CLUB gives a throbbing bass beat.
LIVE gives the feeling of a live stage.
DOME gives the spacious feeling of a domed stadium.
HALL gives clear vocals and the feeling of a recital
hall.
CHURCH reproduces the echo effect of a stone-walled
church.
(When you use the main unit, just press the desired DAP mode button
directly.)
To change the depth of effects
Press the -DSP LEVEL+ button on the Remote. You can change the
depth level every 1dB between —6dB and +6dB. OdB is the normal
level.
+: the level is increased.
—: the level is decreased.
When you use the rear speakers
Press the 4CH/SEP.C button.
The LED next to it lights up.
Although you can reproduce the sound with a DAP or DSEP effect by using only
the front speakers, adding the optional rear speakers will enhance the effect. (In
this case, the panoramic shifting speakers turn off.)
ry
‘The panoramic shifting speakers inside the cabinet shift to face directly forward in alignment with the full-range speakers directly below. The mode
can be set either on the Unit or from the Remote.
TUNER CD DSP
DSP LEVEL
4
1-18 (No.20434)
The Remote is very useful for making this setting.
1. Set the TUNER/CD/DSP selector to the DSP position.
2. Press the DSEP button to select the DSEP mode.
SQUEEZE gives clear and realistic vocal sound
VOC MASK __ thesingers voice inthe sound source is reduced.
KEY CTRL you can freely change the tone level.
SCRATCH creates scratching noise while you press and
hold the button.
FLANGER gives a sound like a dynamic parallel wave.
(When you use the main unit, just press the desired DSEP mode
button directly.)
3. Press the -DSP LEVEL+ button to change the sound level.
SQUEEZE: 5 level (-2 ~ +2)
VOC MASK: 13 level (-6 ~ +6)
KEY CTRL: 13 level (-6 ~ +6)
SCRATCH: (-1 and +1)
FLANGER: _ 5 level (—2 ~ +2)
Notes on the DAP and DSEP programs
° When4CHISEP.Cis ON, the sound is recorded with DAP or DSEP effect.
° When 4CHISEP.C is ON, youcan not dub with either Normal speed or High speed.
* When youuse the DAP or DSEP effect by using the headphone, turn the 4CHISEP.C ON.
