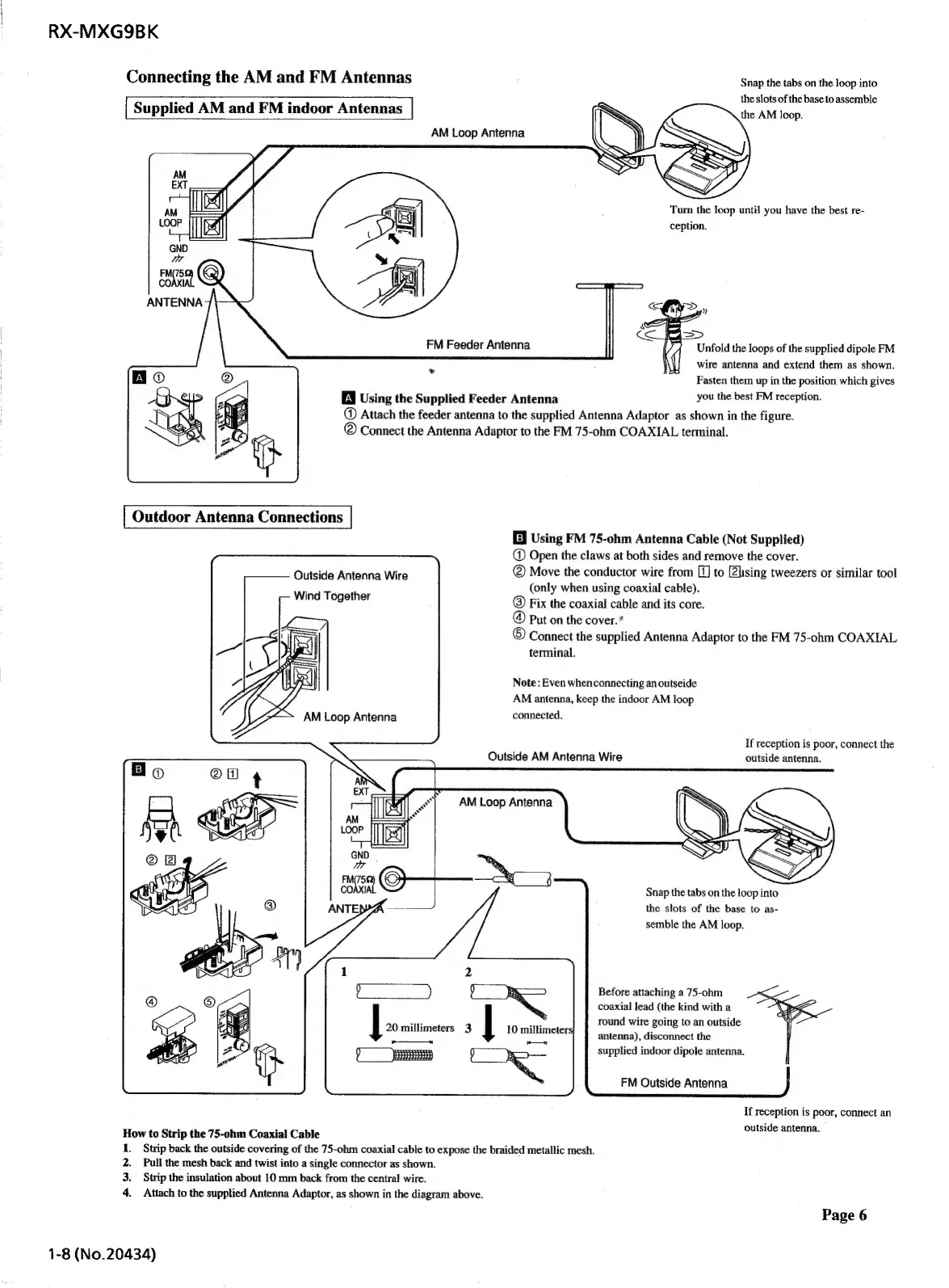

Connecting the AM and FM Antennas
| Supplied AM and FM indoor Antennas |
Snap the tabs on the loop into
the slots of the base to assemble
the AM loop.
AM Loop Antenna
Turn the loop until you have the best re-
ception.
FM Feeder Antenna Unfold the loops of the supplied dipole FM
wire antenna and extend them as shown.
Fasten them up in the position which gives
E¥ Using the Supplied Feeder Antenna you the best FM reception.
© Attach the feeder antenna to the supplied Antenna Adaptor as shown in the figure.
® Connect the Antenna Adaptor to the FM 75-ohm COAXIAL terminal.
2
EJ Using FM 75-ohm Antenna Cable (Not Supplied)
@ Open the claws at both sides and remove the cover.
@ Move the conductor wire from [1] to 2hsing tweezers or similar tool
(only when using coaxial cable).
@ Fix the coaxial cable and its core.
@ Put on the cover.’
© Connect the supplied Antenna Adaptor to the FM 75-ohm COAXIAL
terminal.
Outside Antenna Wire
Wind Together
Note: Even whenconnecting an outseide
AM antenna, keep the indoor AM loop
connected.
If reception is poor, connect the
Outside AM Antenna Wire outside antenna.
AM Loop Antenna
Snap the tabs on the loop into
the slots of the base to as-
semble the AM loop.
Before attaching a 75-ohm
coaxial lead (the kind with a
round wire going to an outside
antenna), disconnect the
supplied indoor dipole antenna.
FM Outside Antenna
If reception is poor, connect an
How to Strip the 75-ohm Coaxial Cable eeetneetwene
1. Strip back the outside covering of the 75-ohm coaxial cable to expose the braided metallic mesh.
2. Pull the mesh back and twist into a single connector as shown.
3. Strip the insulation about 10 mm back from the central wire.
4. Attach to the supplied Antenna Adaptor, as shown in the diagram above.
