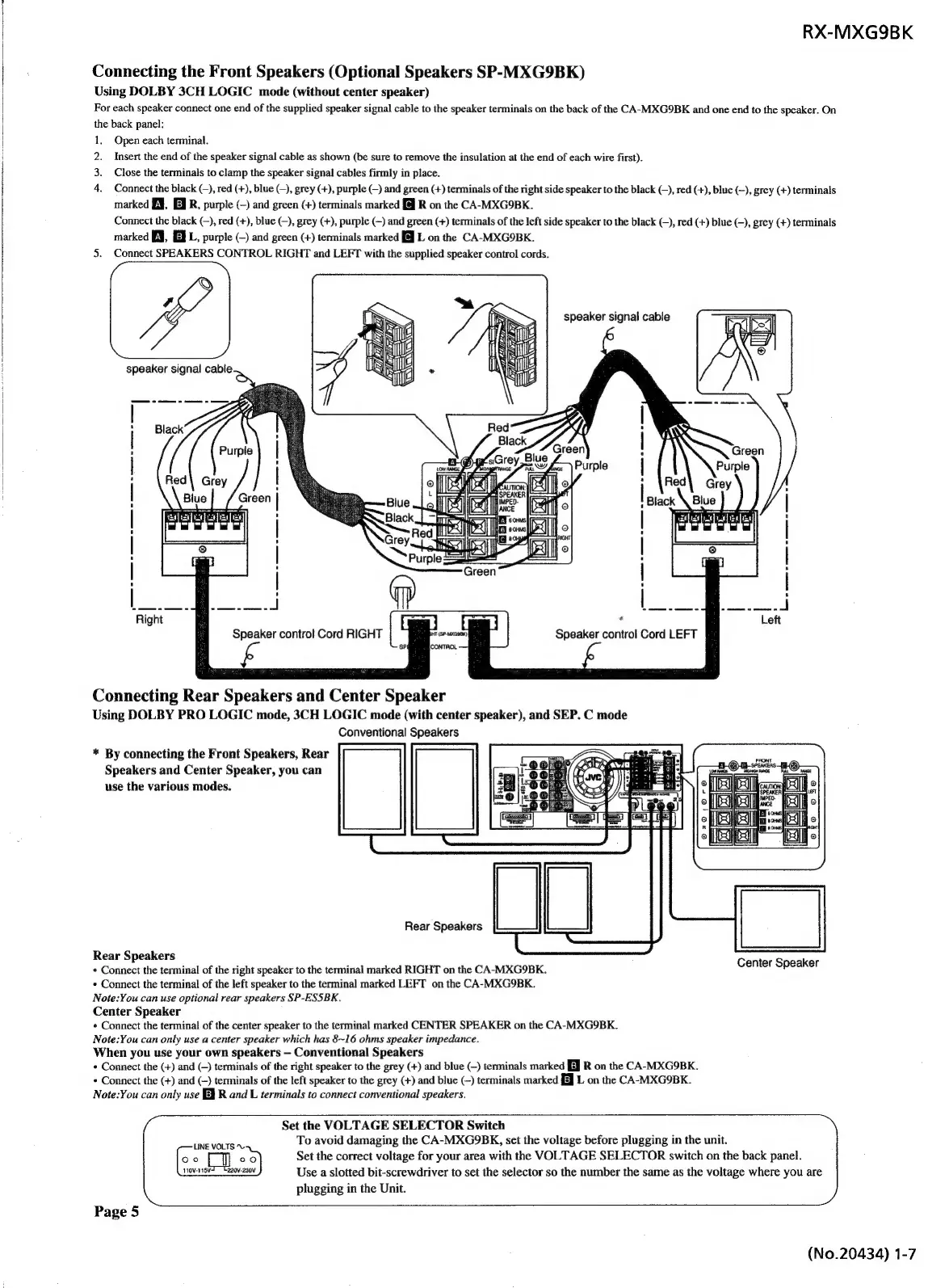

RX-MXG9BK
Connecting
the
Front
Speakers
(Optional
Speakers
SP-MXG9BK)
Using
DOLBY
3CH
LOGIC
mode
(without
center
speaker)
For
each
speaker
connect
one
end
of
the
supplied
speaker
signal
cable
to
the
speaker
terminals
on
the
back
of
the
CA-MXG9BK
and
one
end
to
the
speaker.
On
the
back
panel:
1.
Open
each
terminal.
2.
Insert
the
end
of
the
speaker
signal
cable
as
shown
(be
sure
to
remove
the
insulation
at
the
end
of
each
wire
first).
3.
Close
the
terminals
to
clamp
the
speaker
signal
cables
firmly
in
place.
4.
Connect
the
black
(),
red
(+),
blue
(—),
grey
(+),
purple
(—)
and
green
(+)
terminals
of
the
right
side
speaker
to
the
black
(—),
red
(+),
blue
(-),
grey
(+)
terminals
marked
EY,
Eq
R,
purple
(—)
and
green
(+)
terminals
marked
[J
R
on
the
CA-MXG9BK.
Connect
the
black
(-),
red
(+),
blue
(-),
grey
(+),
purple
(—)
and
green
(+)
terminals
of
the
left
side
speaker
to
the
black
(-),
red
(+)
blue
(-),
grey
(+)
terminals
marked
[§,
EJ
L,
purple
(-)
and
green
(4)
terminals
marked
[J
L
on
the
CA-MXG9BK.
5.
Connect
SPEAKERS
CONTROL
RIGHT
and
LEFT
with
the
supplied
speaker
control
cords.
Y7
=
77
—=
VT
Masel
=)
KET,
Sk
Hi
7B
tt
Biff
=
LE,
7
speaker
signal
cable
Tin
ed.
ean
©
2
Connecting
Rear
Speakers
and
Center
Speaker
Using
DOLBY
PRO
LOGIC
mode,
3CH
LOGIC
mode
(with
center
speaker),
and
SEP.
C
mode
Conventional
Speakers
*
By
connecting
the
Front
Speakers,
Rear
Speakers
and
Center
Speaker,
you
can
use
the
various
modes.
@20;0r0
Rear
Speakers
Rear
Speakers
¢
Connect
the
terminal
of
the
right
speaker
to
the
terminal
marked
RIGHT
on
the
CA-MXG9BK.
Center
Speaker
*
Connect
the
terminal
of
the
left
speaker
to
the
terminal
marked
LEFT
on
the
CA-MXG9BK.
Note:You
can
use
optional
rear
speakers
SP-ESSBK.
Center
Speaker
*
Connect
the
terminal
of
the
center
speaker
to
the
terminal
marked
CENTER
SPEAKER
on
the
CA-MXG9BK.
Note:You
can
only
use
a
center
speaker
which
has
8~16
ohms
speaker
impedance.
When
you
use
your
own
speakers
Conventional
Speakers
¢
Connect
the
(+)
and
(—)
terminals
of
the
right
speaker
to
the
grey
(+)
and
blue
(-)
terminals
marked
Ey
R
on
the
CA-MXG9BK.
*
Connect
the
(+)
and
(—)
terminals
of
the
left
speaker
to
the
grey
(+)
and
blue
(-)
terminals
marked
Eq
L
on
the
CA-MXG9BK.
Note:You
can
only
use
EJ
R
and
L
terminals
to
connect
conventional
speakers.
Set
the
VOLTAGE
SELECTOR
Switch
ine
NOLS
sy
To
avoid
damaging
the
CA-MXG9BK,
set
the
voltage
before
plugging
in
the
unit.
|
oo
°
0)
Set
the
correct
voltage
for
your
area
with
the
VOLTAGE
SELECTOR
switch
on
the
back
panel.
LO
ee
Use
a
slotted
bit-screwdriver
to
set
the
selector
so
the
number
the
same
as
the
voltage
where
you
are
plugging
in
the
Unit.
Page
5
(No.20434)
1-7
