Model 6517B Electrometer User’s Manual Section 3: Basic Measurements

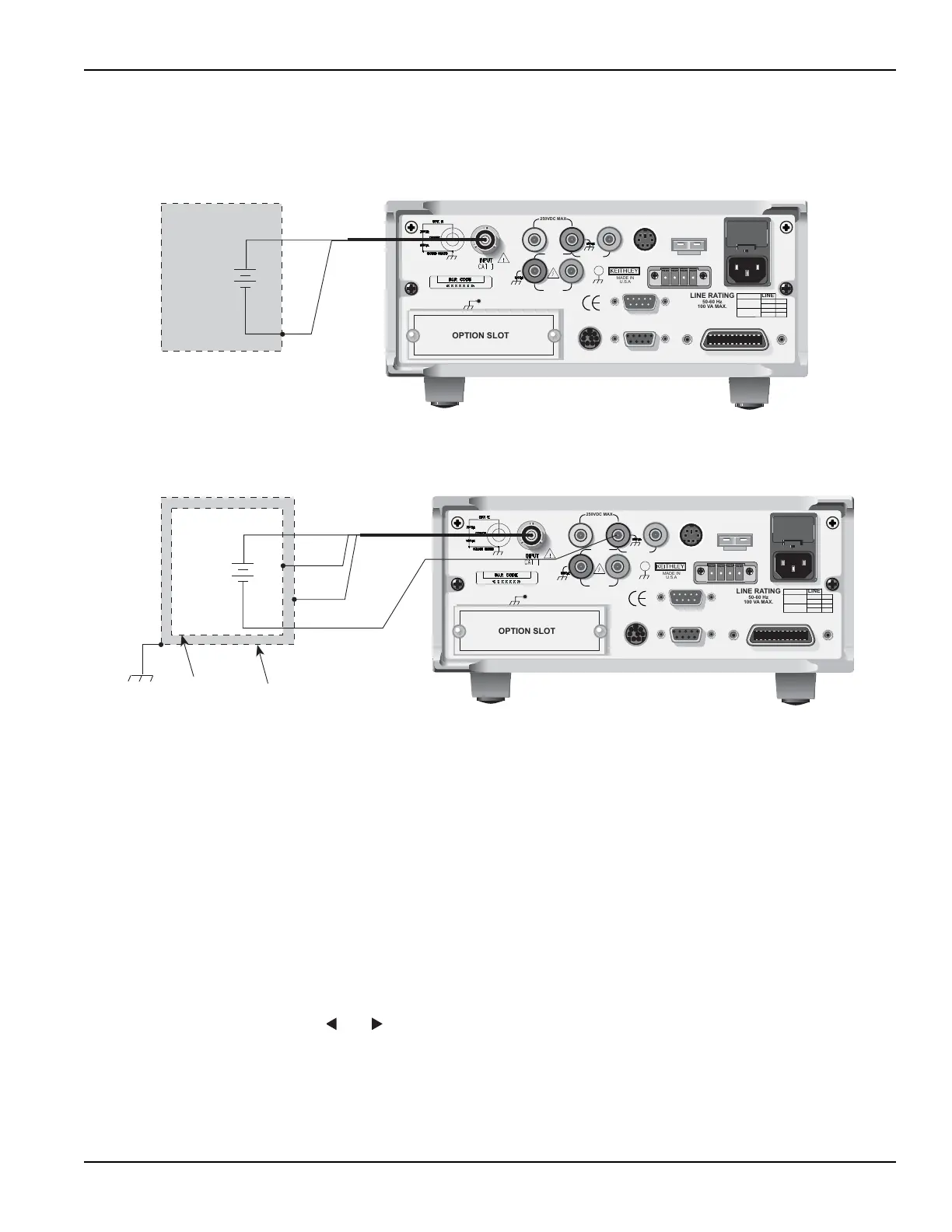

Figure 3-1

Voltage measurements

Guarding

Guarding should be used for high impedance (>10

Ω) voltage measurements and for voltage

measurements when using long input cables. In a high impedance circuit, guarding greatly

reduces leakage currents. When using long input cables, guarding cancels the effects of cable

capacitance that can significantly slow down the measurement response time.

When GUARD is enabled, the INPUT triax connector

is reconfigured to apply the guard potential

to the inner shell of the INPUT triax connector. With this configuration, the COMMON banana jack

is used for input low. Figure 3-1 shows both the guarded and unguarded configurations for the

INPUT connector.

Perform the following steps to enable or disable guard:

1. Press CONFIG an

d then V to display the volts configuration menu.

2. Use the and keys to place the cursor (blinking menu item) on GUARD and press

ENTER.

3. Place the cursor on the desired selection (OFF to disable or ON to enable) and press

ENTER.

4. Use the EXIT key to back out of the menu.
