Model 6517B Electrometer User’s Manual Section 3: Basic Measurements
Figure 3-4
Resistivity measurements
Charge measurements
Assuming “BENCH” reset conditions, the basic procedure is as follows:
1. With zero check enabled (“ZeroCheck” display
ed), select the coulombs function by pressing
Q.
2. Select a measurement range or use autoranging:
a. To automatically select the most sensitive range, enable autorange. The AUTO key
enables and disables autorange. When enabled, the AUTO annunciator is on.
b. For manual ranging, use the RANGE keys ( and ) to select a measurement range
consistent with the expected charge reading.
3. Connect the test cable (see Figure 3-5) to the input of the Model 6517B. With the input
open, disable zero check. If needed, press REL to zero the display.
4. Connect the instrument to the charge to be measured as shown in Figure 3-5.
CAUTION Do not apply more than 250V peak (DC to 60Hz) or instrument damage may
oc
cur.
5. Take a reading from the display. The reading can be reset to zero by enabling zero check. If
you
wish to have the reading reset to zero when a specified charge level is reached, enable
Auto Discharge as explained in the following paragraph.

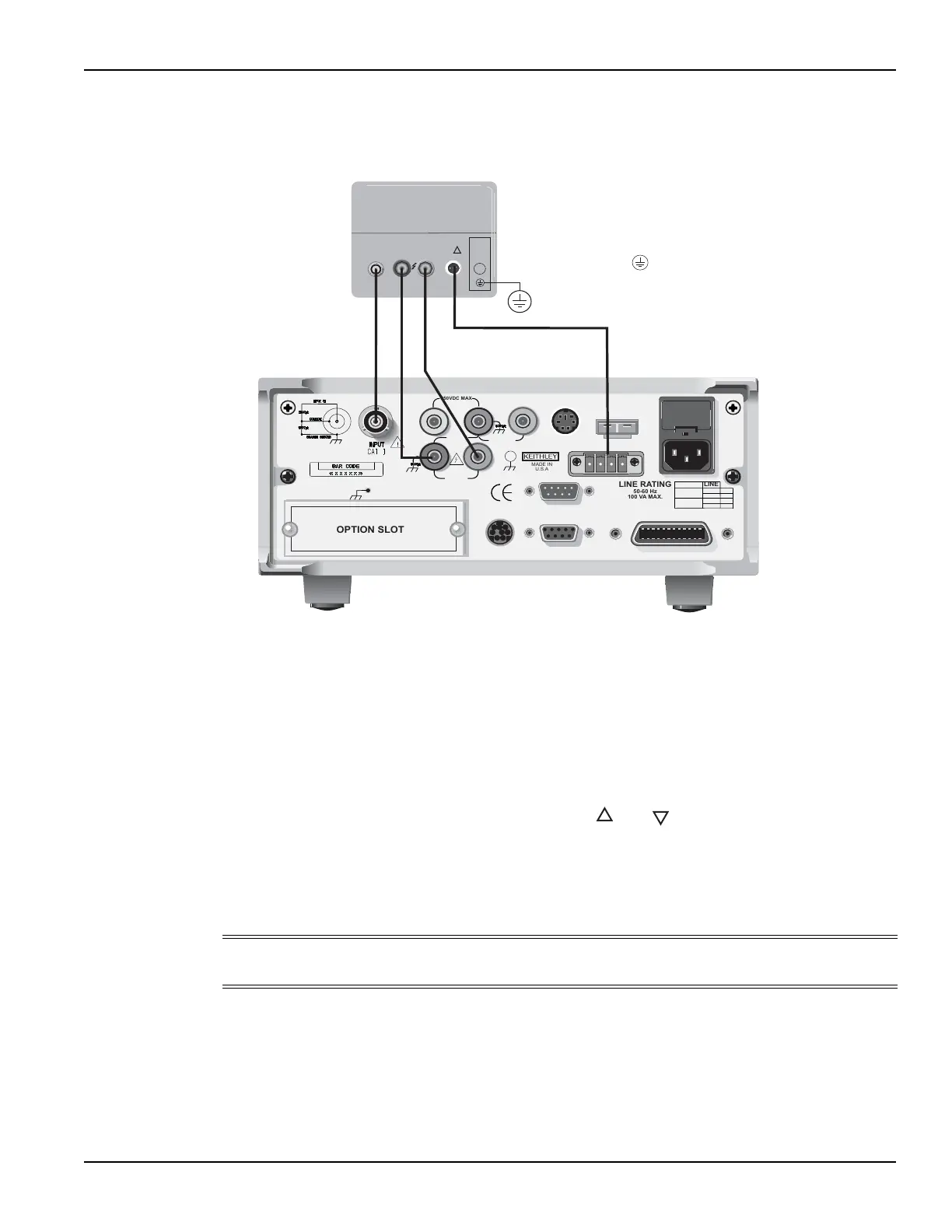

Warning: Connect of fixture to
