Kenmore 385.16231 User Manual

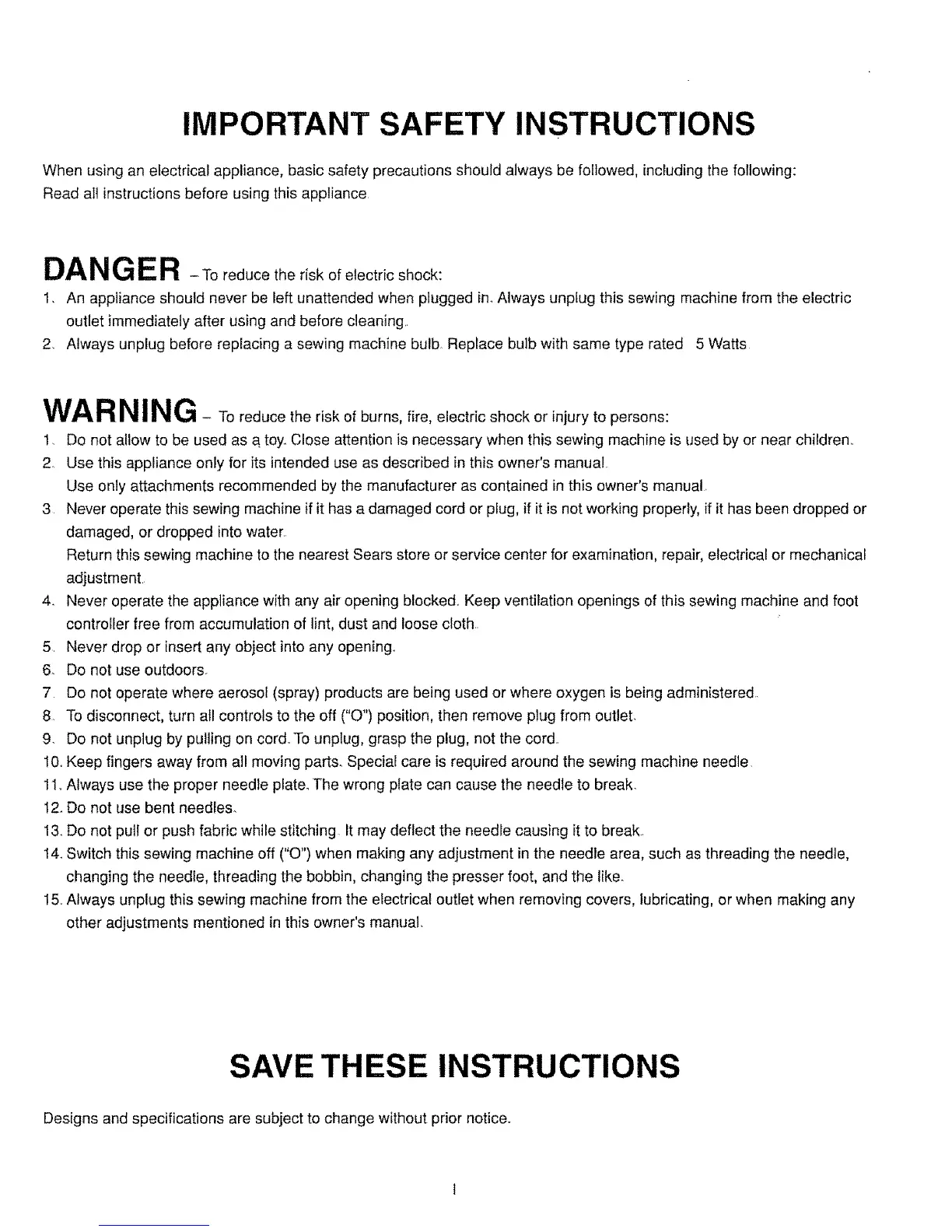

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed, including the following:
Read all instructions before using this appliance
DANGER - To reduce the risk of electric shock:
1. An appliance should never be left unattended when plugged in_Always unplug this sewing machine from the electric
outlet immediately after using and before cleaning.
2. Always unplug before replacing a sewing machine bulb Replace bulb with same type rated 5 Watts
WARNING - To reduce the risk of burns, fire, electric shock or injury to persons:
1. Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used by or near children.
2 Use this appliance only for its intended use as described in this owner's manual
Use only attachments recommended by the manufacturer as contained in this owner's manual
3 Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water
Return this sewing machine to the nearest Sears store or service center for examination, repair, electrical or mechanical
adjustment
4. Never operate the appliance with any air opening blocked.. Keep ventitation openings of this sewing machine and foot
controller free from accumulation of lint, dust and loose cloth..
5. Never drop or insert any object into any opening°
6. Do net use outdoors_
7 Do not operate where aerosol (spray) products are being used or where oxygen is being administered
8. To disconnect, turn all controls to the off ("O") position, then remove plug from outlet,
9. Do not unplug by pulling on cord.. To unplug, grasp the plug, not the cord..
10. Keep fingers away from al! moving parts_ Special care is required around the sewing machine needle
11,.Always use the proper needle plate° The wrong plate can cause the needle to break.
12. Do not use bent needles.
13. Do net pull or push fabric while stitching It may deflect the needle causing it to break.
14_Switch this sewing machine oft ("O") when making any adjustment in the needle area, such as threading the needle,
changing the needle, threading the bobbin, changing the presser foot, and the like.
15..Always unplug this sewing machine from the electrical outlet when removing covers, lubricating, or when making any
other adjustments mentioned in this owner's manual.
SAVE THESE INSTRUCTIONS
Designs and specifications are subject to change without prior notice_

Kenmore 385.16231 Specifications

General

Brand	Kenmore
Model	385.16231
Type	Mechanical
Needle Type	15x1
Stitch Width	5mm
Stitch Length	4mm
Buttonhole Styles	1-step
Needle Threader	Yes
Mechanical	Yes
Top Loading Bobbin	Yes
Bobbin Type	Top Loading
Stitch Options	Straight, Zigzag
Presser Feet	Buttonhole
Speed Control	Variable

Summary

Important Safety Instructions

DANGER: Reduce Risk of Electric Shock

Instructions to reduce the risk of electric shock from the sewing machine.

WARNING: Reduce Risk of Injury

Precautions to prevent burns, fire, electric shock, or injury to persons.
