PERIODIC SERVICE 10-17
069OA24A 069OA25A 069OA26A

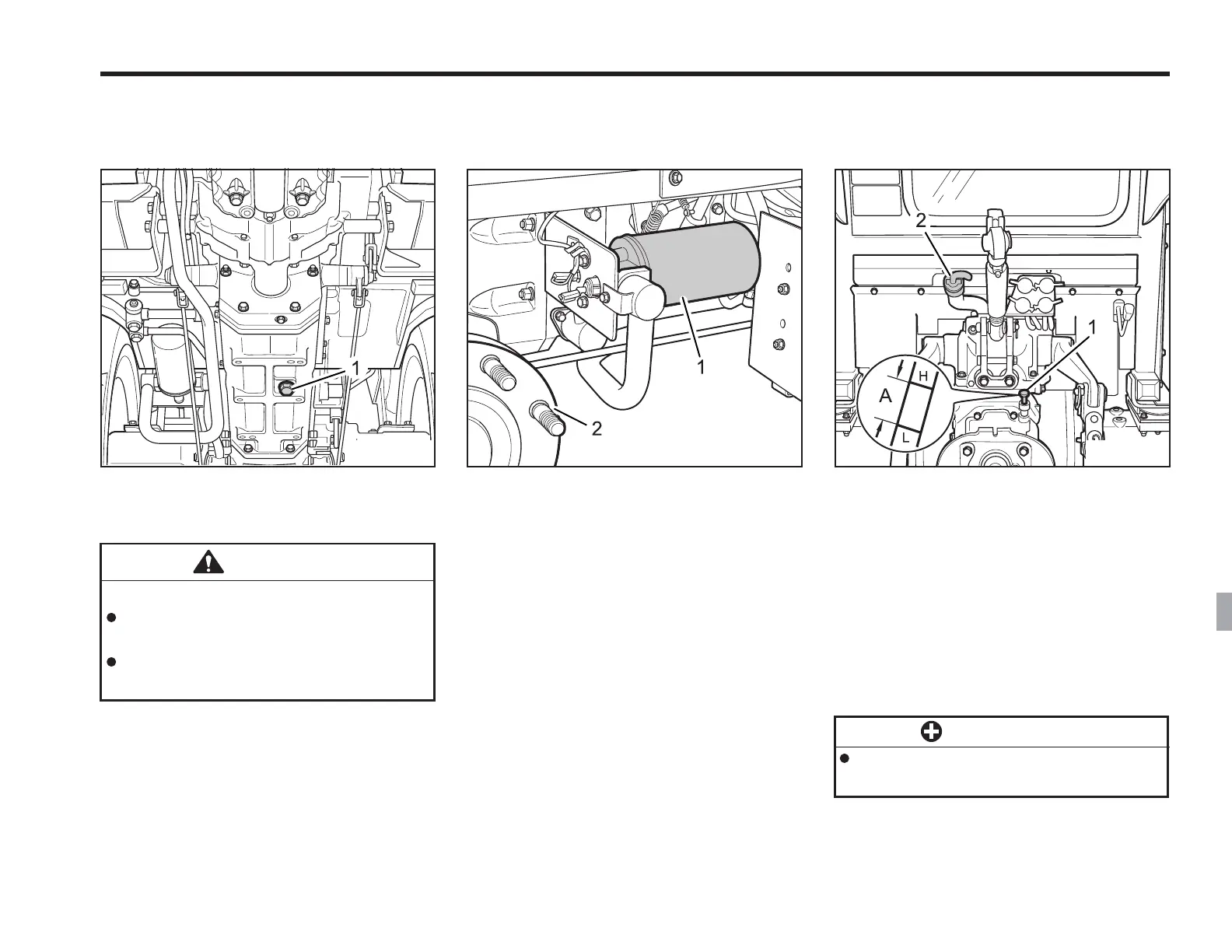

REPLACING HYDRAULIC OIL FILTER
(1) Oil Filter Cartidge (2) Rear Axle Shaft
CAUTION
To avoid personal injury:
Be sure to stop the engine before
changing the oil filter cartridge.
Allow engine to cool down suffi-
ciently, oil can be hot and can burn.
The oil filter cartridge must be cleaned
every 300 service hours. It is located to
the right of the tractor.
1. Remove the drain plug at the bottom of
the transmission case and drain the
oil completely into the oil pan.
2. After draining reinstall the drain plug.
(1) Drain Plug
3. Remove the oil filter.
4. Place a film of clean transmission fluid
of the rubber seal of the new filter.
5. Tighten the filter firmly until it contacts
the mounting surface. Then tighten the
filter, by hand, an additional half turn
only.
6. After the new filter is in place , fill the
transmission up with oil to the upper
line of the oil gauge.
7. After running the engine for a few
minutes, stop it and check the oil level
again, add oil to the prescribed level.
8. Make sure that the transmission fluid
doesn’t leak through the seal.
IMPORTANT
To prevent serious damage to the hydrau-
lic system, use only a KIOTI genuine filter.
(1) Gauge (2) Oil Filling Plug
(A) Oil Level is Acceptable Within This Range
