THREE-POINT HITCH & DRAWBAR 6-3
069O603A069O602A

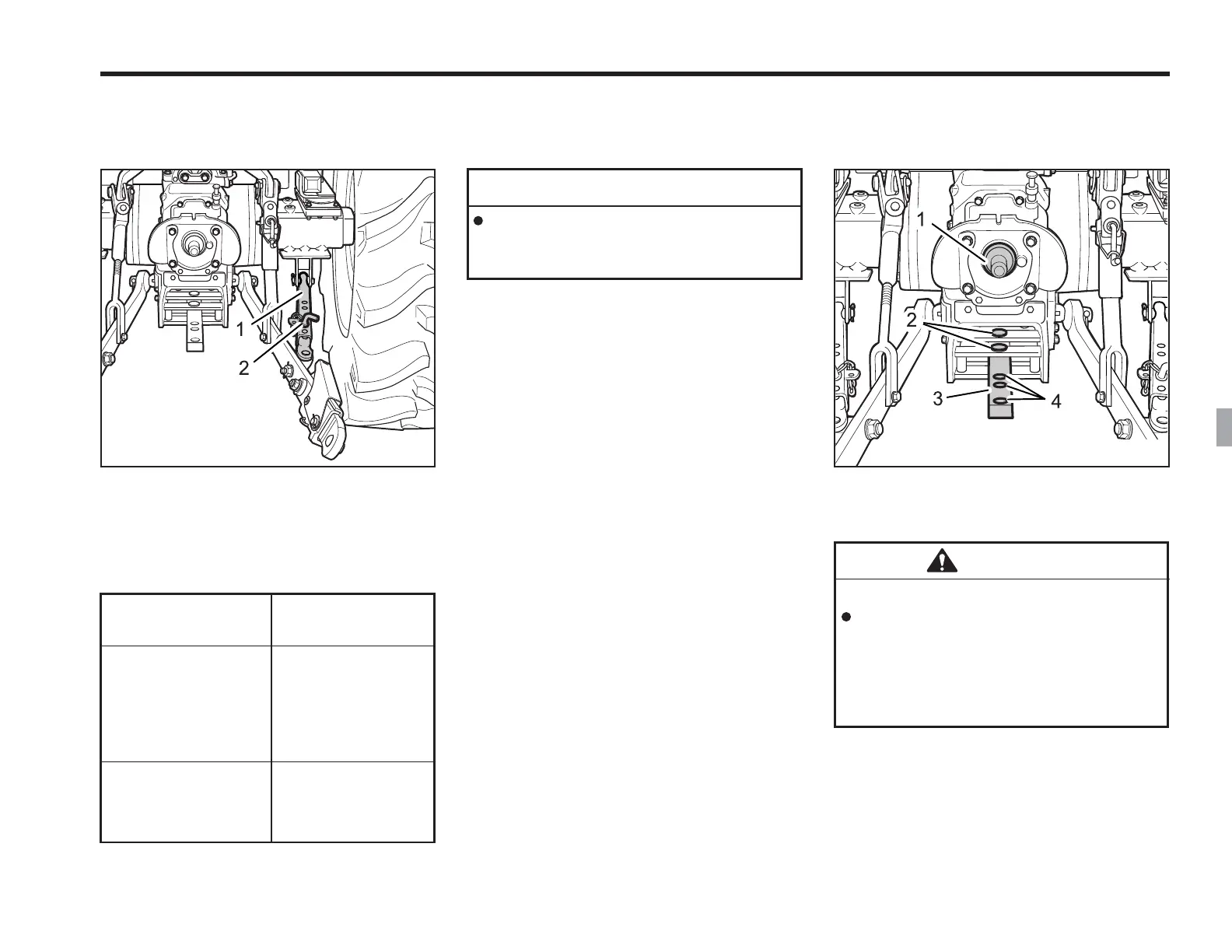

ADJUSTMENT OF CHECK LINKS
Adjust the Check Links to control hori-
zontal sway of the implement.
(1) Check Link (2) Pin
Type of implement
Plow, furrow,
subsoiler,
cultivator, ditcher
Rotary, mower,
hay rake, tender,
rider
Check Link adjust-
ment
Loosen until the
implement can be
moved 50 ~ 60 mm
(1.97 ~ 2.36 in.)
horizontally.
Tighter
NOTE
DRAWBAR
ADJUSTING DRAWBAR LENGTH
(1) PTO Shaft (3) Drawbar
(2) Drawbar Pin (4) Holes
WARNING
To avoid personal injury:
Never pull from the top link, the
rear axle or any point above the
drawbar. Doing so could cause
the tractor to tip over rearward
causing personal injury or death.
When towing an inplement, recommend
use of (4) hole in drawbar.
The drawbar load is referred to “IMPLE-
MENT LIMITATIONS” section.
The rear wheel must not interfere with
the check link or the lower link when
you control the check link.
