POSITION CONTROL
3-POINT HITCH CONTROL SYSTEM
The standard tractor has the hydraulic
control systems as below. Therefore,
use the most appropriate system for the
implement you are using.
3-POINT HITCH CONTROL SYSTEM
1. Position Control
2. Draft Control
3. Mixed Control
REMOTE HYDRAULIC CONTROL
SYSTEM
IMPORTANT
Do not operate until the engine is
warmed up. if operation is at-
tempted when the engine is still
cold, the hydraulic system may
be damaged.
If noises are heard when the
implement is lifting after the hy-
draulic control lever has been ac-
tivated, the hydraulic mechanism
is not adjusted properly. Unless
corrected, the unit will be dama-
ged. Contact your KIOTI Dealer for
adjustment.
This will control the working depth of 3-
point implements regardless of the
amount of pull required. Place the draft
control lever in the lowest position and
set the implement working depth with the
position control lever.
DRAFT CONTROL
This will control the pull of the 3-point
implement. As the load on the 3-point hitch
changes due to various soil conditions,
the draft control system automatically re-
sponds to these changes by either rais-
ing or lowering the implement slightly to
maintain a constant pull.
Place the position control lever in the low-
est position and set the implement pull
with the draft control lever.

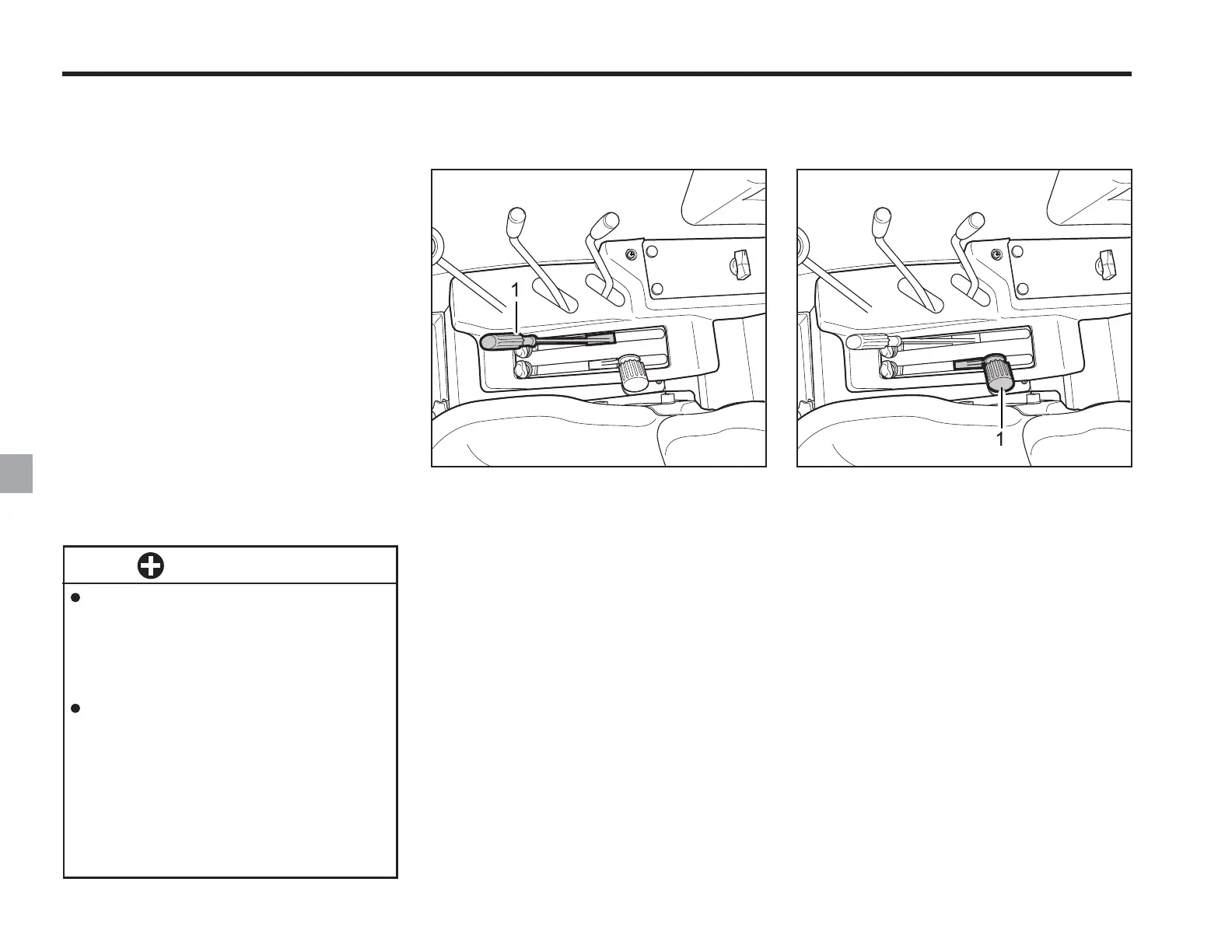

(1) Position Control Lever (1) Draft contol Lever
To Next Page
