TP-6881 7/15 119Section 7 Drawings and Diagrams
Section 7 Drawings and Diagrams
Figure 7-2 lists the wiring diagram numbers and page
numbers.
Note: The reduced minimum clearance from a
structure contained in ADV-- 8774 (Figure 7-8)
only applies to generators that are compliant with
clause ( 2) of section 4.1.4 of NFPA 37. To verify
that the generator is compliant, check the
Specification Number located on the generator
name plate. See Figure 7-1. If the name plate
displays one of the following specification
numbers, then the generator is compliant with
clause (2) of section 4.1.4 of NFPA 37 and the
reduced clearance in ADV--8774 (Figure 7-8) will
apply.
D 8RESV: GM88347--GA7 or higher
D 8RESVL: GM88347--GA10 or higher
D 10RESV: GM88347--GA8 or higher
D 10RESVL: GM88347--GA11 or higher
D 12RESV: GM88347--GA9 or higher
D 12RESVL: GM88347--GA12 or higher
Note: If the generator set name plate does not
display one of the specification numbers set
forth above, refer to ADV-8539 (Figure 7-5)
for the minimum clearance from a structure.
1. Specification
number
8RESV-SA1
GM88347-GA7
XXXXXXXX
XXXXXXXX
29
1
3600
12V
NAT GAS
STANDBY
240
2F3
H
07/31/2015
7.00
7.00
1.0
60
Service Duty
Voltage
Alt Model
Insulation
MFG Date
Amps
Phase
RPM
Battery
Fuel
kW
kVA
Hz
Genset Model
Spec Number
Serial Number
Material Number
PF
1

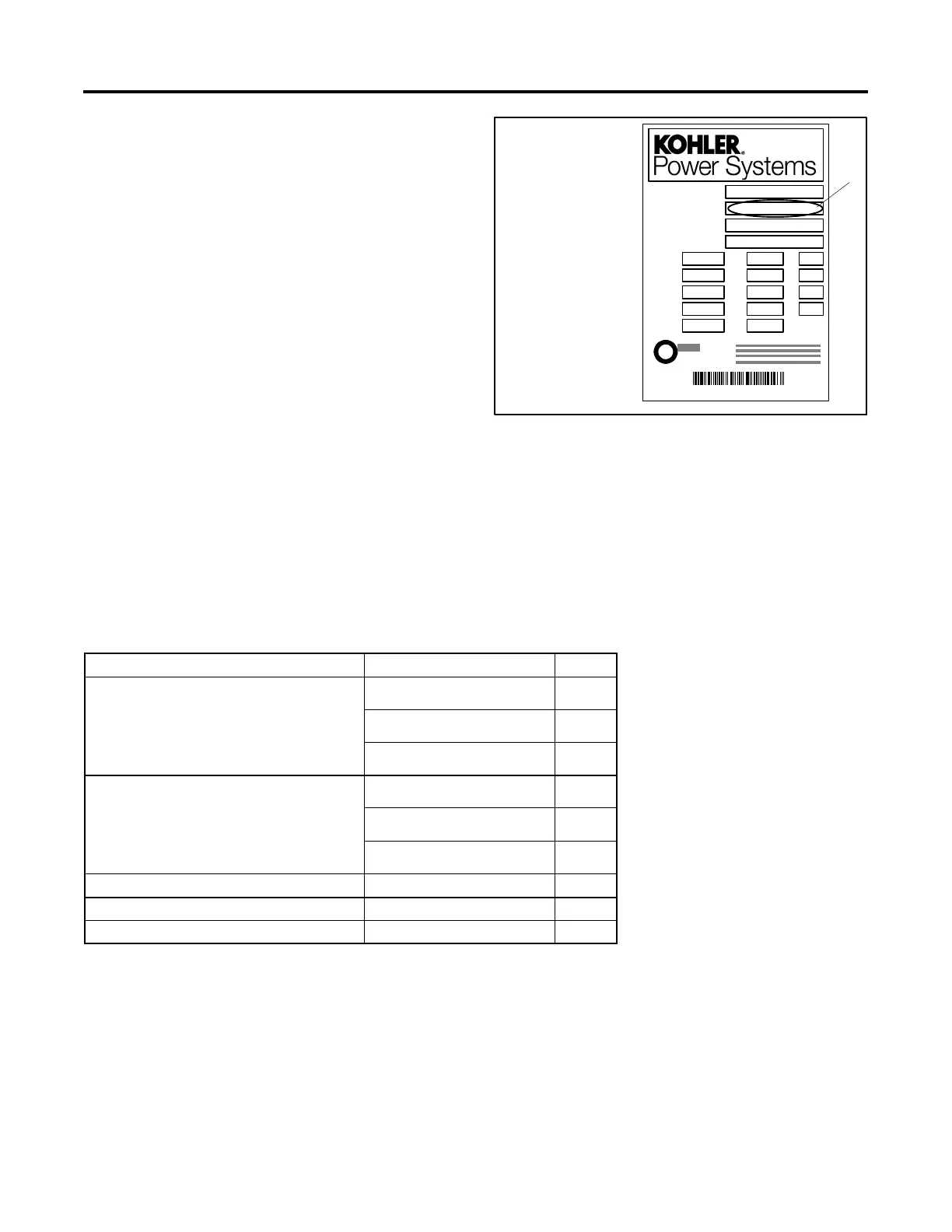

Figure 7-1 Name Plate
Dimension Drawing Drawing Number Page
Dimension drawing, specification number
GM88347--GA1 to GM88347--GA6.
ADV--8539, Sheet 1 120
ADV--8539, Sheet 2 121
ADV--8539, Sheet 3 122
Dimension drawing, specification number
GM88347--GA7 and higher.
ADV--8774, Sheet 1 123
ADV--8774, Sheet 2 124
ADV--8774, Sheet 3 125
Wiring Diagram Description Drawing Number Page
Schematic Diagram ADV--8552 126
Point-to-Point Wiring Diagram GM89012 127
Figure 7-2 Wiring Diagrams and Schematics
