31. HANDLING AUTO-GREASING SYSTEM
3. Method of adjusting operating time (Red dial)

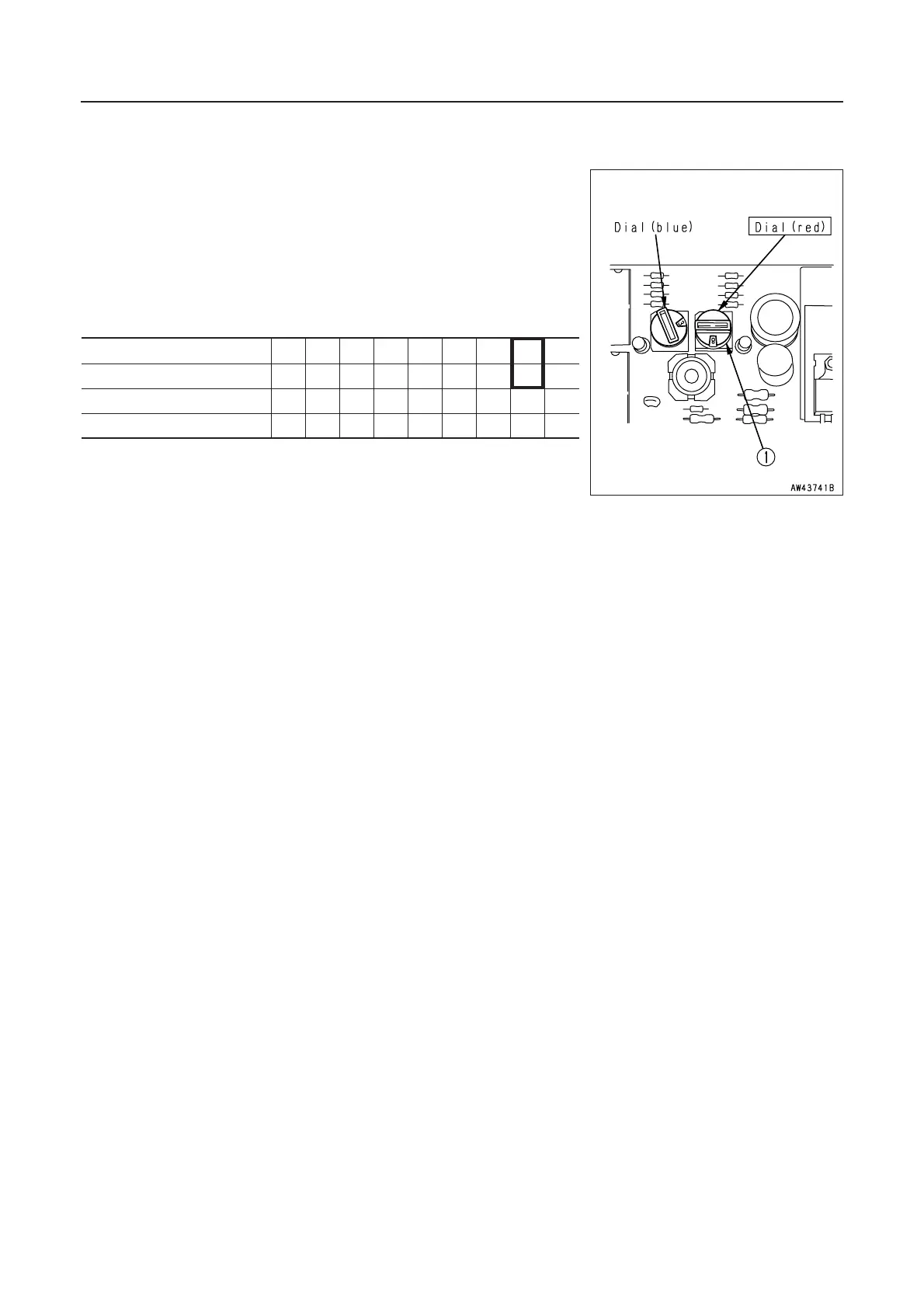

To adjust the operating time, turn red rotary switch 1 in the
figure at right according to the following table. (Normally, fix this
dial to position 8 (60 seconds).)
1) Set the red dial to division 8 (For normal operation).
2) When greasing is finished and the greasing pump is bal-
anced, the greasing pump stops even if within the specified
operating time (60 sec).
Position of switch 1 2 3 4 5 6 7 8 9
Operating time of pump (sec)
7.5 15 22.5 30 37.5 45 52.5 60 67.5
Position of switch A B C D E F
Operating time of pump (sec)
75 82.5 90 97.5 105 112.5
