2-22
11. EXPLANATION OF COMPONENTS

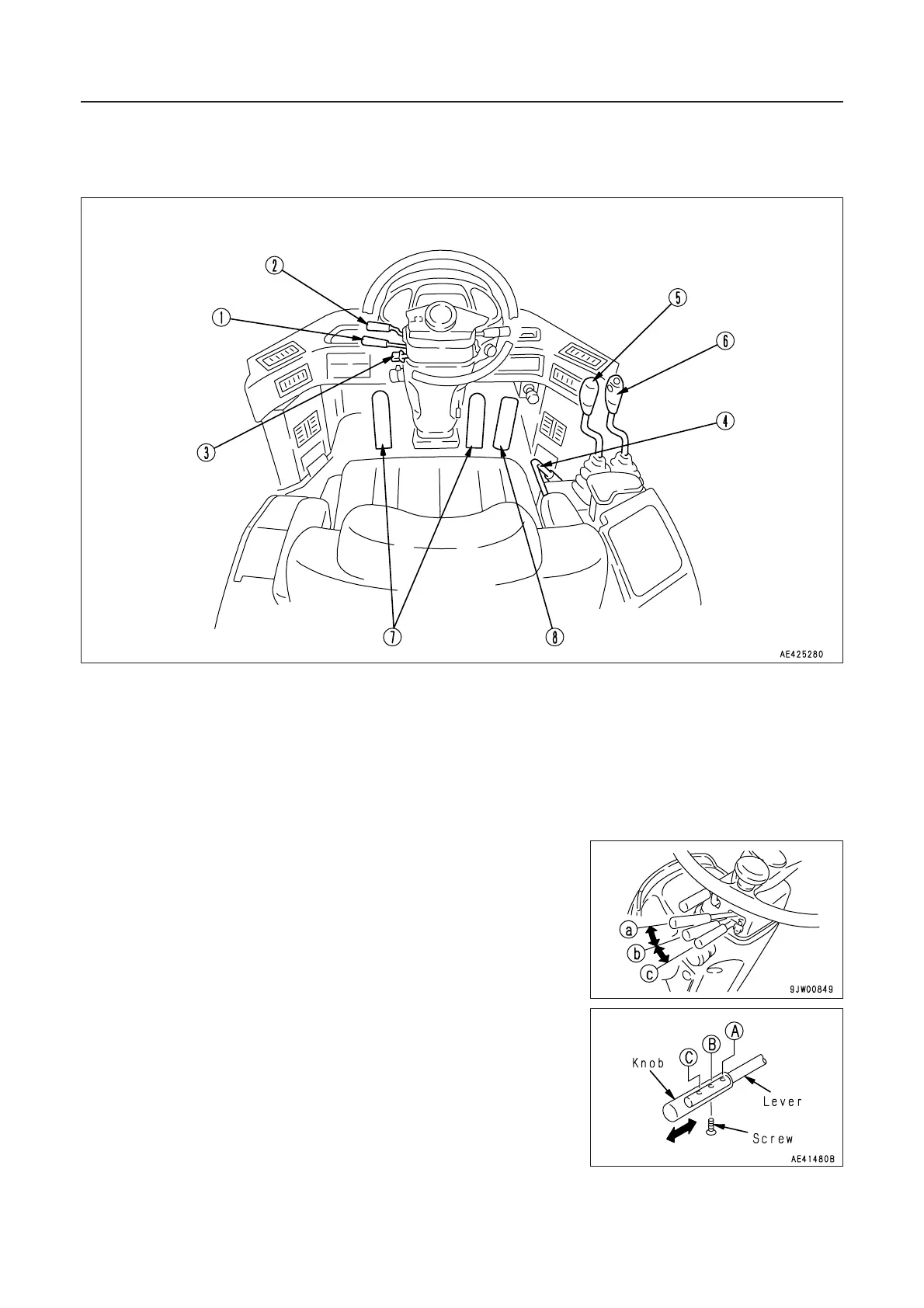

11.3 CONTROL LEVERS, PEDALS
1. SPEED CONTROL LEVER
This lever controls the travel speed of machine.
This machine has a 3-FORWARD, 3-REVERSE speed transmis-
sion.
Place the speed control lever in a suitable position to obtain the
desired speed range.
1st and 2nd speeds are used for working.
3rd speed is used for traveling.
However, when the speed control lever stopper is being used, it
is impossible to shift to 3rd. Disengage the speed control lever
stopper before trying to shift gear.
Position a: 1st
Position b: 2nd
Position c: 3rd
REMARK
The length of the lever can be adjusted to 3 stages (positions A,
B, C). To adjust the length, remove the screw at the bottom of the
lever knob, slide the knob to the desired position, then tighten the
screw again.
(The lever is installed to position B when it is shipped from the
factory.)
To Next Page
