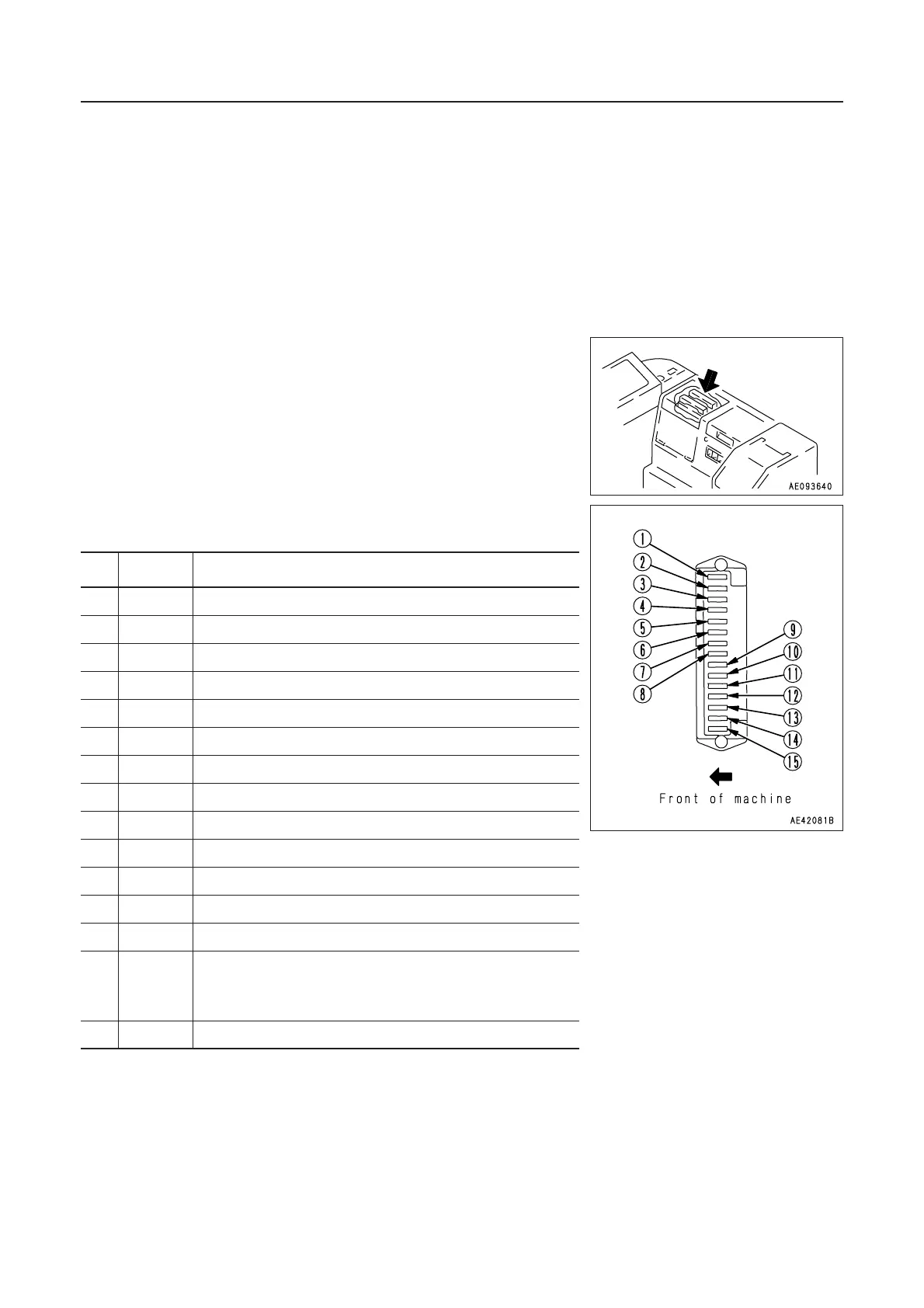

2-29
11. EXPLANATION OF COMPONENTS
Fuse
No.
capacity
Name of circuit
1 20A Main lamp circuit
2 20A Backup lamp, brake lamp
3 10A Turn signal indicator lamp
4 10A R.H. head lamp
5 10A L.H. head lamp
6 10A R.H. side clearance lamp
7 10A L.H. side clearance lamp
8 10A Parking brake
9 10A Transmission control
0 10A Instrument panel
A 10A Work equipment positioner
B 10A Starting switch
C 20A Hazard lamp
D 10A Air suspension seat (Machine equipped without electri-
cal governor engine),
Spare (Machine equipped with electrical governor
engine)
E 10A Auto-greasing (if equipped)
11.13 FUSE
NOTICE
Before replacing a fuse, be sure to turn off the starting switch.
The fuses protect the electrical equipment and wiring from
burning out.
If the fuse becomes corroded, or white powder can be seen, or
the fuse is loose in the fuse holder, replace the fuse.
Replace a fuse with another of the same capacity.
11.13.1 FUSE CAPACITY AND NAME OF CIRCUIT
Fuse box I
