5-99
38. SOUND PACKAGE SPECIFICATION

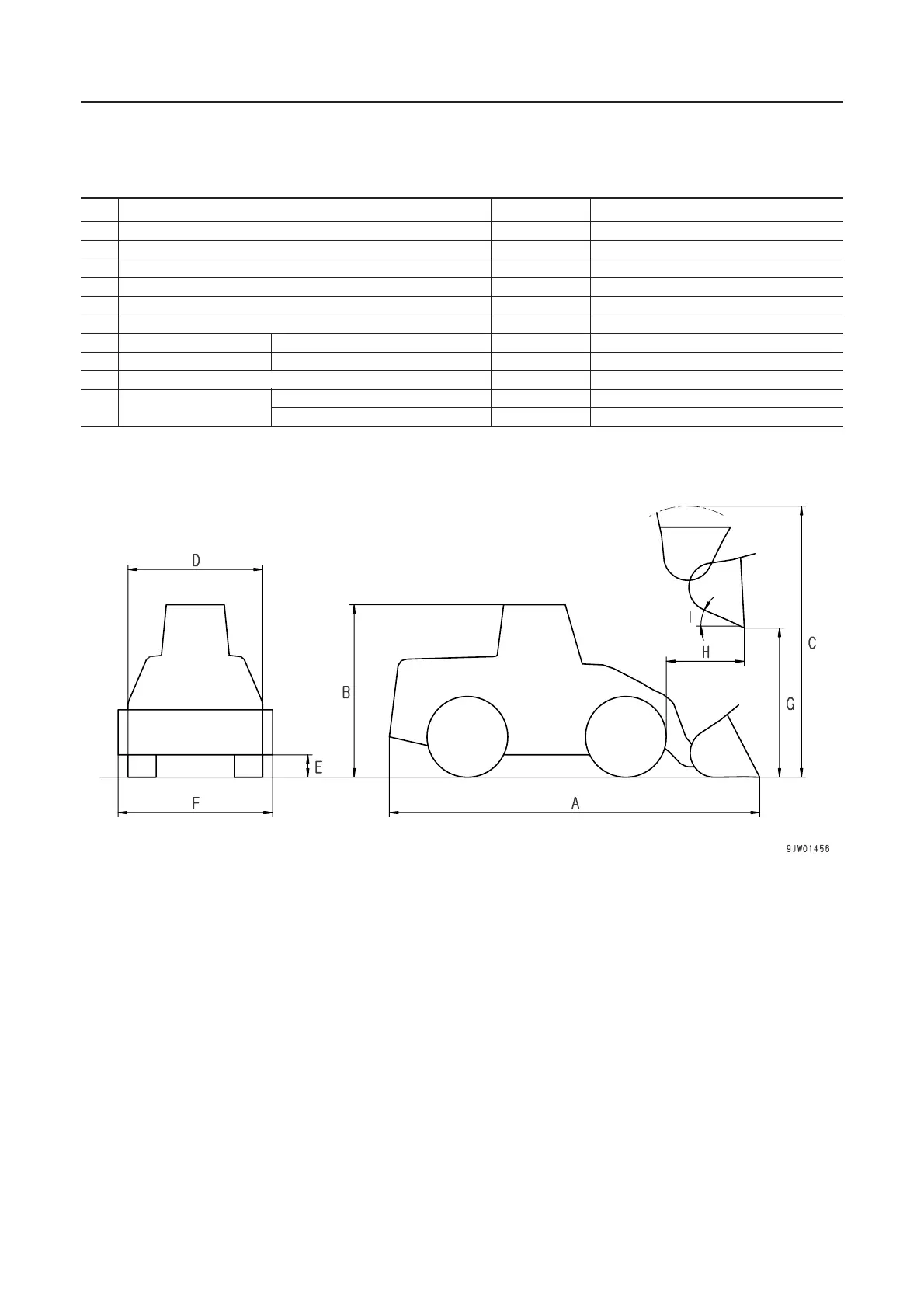

38.3 DIMENSIONS
Item Unit
A Overall length mm (ft in) 14275 (46’ 10”)
B Overall height (with ROPS) mm (ft in) 5275 (17’ 4”)
C Bucket overall height (when bucket lifted) mm (ft in) 9680 (31‘ 9”)
D Overall width mm (ft in) 4585 (15’ 1”)
E Min. ground clearance mm (ft in) 550 (1’ 10”)
F Bucket width [Sweeper wing] mm (ft in) 4760 (15’ 7”) [5045 (16’ 7”)]
G Clearance Tip of bucket [Tip of tooth] mm (ft in) 5020 (16’ 6”) [4640 (15’ 3”)]
H Reach Tip of bucket [Tip of tooth] mm (ft in) 2450 (8’) [2215 (7’ 3”)]
I Dump angle degrees 45
Min. turning radius
Outside of chassis mm (ft in) 11000 (36’ 1”)
Center of outside tire mm (ft in) 9200 (30’ 2”)
