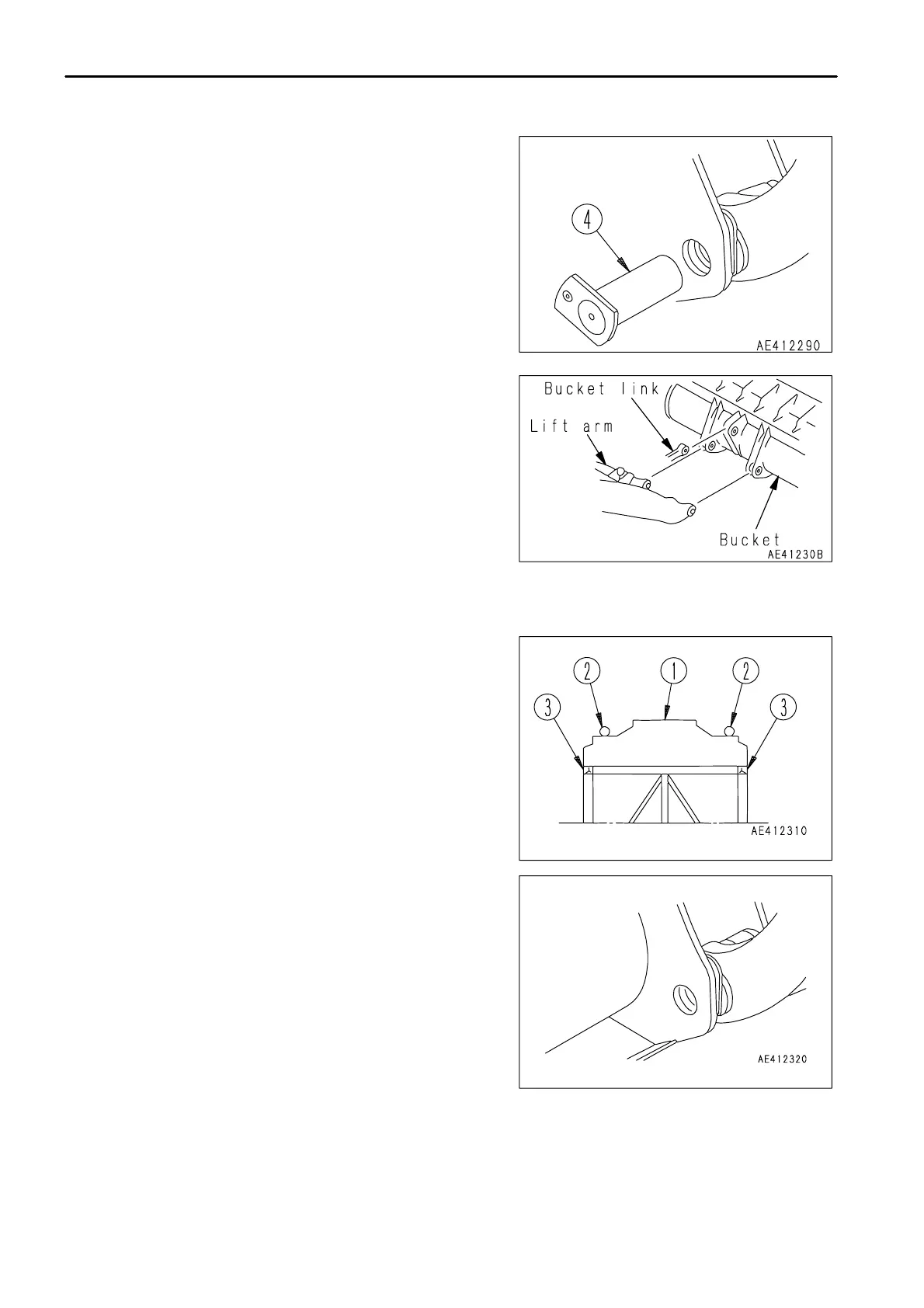

4. Pull out and remove bucket hinge pin (4) on both sides of the
bucket.
5.
Disconnect the lift arm and bucket.
INSTALLING THE BUCKET
1.
Set cord ring (2) on top of lift arm boss (1) as shown in the
diagram.
After completion of assembly of the bucket and adjustment
with shims in step 6, move the cord ring down to the groove.
2.
Coat dust seal lip portion (3) with grease.
3.
Align the left and right bucket pin holes.
3 - 74
