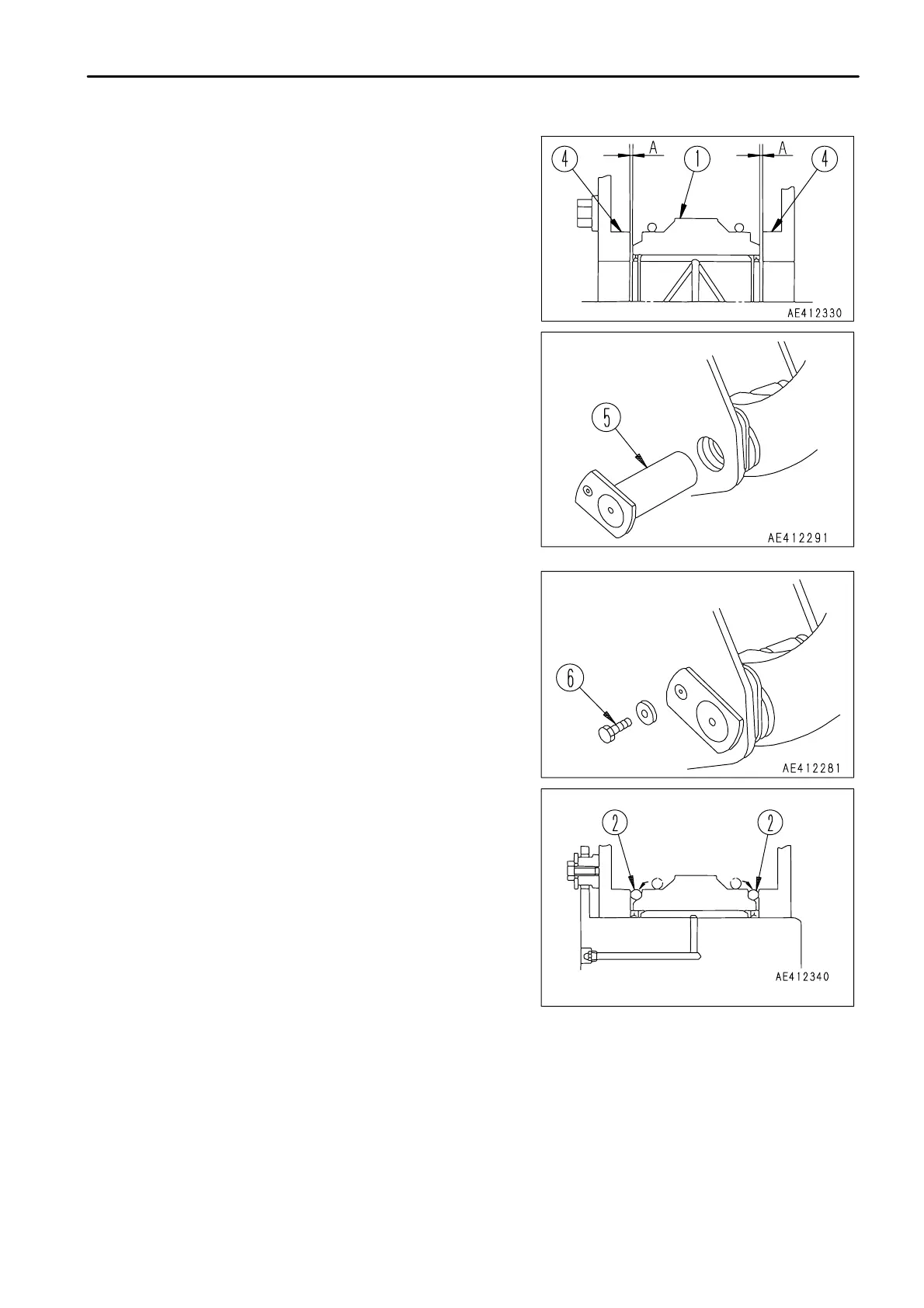

4. Select the number of shims so that clearances "A" between
bucket hinge boss (4) and lift arm boss (1) are less than 1.0 mm
(0.0394 in).
5. Assemble the shims selected in Step 4, align the pin holes,
then insert bucket hinge pin (5).
Coat with grease to prevent damage to the dust seal when
inserting the bucket hinge pin.
Use a bucket hinge pin that has a grease hole.
6.
Install mounting bolt (6).
7. Move cord ring (2) down to the groove.
8.
Use the same procedure as in steps 1 to 7 to install the bucket link pin.
Assemble a pin that has no grease hole at the bucket link.
9.
Coat the bucket hinge pin and bucket link pin with grease. For details, see "LUBRICATING (PAGE 4-45)".
For details of removing and installing the bucket, please contact your Komatsu distributor.
3 - 75
