MAINTENANCE
SERVICE PROCEDURE

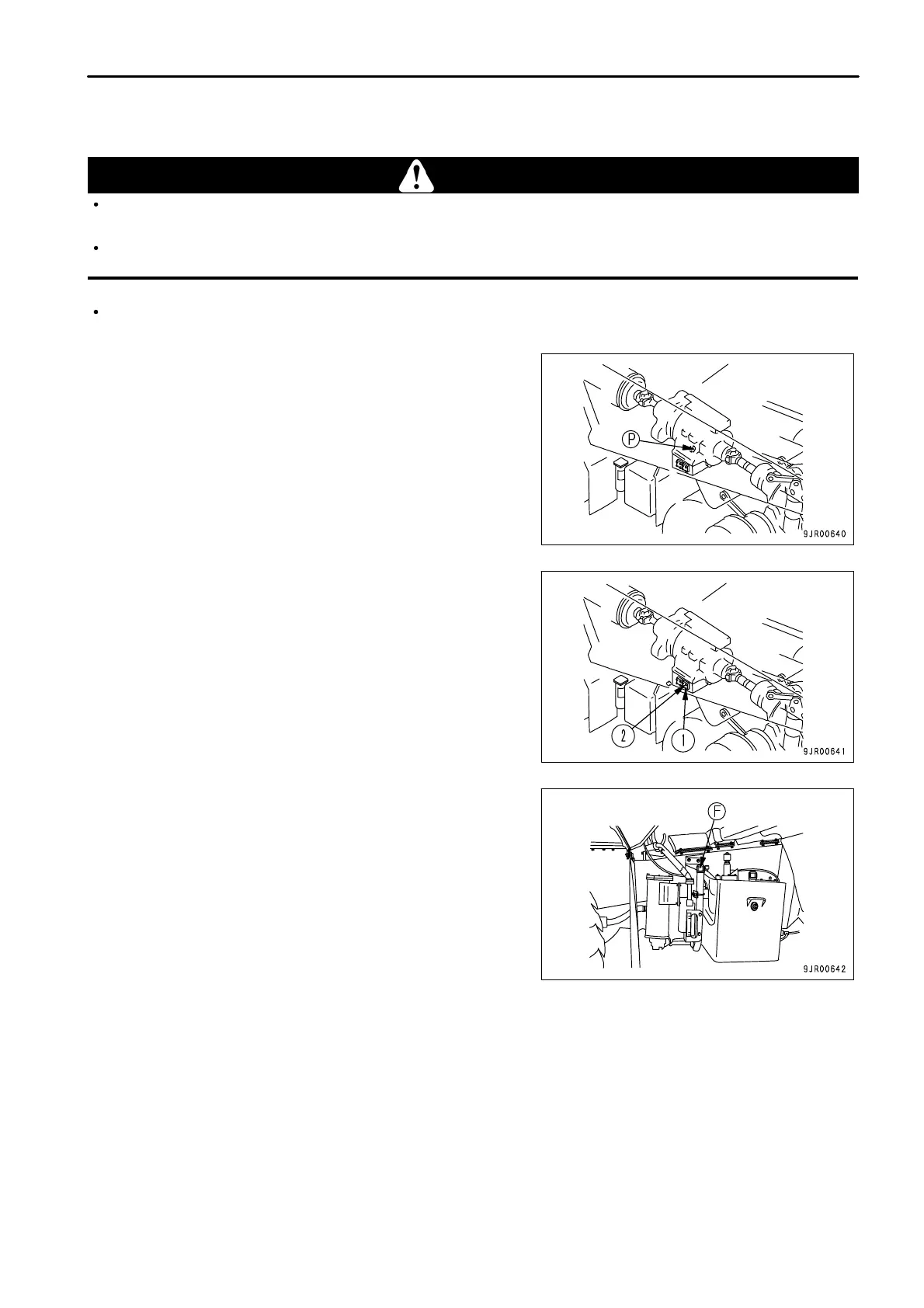

CHANGE OIL IN TRANSMISSION CASE, CLEAN TRANSMISSION CASE STRAINER
WARNING
The parts and oil are at high temperature immediately after the engine is stopped, and may cause burns. Wait for the
temperature to go down before starting the work.
When removing the oil filler cap, turn it slowly to release the internal pressure, then remove it.
Refill capacity: 90 liters (23.78 US gal)
1.
Set the container to catch the oil directly under the drain plug
(P).
Remove drain plug (P), drain the oil, then tighten the plug
again.
2.
Remove bolt (1), then remove cover (2) and take out the
strainer.
3.
Remove any dirt stuck to the strainer, then wash in clean diesel
fuel or flushing oil. If the strainer is damaged, replace it.
4. After installing the strainer, add oil through oil filler (F) to the
specified level.
5. After adding oil, check that the oil is at the specified level. See
"CHECK OIL LEVEL IN TRANSMISSION CASE, ADD OIL
(PAGE 3-65)".
4 - 65
To Next Page
