OPERATION
EXPLANATION OF COMPONENTS

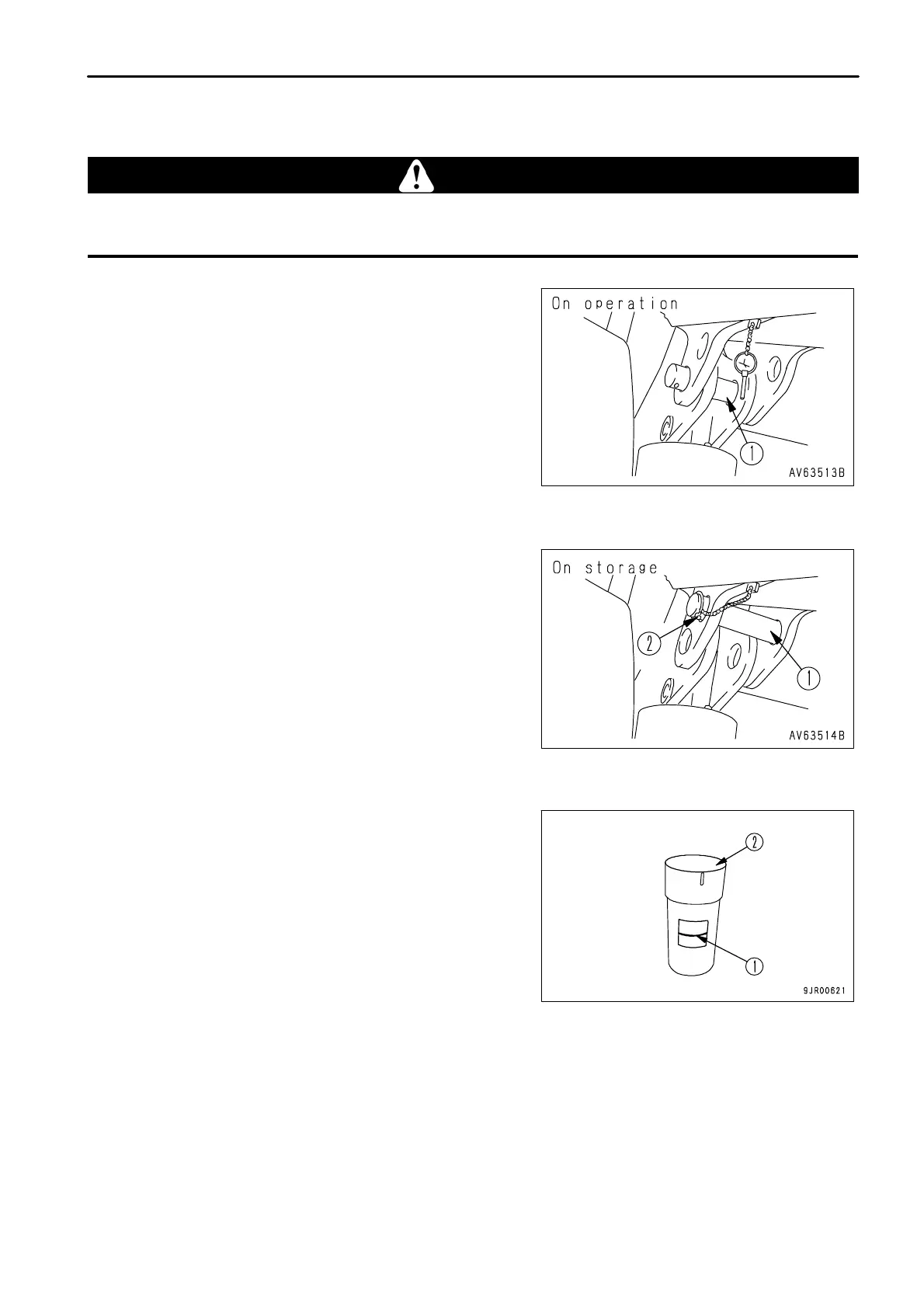

BODY PIVOT PIN
WARNING
When raising the dump body to inspect the machine, always place the dump lever at the HOLD position, apply the lock, and then
use the body pivot pins.
This is a safety device for the dump body, and is used when
carrying out inspection or maintenance with the dump body raised.
Raise the dump body fully, insert body pivot pins (1). Always insert
the body pivot pins on both sides.
STOWING BODY PIVOT PIN
The safety pins are stored at the bottom rear of the dump body.
Insert body pivot pins (1), then insert lock pins (2) to stow in
position.
DUST INDICATOR
This device indicates clogging of the air cleaner.
Depending on the degree of clogging of the element, red line (1)
appears in the transparent portion. If red line (1) indicates 0.0075
MPa (30 INCHES H
2
O) (0.076 kg/cm
2
, 1.1 PSI), clean the element
immediately.
After cleaning, press top portion (2) of the indicator to return red
line (1) to its original position.
