HANDLING PAYLOAD METER
HANDLING PAYLOAD METER
There are two types of payload meter: a card type and a printer type. The explanation for the payload meter given
here is for the printer type. For details of handling the card type payload meter, see the separate operation manual
for payload meter II.
The payload meter inputs the signals from the pressure sensors, clinometer, body float detection, neutral detection,
and other signals, and calculates the weight of the load using its built-in micro computer. It displays the results on
the panel and also uses the external display lamps to show the condition of the load.
In addition, the data saved in memory can be printed out together with the date the load was dumped and the
number of loads.

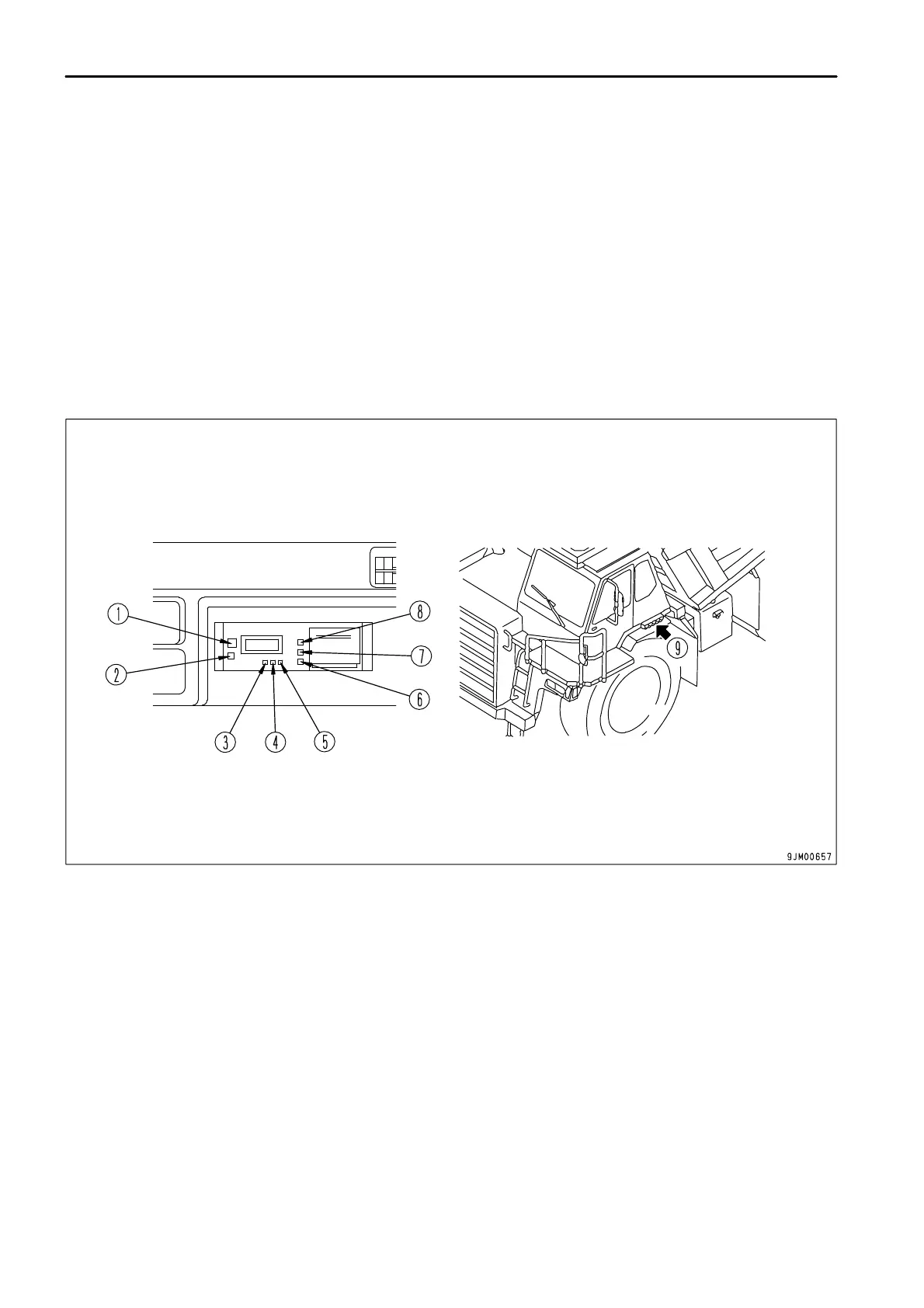

NAME OF PARTS
(1)
(2)
(3)
(4)
(5)
Calibration switch
Night lighting dimmer switch
Clock setting adjustment switch
Clock adjustment shift switch
Clock adjustment increase switch
(6)
(7)
(8)
(9)
Memory data clear switch
Printer feed switch
Print switch
External display lamps
